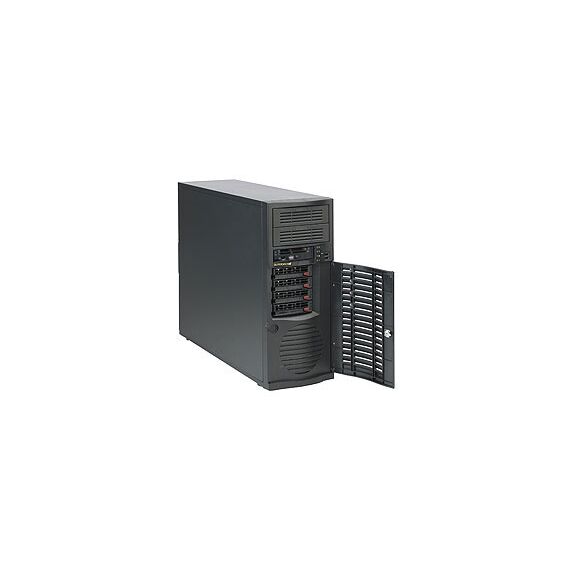

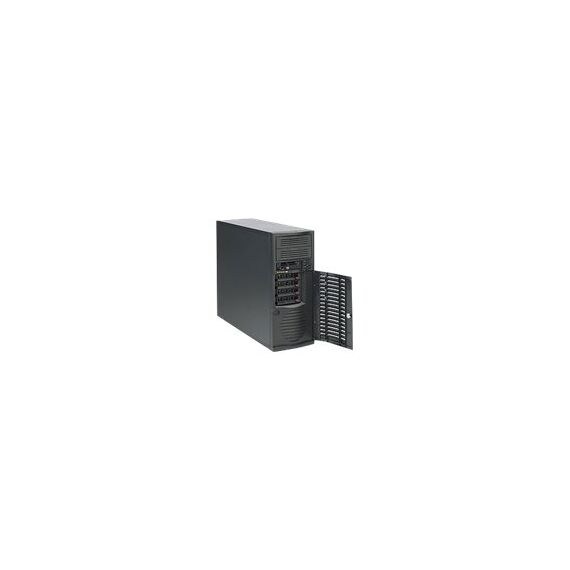

Supermicro SC733 TQ-668B / Tower / extended ATX / SATA/SAS / hot-swap 668 Watt / black / USB | CSE-733TQ-668B
Supermicro SC733 TQ-668B / Tower / extended ATX / SATA/SAS / hot-swap 668 Watt / black / USB | CSE-733TQ-668B
€582.16 inc. VAT
CSE-733TQ-668B
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- SAS/SATA backplane for hot-swappable drives
- Front HDD door lock
- External HDD drive bays
Product Specification
| Form Factor | Tower |
| Max Mainboard Size | Extended ATX |
| Supported Motherboards | ATX, microATX, Extended ATX |
| Front Accessible Bays Qty | 3 |
| Hot-Swap Bays Qty | 4 |
| Server Swappable Drive Interface | SATA/SAS |
| Built-in Devices | Led panel |
| Colour | Black |
| Cooling System | Rear: 120 x 120 x 38 mm fan x 1 / exhaust / 4000 rpm / Pulse-width modulation (PWM) support Front: 92 x 92 x 25 mm fan x 1 / 4200 rpm / Pulse-width modulation (PWM) support, hot-swap |
| System Cabinet Features | Front panel door, SCSI Enclosure Services (SES2) support |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Bays | 4 (total) / 4 (free) x hot-swap - 3.5" 2 (total) / 2 (free) x front accessible - 5.25" 1 (total) / 1 (free) x front accessible - 3.5" |
| Expansion Slots | 7 x full-length, full-height |
| Interfaces | 2 x USB 2.0 |
| Miscellaneous | Miscellaneous |
| Included Accessories | SATA backplane |
| Compliant Standards | FCC Class B certified, UL, TUV, BSMI, cUL, CB, CCC, CE/EMC |
| Power | Power |
| Power Device | Power supply |
| Installed Qty | 1 |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Power Provided | 668 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Dimensions & Weight | Dimensions & Weight |
| Width | 17.8 cm |
| Depth | 53.1 cm |
| Height | 42.6 cm |
| Weight | 17.24 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 61.5 cm |
| Shipping Depth | 67.1 cm |
| Shipping Height | 30 cm |
| Shipping Weight | 18.14 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 8 - 90% (non-condensing) |
Features - SUPERMICRO - CSE-733TQ-668B
More Details
Product Code
07:106703
EAN Code
0672042295951
Manufacturer
SUPERMICRO
