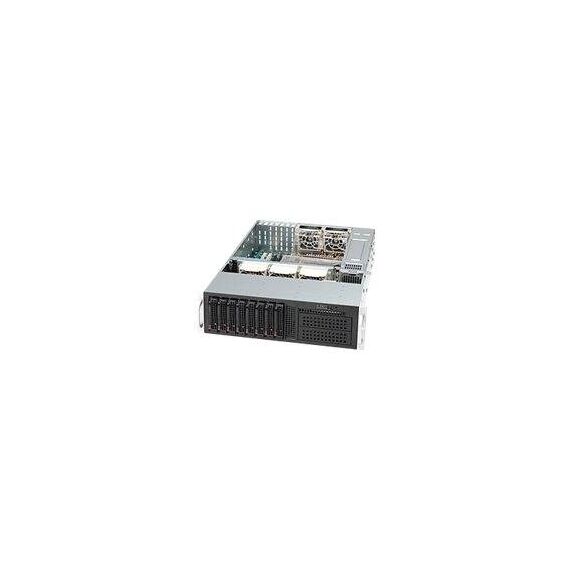

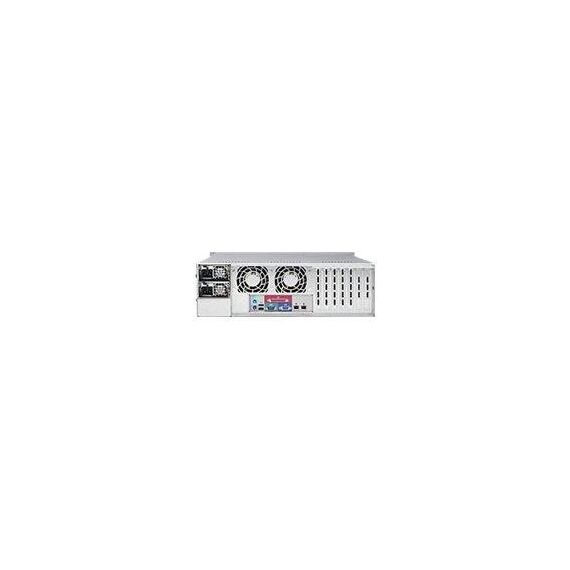

Supermicro SC835 TQC-R802B / Rack-mountable / 3U / extended ATX / SATA/SAS / hot-swap 800 Watt / black | CSE-835TQC-R802B
CSE-835TQC-R802B
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- Power LED
- System reset button
- Full-length expansion slots
Product Specification
| Form Factor | Rack-mountable - 3U |
| Max Mainboard Size | Extended ATX |
| Supported Motherboards | ATX, Extended ATX |
| Front Accessible Bays Qty | 3 |
| Hot-Swap Bays Qty | 8 |
| Server Swappable Drive Interface | SATA/SAS |
| Colour | Black |
| Cooling System | Internal: 80 x 80 x 38 mm fan x 3 / 7000 rpm / Pulse-width modulation (PWM) support, hot-swap ¦ Rear: 80 x 80 x 32 mm fan x 2 / exhaust / 6700 rpm / Pulse-width modulation (PWM) support, hot-swap |
| System Cabinet Features | Chassis intrusion detection |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Bays | 8 (total) / 8 (free) x hot-swap - 3.5" ¦ 2 (total) / 2 (free) x front accessible - 5.25" ¦ 1 (total) / 0 (free) x front accessible - 5.25" Slim Line |
| Expansion Slots | 7 x full-length, full-height |
| Miscellaneous | Miscellaneous |
| Included Accessories | Mounting rails, SAS / SATA backplane, air shroud |
| Compliant Standards | FCC Class A certified, UL, TUV, BSMI, cUL, CB, CCC, EMC |
| Power | Power |
| Power Device | Power supply |
| Power Redundancy | Yes |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Power Provided | 800 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Dimensions & Weight | Dimensions & Weight |
| Width | 43.7 cm |
| Depth | 64.7 cm |
| Height | 13.2 cm |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 67.6 cm |
| Shipping Depth | 86.1 cm |
| Shipping Height | 33 cm |
| Shipping Weight | 34.02 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - labour - 3 years ¦ Limited warranty - parts - 1 year |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 8 - 90% (non-condensing) |
Features - SUPERMICRO - CSE-835TQC-R802B
More Details
Product Code
3D31955
EAN Code
0672042342631
Manufacturer
SUPERMICRO
