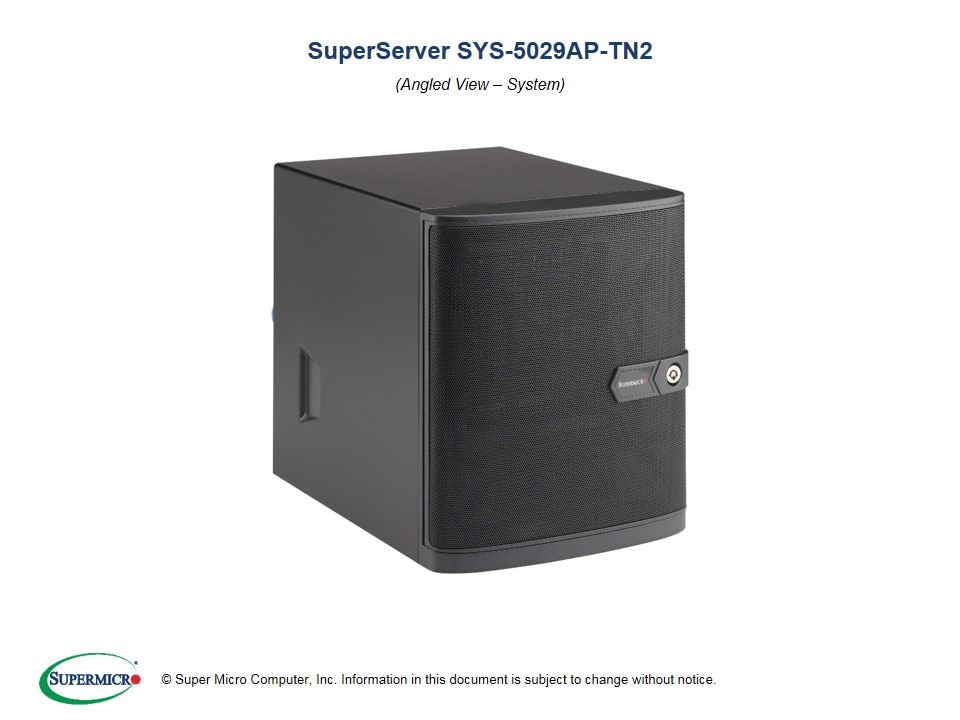

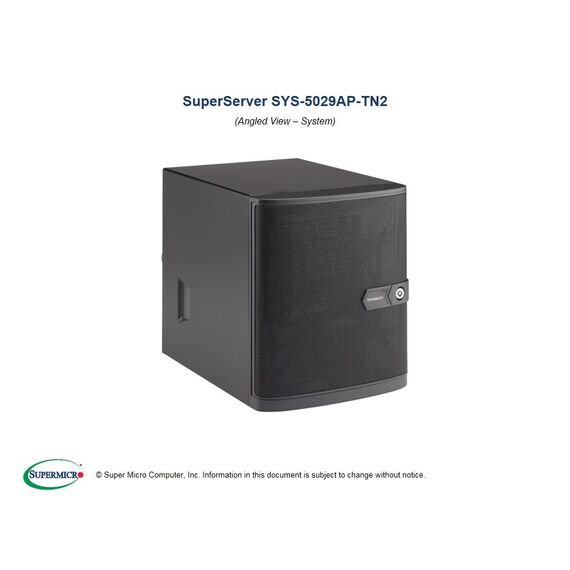

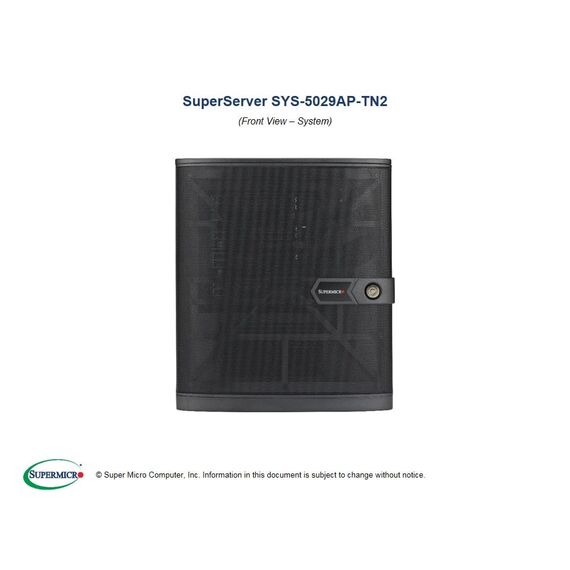

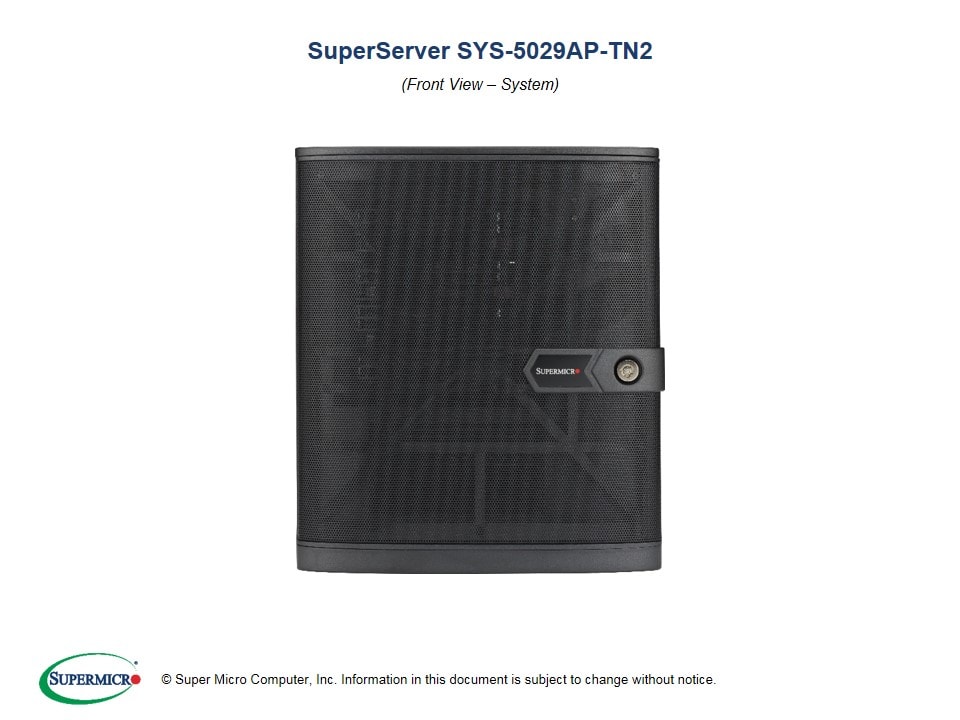

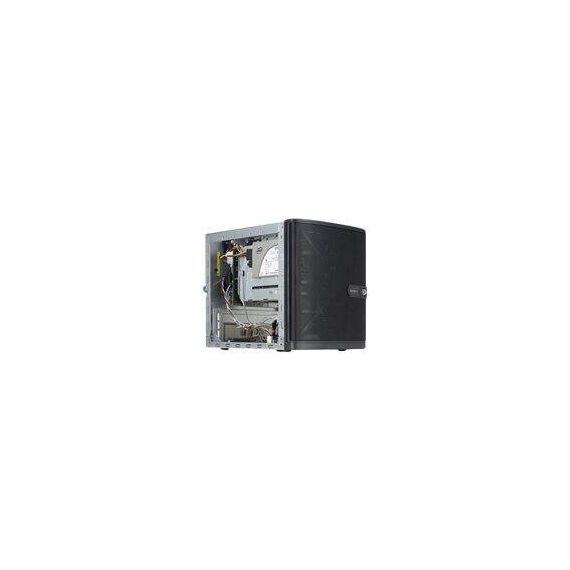

Supermicro SuperServer 5029AP-TN2 - Server - MT - 1 x Atom x5 E3940 - RAM 0 GB - SATA - hot-swap 3.5" bay(s) - no HDD - HD Graphics - GigE | SYS-5029AP-TN2
Please sign in so that we can notify you about a reply
Product Specification
| Type | Server |
| Product Form Factor | Mini tower |
| Built-in Devices | SAS / SATA backplane with SES2 |
| Internal Bays Qty | 1 |
| Front Accessible Bays Qty | 1 |
| Hot-Swap Bays Qty | 4 |
| Colour | Black |
| Processor / Chipset | |
| CPU | Intel Atom x5 E3940 |
| CPU Qty | 1 |
| CPU Upgradability | Not upgradable |
| RAM | |
| Installed Size | 0 GB / 8 GB (max) |
| Technology | DDR3 SDRAM - non-ECC |
| Form Factor | SO-DIMM 204-pin |
| Slots | 1 (Total) / 1 (empty) |
| Features | Registered |
| Hard Drive | |
| Type | No HDD |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Storage Controller Name | Marvell 88SE9230 |
| Channel Qty | 4 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Storage Controller (2nd) | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 2 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel HD Graphics |
| Video Interfaces | VGA, HDMI, DisplayPort |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Intel I210-AT |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0 |
| Features | ACPI support |
| Expansion / Connectivity | |

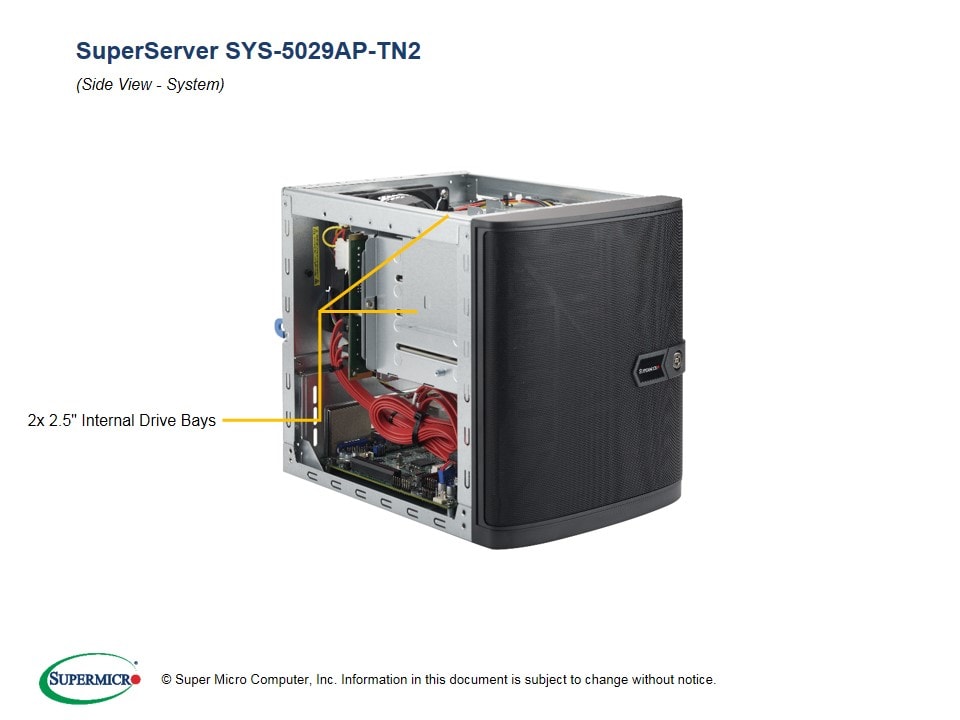

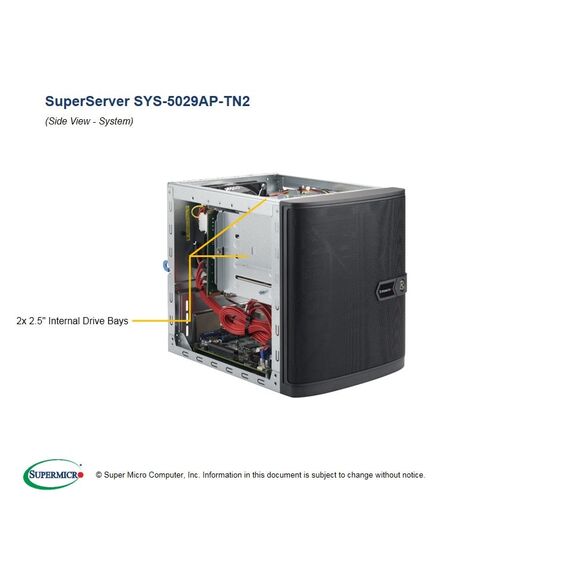

| Bays | 4 (total) / 4 (free) x hot-swap 3.5" ¦ 1 (total) / 1 (free) x internal 2.5" ¦ 1 (total) / 1 (free) x external 5.25" Slim Line / 2.5" shared |
| Slots | 1 (total) / 1 (free) x SO-DIMM 204-pin ¦ 1 (total) / 1 (free) x PCIe 2.0 x8 (x2 mode) ¦ 1 (total) / 1 (free) x M.2 Card ¦ 1 (total) / 1 (free) x Mini PCIe 2.0/mSATA |

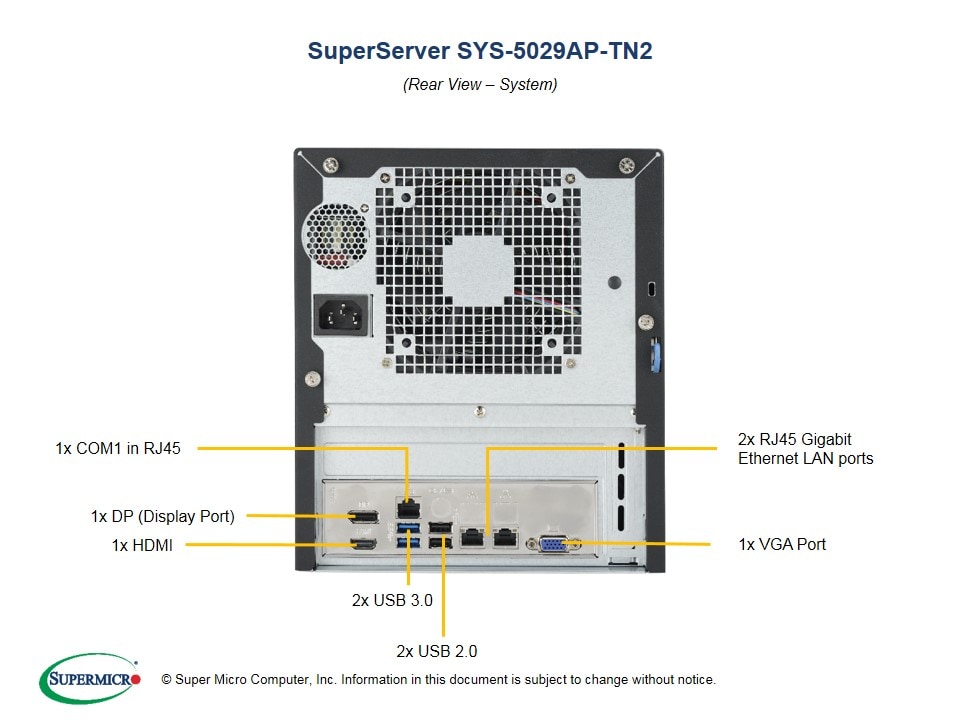

| Interfaces | 2 x LAN (Gigabit Ethernet) ¦ 5 x USB 2.0 (2 front, 2 rear, 1 internal) ¦ 2 x USB 3.0 ¦ 1 x VGA ¦ 1 x DisplayPort ¦ 1 x HDMI |
| Miscellaneous | |
| Cables Included | Serial ATA cable (6 pcs.) |
| Compliant Standards | RoHS |
| Power | |
| Device Type | Power supply |
| Nominal Voltage | AC 120/230 V (50 - 60 Hz) |

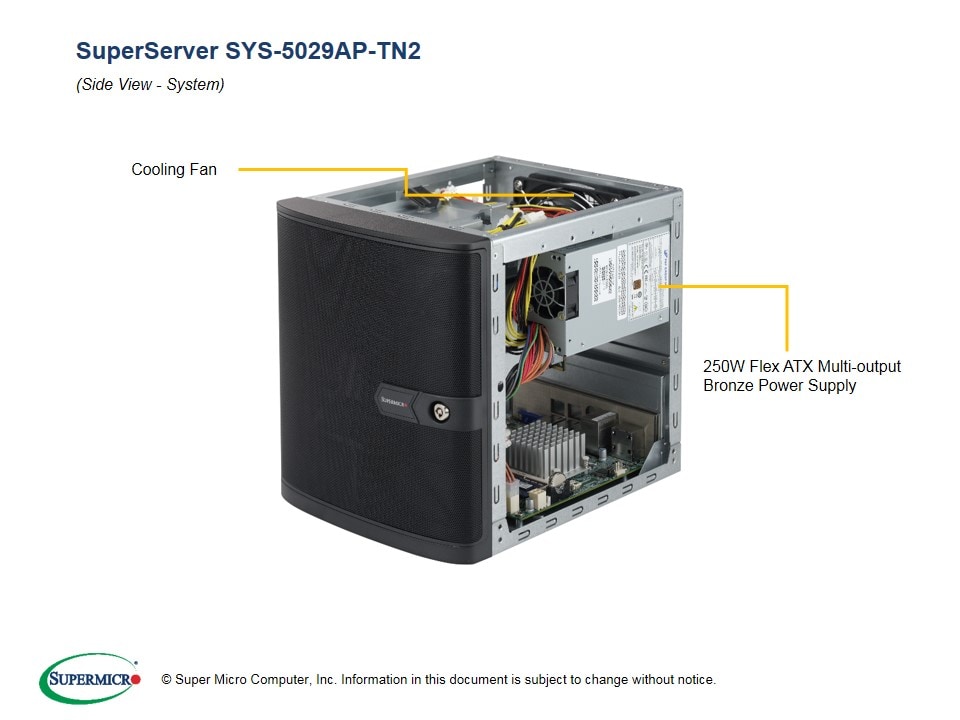

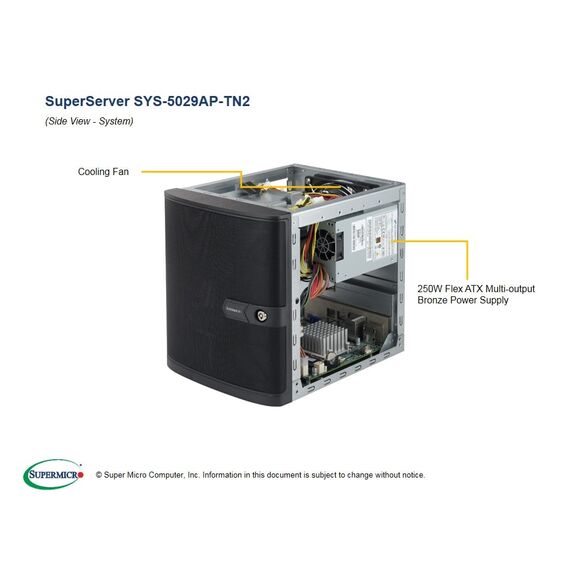

| Power Provided | 250 Watt |
| 80 PLUS Certification | 80 PLUS Bronze |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 1 year ¦ Limited warranty - labour - 3 years |
| Dimensions & Weight | |
| Width | 21 cm |
| Depth | 27.9 cm |
| Height | 24 cm |
| Weight | 6.8 kg |
| Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 8 - 90% (non-condensing) |
