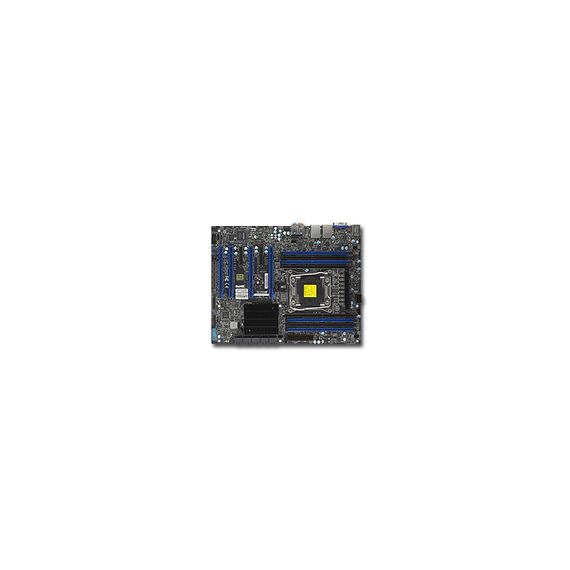

SUPERMICRO X10SRA / Motherboard / ATX / LGA2011-v3 Socket / C612 / USB 3.0 / 2 x Gigabit LAN / HD Audio (8-channel) | MBD-X10SRA-B
MBD-X10SRA-B
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
SUPERMICRO X10SRA / Motherboard / ATX / LGA2011-v3 Socket / C612 / USB 3.0 / 2 x Gigabit LAN / HD Audio (8-channel) | MBD-X10SRA-B
|
Description The Supermicro's X10 UP Serverboards offer the latest Xeon E5-2600/1600 v3 technology solutions with the highest levels of performance in different form factors to meet various application needs. X10SRL-F, with 7x PCIe (up to 5x PCIe 3.0 x8) slots onboard, is the best choice to maximize your I/O intensive application demand. On the other hand, X10SRi-F offers the latest virtualization support at low cost. For customers who need multiple I/O solutions in a 1U chassis, X10SRW-F (3x AOC) and X10SRG-F (5x AOC) provide the ultimate solutions. Supermicro's first UP Storage serverboard, X10SRH-CF/-CLN4F, brings the latest SAS3 (12 Gb/s data rate) technology to the market with the best performance per dollar value. Special Features
|
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel C612 |
| Processor Socket | LGA2011-v3 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Core i7, Xeon E5-2600 v3 series, Xeon E5-1600 v3 series, Xeon E5-2600 v4 series, Xeon E5-1600 v4 series (supports CPUs with up to 22 cores, Maximum TDP 160 Watt) |
| Max Size | 1 TB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 1600 MHz, 1866 MHz, 2133 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Registered, unbuffered, Load-Reduced, 3DS Load-Reduced |
| Details | 1 TB - 3DS Load-Reduced - ECC ¦ 512 GB - Load-Reduced - ECC ¦ 256 GB - registered - ECC ¦ 128 GB - unbuffered - ECC ¦ 128 GB - unbuffered - non-ECC |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1150 |
| Compliant Standards | High Definition Audio |
| Network Controller | Intel I210-AT |
| Network Interfaces | 2 x Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 8 x DIMM 288-pin (1.2 V) ¦ 4 x PCIe 3.0 x16 (dual x16 mode; triple: x16, x16, x8 mode; quad: x16, x8, x8, x8 mode) ¦ 2 x PCIe 2.0 x4 (x1 mode) |
| Storage Interfaces | SATA-600 -connectors: 10 x 7pin SATA - 10 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Interfaces | 2 x LAN (Gigabit Ethernet) ¦ 6 x USB 3.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x TOSLINK ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (side surround) - mini-jack |
| Internal Interfaces | 2 x USB 3.0 - header ¦ 1 x serial - header |
| BIOS Type | AMI |
| BIOS Features | APM 1.2 support, flash virus protection, power failure recovery (AC loss resume), DMI 2.3 support, UEFI BIOS, ACPI 4.0 support, SMBIOS 2.7.1 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Sleep / Wake Up | Keyboard wake up |
| Hardware Features | Diagnostic LEDs, chassis intrusion detection, WatchDog Timer |
| Compliant Standards | Plug and Play, RoHS, ACPI 4.0 |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| Package Type | Bulk |
| Service & Support | Limited warranty - parts - 1 year ¦ Limited warranty - labour - 3 years |
Features - SUPERMICRO - MBD-X10SRA-B
More Details
Product Code
3D30296
EAN Code
0672042176793
Manufacturer
SUPERMICRO
