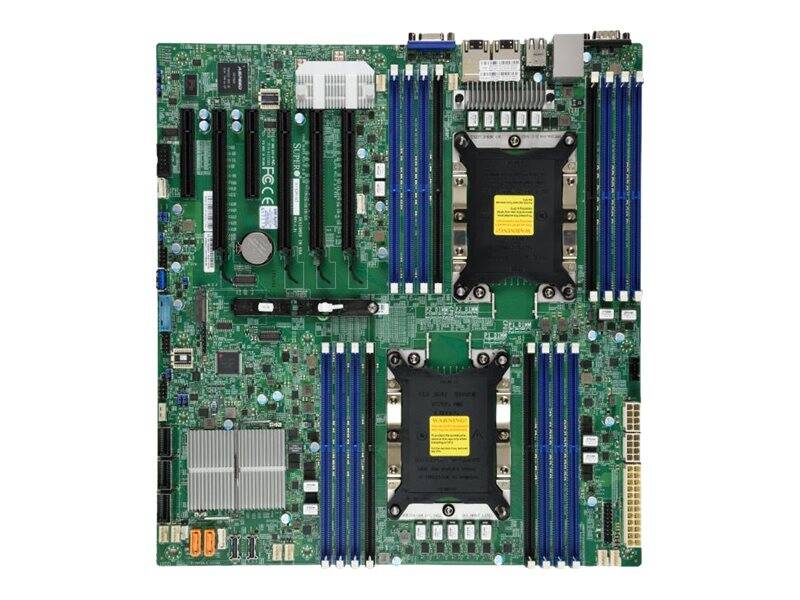

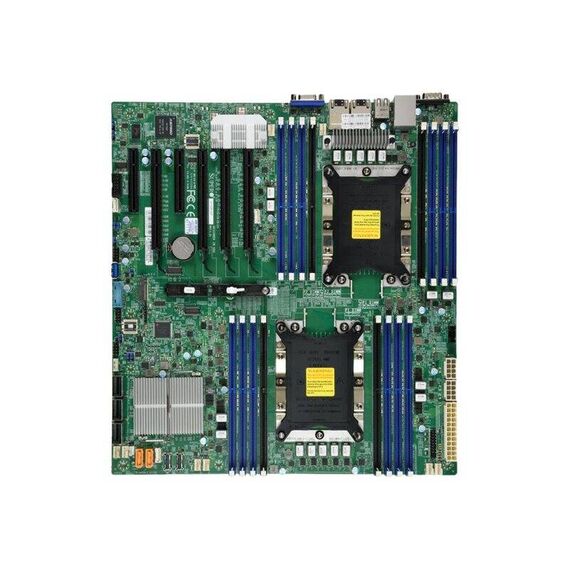

SUPERMICRO X11DPI-NT / Motherboard / extended ATX / Socket P / 2 CPUs supported / C622 / USB 3.0 / 2 x 10 Gigabit LAN / onboard graphics | MBD-X11DPI-NT-O

SUPERMICRO X11DPI-NT - Motherboard - extended A | MBD-X11DPI-NT-O

Description
Features
Reviews

Product Specification

Product Type	Motherboard - extended ATX
Chipset Type	Intel C622
Processor Socket	Socket P
Max Processors Qty	2
Compatible Processors	Xeon (supports CPUs with up to 28 cores, Maximum TDP 205 Watt)
Supported RAM	Supported RAM
Max Size	2 TB
Technology	DDR4
Bus Clock	2400 MHz, 2133 MHz, 2666 MHz
Supported RAM Integrity Check	ECC
Registered or Buffered	Registered, Load-Reduced, 3DS Load-Reduced
Details	2 TB - 3DS Load-Reduced - ECC
Graphics	Graphics
Graphics Controller	ASPEED AST2500
LAN	LAN
Network Controller	Intel X557
Network Interfaces	2 x 10 Gigabit Ethernet
Expansion / Connectivity	Expansion / Connectivity
Expansion Slots	2 x CPU Â¦ 16 x DIMM 288-pin (1.2 V) Â¦ 4 x PCIe 3.0 x16 Â¦ 2 x PCIe 3.0 x8
Storage Interfaces	Intel C622: SATA-600 -connectors: 14 x 7pin SATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 Â¦ PCIe 3.0 -connectors: 2 x NVMe port Â¦ PCIe 3.0 -connectors: 1 x M.2
Interfaces	2 x LAN (10Gigabit Ethernet) Â¦ 1 x VGA Â¦ 1 x serial Â¦ 2 x USB 3.0
Internal Interfaces	2 x USB 3.0 - header Â¦ 1 x serial - header Â¦ 1 x USB 3.0 - Type A
Features	Features
BIOS Type	AMI
BIOS Features	UEFI BIOS
Hardware Monitoring	Chassis fan tachometer, system voltage, CPU overheating protection
Hardware Features	Chassis intrusion detection
Miscellaneous	Miscellaneous
Compliant Standards	RoHS
Width	30.48 cm
Depth	33.02 cm
Package Type	Retail
Manufacturer Warranty	Manufacturer Warranty
Service & Support	Limited warranty - parts - 1 year Â¦ Limited warranty - labour - 3 years
