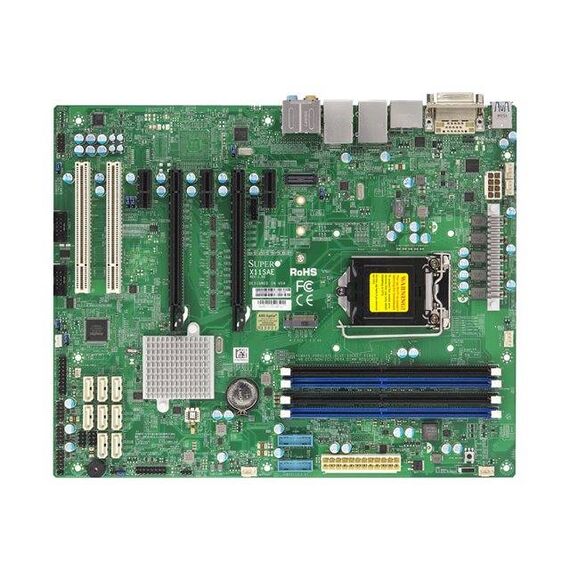

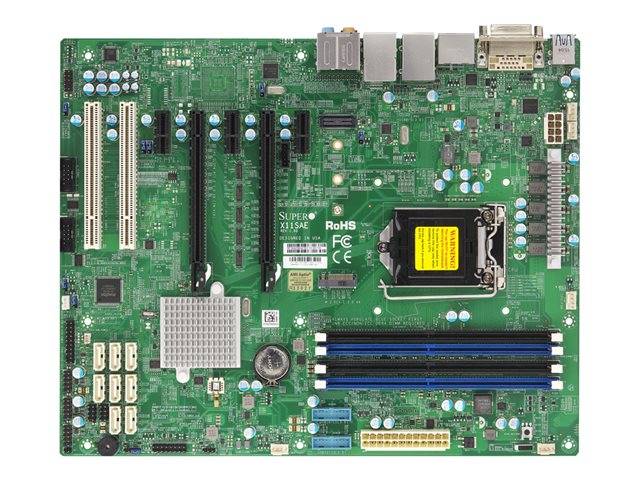

SUPERMICRO X11SAE / Motherboard / ATX / LGA1151 Socket / C236 / USB 3.0, USB 3.1 / 2 x Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | MBD-X11SAE-O
Description
With outstanding features that include fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0/USB 3.1, PCI-E 3.0 M.2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, and DVI ports. Designed with performance, reliability, manageability and long life in mind, Supermicro's single processor motherboards are the perfect solution for a variety of server, workstation and embedded applications.
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel C236 |
| Compatibility | Intel vPro |
| Processor Socket | LGA1151 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Core i5, Core i3, Core i7, Xeon E3-1200 v5 series (Maximum TDP 95 Watt) |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 1600 MHz, 1866 MHz, 2133 MHz |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Unbuffered |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC888S |
| Compliant Standards | High Definition Audio |
| Network Controller | Intel I210-AT / I219LM |
| Network Interfaces | 2 x Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin (1.2 V) ¦ 2 x PCIe 3.0 x16 (dual x8 mode; single card: x16 mode) ¦ 3 x PCIe 3.0 x1 ¦ 2 x PCI |
| Storage Interfaces | SATA-600 / PCIe 3.0 -connectors: 8 x 7pin SATA, 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Interfaces | 2 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.0 ¦ 2 x USB 2.0 ¦ 2 x USB 3.1 ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (side surround) - mini-jack ¦ 1 x TOSLINK |
| Internal Interfaces | 2 x serial - header ¦ 1 x audio - header ¦ 6 x USB 2.0 - header ¦ 4 x USB 3.0 - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | APM 1.2 support, flash virus protection, power failure recovery (AC loss resume), DMI 2.3 support, UEFI BIOS, ACPI 4.0 support, SMBIOS 2.7.1 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
| Sleep / Wake Up | Keyboard wake up, RTC (real-time clock) wake up |
| Hardware Features | Diagnostic LEDs, chassis intrusion detection, WatchDog Timer |
| Included Accessories | I/O back plate |
| Cables Included | 6 x Serial ATA cable |
| Software Included | SuperDoctor 5 |
| Compliant Standards | Plug and Play, RoHS |
| Width | 30.5 cm |
| Depth | 22.4 cm |
| Package Type | Retail |
| Service & Support | Limited warranty - parts - 1 year ¦ Limited warranty - labour - 3 years |
Features - SUPERMICRO - MBD-X11SAE-O
CPU Socket
- Socket 1151
More Details
Product Code
04:188654
EAN Code
0672042204793
Manufacturer
SUPERMICRO
