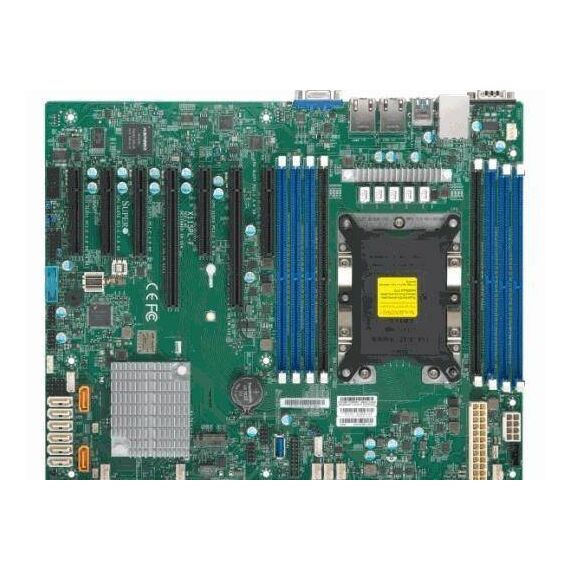

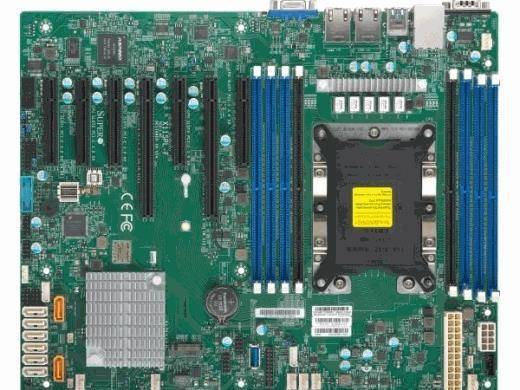

SUPERMICRO X11SPL-F / Motherboard / ATX / Socket P / C621 / USB 3.0 / 2 x Gigabit LAN / onboard graphics | MBD-X11SPL-F-O
Please sign in so that we can notify you about a reply
SUPERMICRO X11SPL-F / Motherboard / ATX / Socket P / C621 / USB 3.0 / 2 x Gigabit LAN / onboard graphics | MBD-X11SPL-F-O
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel C621 |
| Processor Socket | Socket P |
| Max Processors Qty | 1 |
| Compatible Processors | Xeon (supports CPUs with up to 28 cores, Maximum TDP 165 Watt) |
| Max Size | 1 TB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 1600 MHz, 1866 MHz, 2133 MHz, 2666 MHz |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Registered, Load-Reduced, 3DS Load-Reduced |
| Details | 1 TB - 3DS Load-Reduced - ECC ¦ 512 GB - Load-Reduced - ECC ¦ 256 GB - registered - ECC |
| Graphics Controller | ASPEED AST2500 |
| Network Controller | Intel I210 |
| Network Interfaces | 2 x Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 8 x DIMM 288-pin (1.2 V) ¦ 2 x PCIe 3.0 x16 (x8 mode) ¦ 4 x PCIe 3.0 x8 ¦ 1 x PCIe 3.0 x8 (x4 mode) |
| Storage Interfaces | Intel C621: SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 - 1 devices |
| Interfaces | 2 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 1 x serial ¦ 2 x USB 3.0 ¦ 2 x USB 2.0 |
| Internal Interfaces | 1 x serial - header ¦ 1 x USB 3.0 - Type A ¦ 6 x USB 2.0 - header ¦ 2 x USB 3.0 - header |
| BIOS Type | AMI |
| BIOS Features | Power failure recovery (AC loss resume), UEFI BIOS, IPMI 2.0 support, SMBIOS 3.0 support, ACPI 6.0 support |
| Hardware Monitoring | Chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
| Sleep / Wake Up | RTC (real-time clock) wake up, wake on LAN (WOL) |
| Hardware Features | Diagnostic LEDs, chassis intrusion detection, WatchDog Timer |
| Included Accessories | I/O back plate |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | RoHS |
| Width | 30.48 cm |
| Depth | 24.38 cm |
| Package Type | Retail |
| Service & Support | Limited warranty - parts - 1 year ¦ Limited warranty - labour - 3 years |
Features - SUPERMICRO - MBD-X11SPL-F-O
More Details
Product Code
07:217883
EAN Code
0672042281206
Manufacturer
SUPERMICRO
