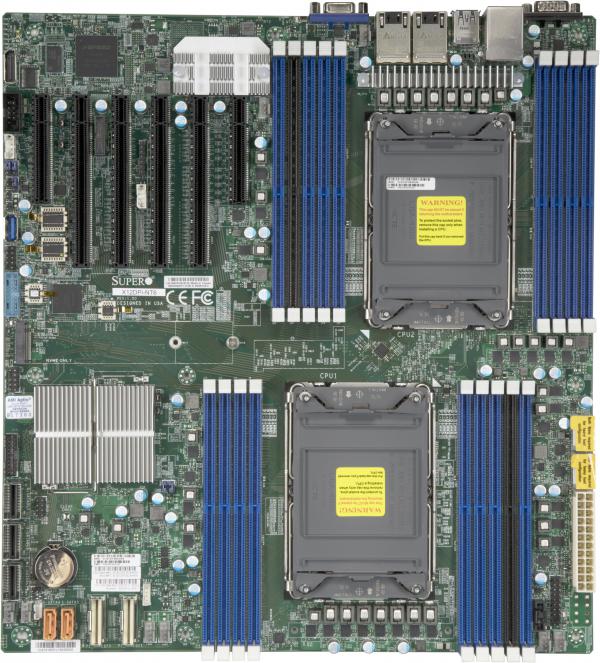

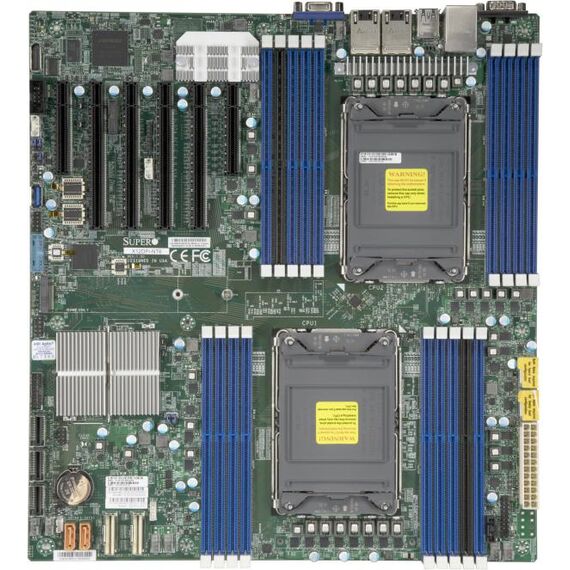

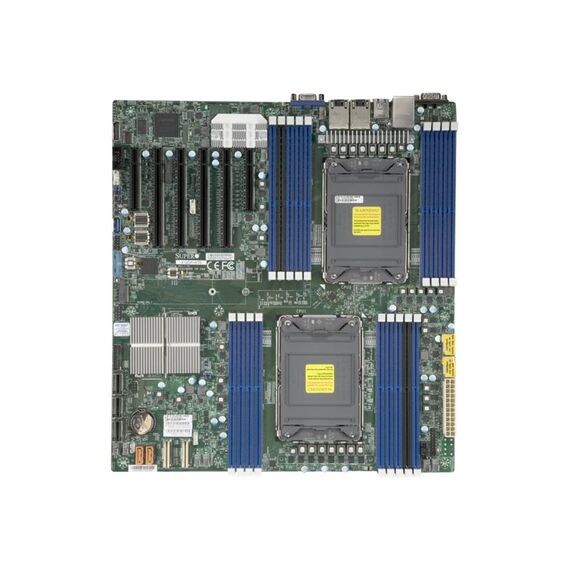

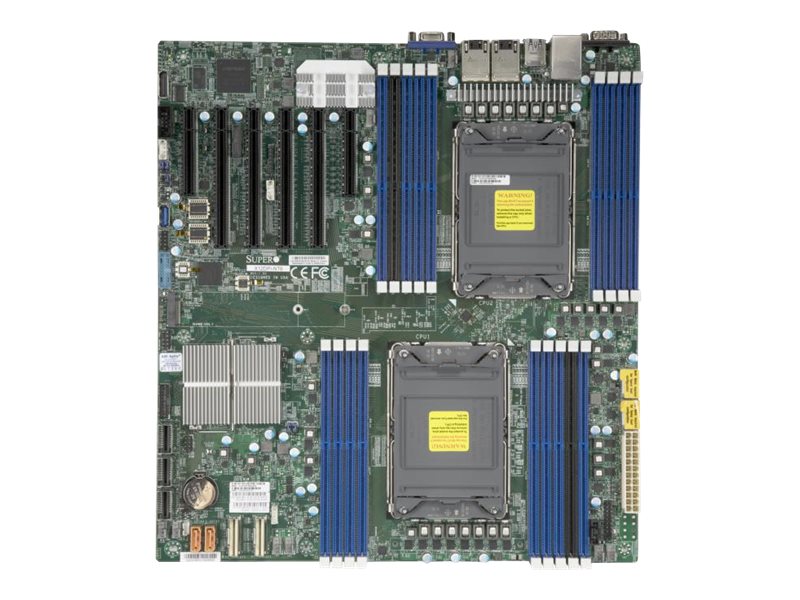

SUPERMICRO X12DPI-N6 - Motherboard - extended ATX - LGA4189 Socket - 2 CPUs supported - C621A Chipset - USB 3.2 Gen 1 - 2 x Gigabit LAN - onboard graphics - for SC745 BAC-R1K23B; SC825 BTQC-R1K23LPB | MBD-X12DPI-N6-O
MBD-X12DPI-N6-O
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - extended ATX |
| Chipset Type | Intel C621A |
| Processor Socket | LGA4189 Socket |
| Max Processors Qty | 2 |
| Compatible Processors | Xeon (supports CPUs with up to 40 cores, Maximum TDP 270 Watt) |
| Supported RAM | |
| Max Size | 4 TB |
| Technology | DDR4 |
| Bus Clock | 2666 MHz, 2933 MHz, 3200 MHz |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Registered, Load-Reduced, 3DS Load-Reduced, Optane DC Persistent |
| Features | Single Device Data Correction (SDDC) |
| Graphics | |
| Graphics Controller | ASPEED AST2600 |
| LAN | |
| Network Controller | Intel I350 |
| Network Interfaces | 2 x Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 2 x CPU ¦ 18 x DIMM 288-pin (1.2 V) ¦ 4 x PCIe 4.0 x16 ¦ 2 x PCIe 4.0 x8 |
| Storage Interfaces | SATA-600 - 14 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2 |
| Interfaces | 2 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 4 x USB 3.2 Gen 1 ¦ 1 x serial |
| Internal Interfaces | 1 x USB 3.2 Gen 1 - Type A ¦ 1 x serial - header ¦ 2 x USB 2.0 - header ¦ 1 x VGA - header |
| Features | |
| BIOS Type | AMI |
| BIOS Features | Power failure recovery (AC loss resume), UEFI BIOS, IPMI 2.0 support |
| Hardware Monitoring | System voltage, CPU core voltage |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | Chassis intrusion detection |
| Miscellaneous | |
| Included Accessories | I/O back plate |
| Cables Included | 3 x Serial ATA cable |
| Compliant Standards | RoHS |
| Width | 30.48 cm |
| Depth | 33.02 cm |
| Package Type | Retail |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 1 year ¦ Limited warranty - labour - 3 years |
| Compatibility Information | |
| Designed For | Supermicro SC745 BAC-R1K23B ¦ Supermicro SC825 BTQC-R1K23LPB |
Features - SUPERMICRO - MBD-X12DPI-N6-O
CPU Socket
- Socket 4189
More Details
Product Code
07:125072
EAN Code
0672042451463
Manufacturer
SUPERMICRO
