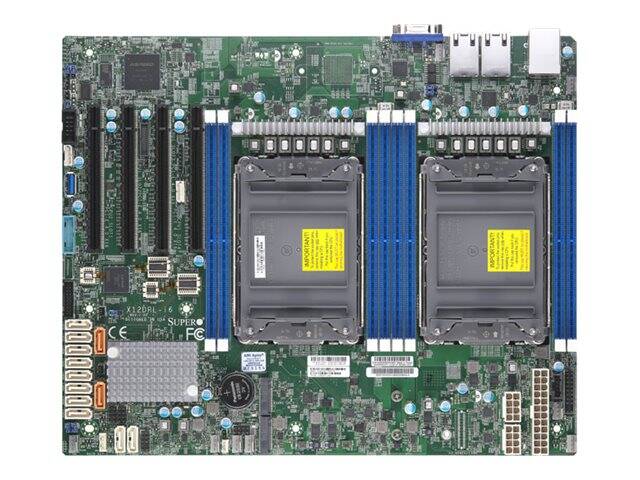

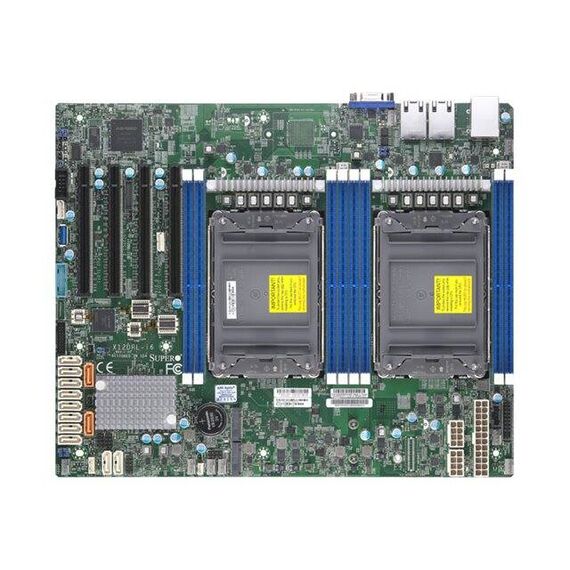

SUPERMICRO X12DPL-I6 / Motherboard / ATX / LGA4189 Socket / 2 CPUs supported / C621A Chipset / USB 3.2 Gen 1 / 2 x Gigabit LAN / onboard graphics / for SCLA25TQC R609LP | MBD-X12DPL-I6-O
Please sign in so that we can notify you about a reply
Special Features
- 3rd Gen Intel Xeon scalable processors
- Dual socket LGA-4189 (Socket P+) supported, CPU TDP supports up to 185W TDP, 2 UPI up to 11.2 GT/s
- Intel C621A
- Up to 2TB RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz, in 8 DIMM slots
- 4 PCI-E 4.0 x16
- M.2 interface: 2 PCI-E 4.0 x4
- M.2 form factor: 2280/22110, 2280
- M.2 Key: M-Key
- 1 VGA port
- Intel C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- Dual LAN with Intel i210 Gigabit Ethernet Controller
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel C621A |
| Processor Socket | LGA4189 Socket |
| Max Processors Qty | 2 |
| Compatible Processors | Xeon (Maximum TDP 185 Watt) |
| Supported RAM | Supported RAM |
| Max Size | 2 TB |
| Technology | DDR4 |
| Bus Clock | 2666 MHz, 2933 MHz, 3200 MHz |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Registered, Load-Reduced, 3DS Load-Reduced |
| Graphics | Graphics |
| Graphics Controller | ASPEED AST2600 |
| LAN | LAN |
| Network Controller | Intel I210 |
| Network Interfaces | 2 x Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 2 x CPU ¦ 8 x DIMM 288-pin (1.2 V) ¦ 4 x PCIe 4.0 x16 |
| Storage Interfaces | SATA-600 - 12 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 |
| Interfaces | 2 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 1 |
| Internal Interfaces | 1 x USB 3.2 Gen 1 - Type A ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x serial - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | Power failure recovery (AC loss resume), UEFI BIOS, IPMI 2.0 support |
| Hardware Monitoring | System voltage, CPU core voltage |
| Hardware Features | WatchDog Timer |
| Miscellaneous | Miscellaneous |
| Included Accessories | I/O back plate |
| Cables Included | 6 x Serial ATA cable |
| Software Included | SuperDoctor 5 |
| Width | 31.06 cm |
| Depth | 25.4 cm |
| Package Type | Retail |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - parts - 1 year ¦ Limited warranty - labour - 3 years |
| Compatibility Information | Compatibility Information |
| Designed For | Supermicro SCLA25TQC R609LP |
Features - SUPERMICRO - MBD-X12DPL-I6-O
CPU Socket
- Socket 4189
More Details
Product Code
07:125069
EAN Code
0672042443659
Manufacturer
SUPERMICRO
