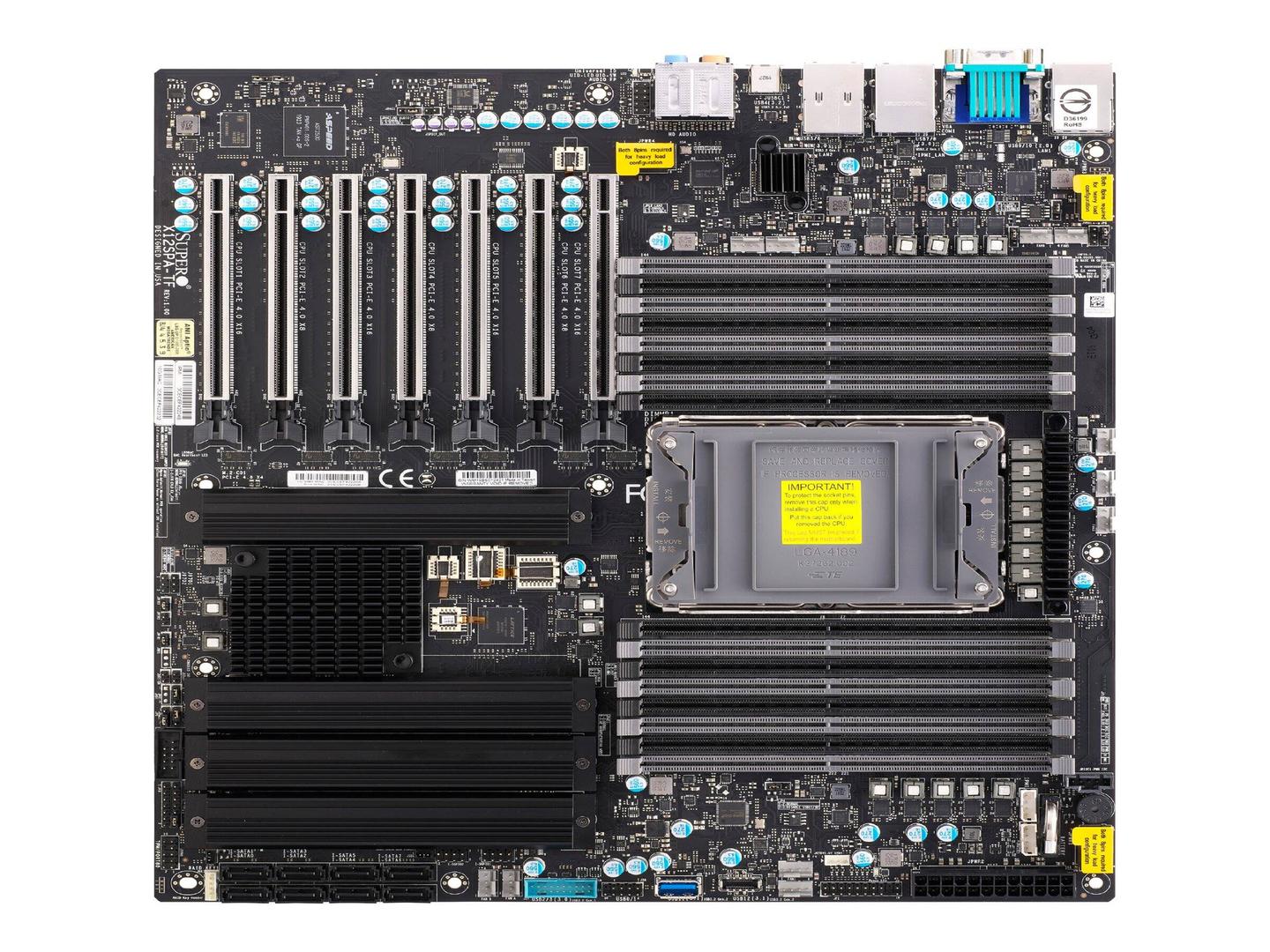

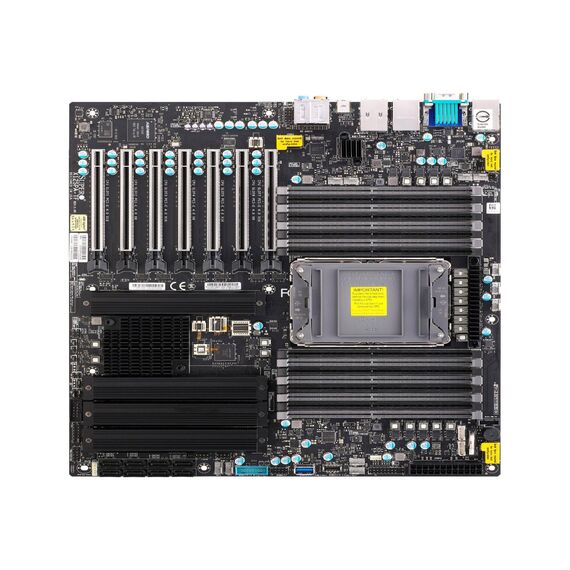

SUPERMICRO X12SPA-TF / Motherboard / extended ATX / LGA4189 Socket / C621A Chipset / USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 / 10 Gigabit LAN, Gigabit LAN / onboard graphics / HD Audio / for SC743 AC-1K26B-SQ; SC747 BTQ- | MBD-X12SPA-TF-O
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - extended ATX |
| Chipset Type | Intel C621A |
| Processor Socket | LGA4189 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Xeon (Maximum TDP 270 Watt, supports CPUs with up to 40 cores) |
| Supported RAM | Supported RAM |
| Max Size | 4 TB |
| Technology | DDR4 |
| Bus Clock | 3200 MHz |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | 3DS Load-Reduced, 3DS registered, Optane DC Persistent |
| Graphics | Graphics |
| Graphics Controller | ASPEED AST2500 |
| Audio | Audio |
| Type | HD Audio |
| Audio Codec | Realtek ALC888S |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Marvell AQC113C / Intel I210-AT |
| Network Interfaces | 10 Gigabit Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 16 x DIMM 288-pin (1.2 V) ¦ 4 x PCIe 4.0 x16 ¦ 3 x PCIe 4.0 x8 |
| Storage Interfaces | SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 4 x M.2 |
| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 1 x management ¦ 1 x LAN (10Gigabit Ethernet) ¦ 1 x USB-C Gen2x2 ¦ 1 x VGA ¦ 2 x USB 2.0 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x serial |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header ¦ 2 x USB 2.0 - header ¦ 1 x serial - header |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | Power failure recovery (AC loss resume), ACPI 3.0 support, ACPI 4.0 support, SMBIOS 2.7 support, IPMI 2.0 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Sleep / Wake Up | RTC (real-time clock) wake up |
| Miscellaneous | Miscellaneous |
| Included Accessories | I/O back plate |
| Cables Included | 6 x Serial ATA cable |
| Width | 33.02 cm |
| Depth | 30.48 cm |
| Package Type | Retail |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - parts - 1 year ¦ Limited warranty - labour - 3 years |
| Compatibility Information | Compatibility Information |
| Designed For | Supermicro SC743 AC-1K26B-SQ ¦ Supermicro SC747 BTQ-R2K04B |
Features - SUPERMICRO - MBD-X12SPA-TF-O
CPU Socket
- Socket 4189
More Details
Product Code
07:125071
EAN Code
0672042438389
Manufacturer
SUPERMICRO
