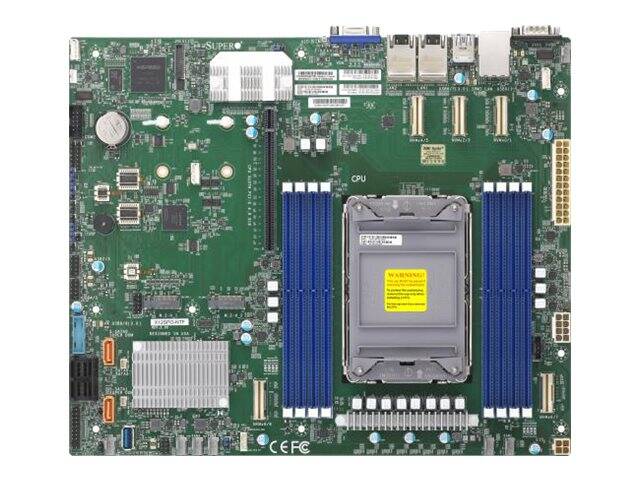

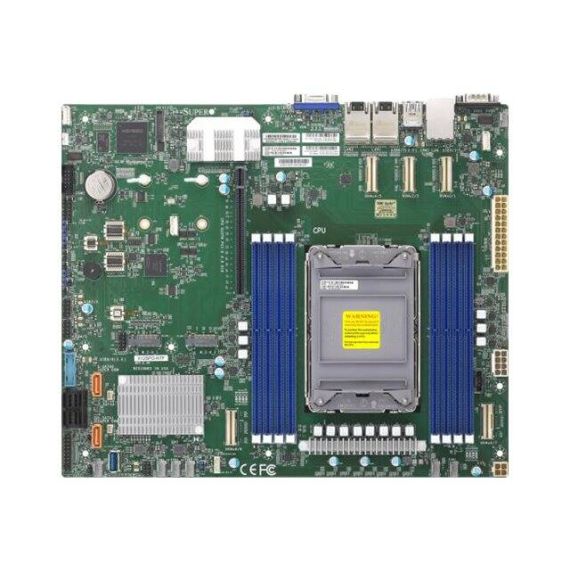

SUPERMICRO X12SPO-NTF / Motherboard / ATX / LGA4189 Socket / C621A Chipset / USB 3.2 Gen 1 / 2 x 10 Gigabit LAN / onboard graphics / for SC813M F2TQC-505CB | MBD-X12SPO-NTF-B
SUPERMICRO X12SPO-NTF / Motherboard / ATX / LGA4189 Socket / C621A Chipset / USB 3.2 Gen 1 / 2 x 10 Gigabit LAN / onboard graphics / for SC813M F2TQC-505CB | MBD-X12SPO-NTF-B
€840.53 inc. VAT
MBD-X12SPO-NTF-B
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel C621A |
| Processor Socket | LGA4189 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Xeon (Maximum TDP 270 Watt, supports CPUs with up to 40 cores) |
| Supported RAM | Supported RAM |
| Max Size | 2 TB |
| Technology | DDR4 |
| Bus Clock | 2666 MHz, 2933 MHz, 3200 MHz |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Registered, Load-Reduced, 3DS Load-Reduced, 3DS registered, Optane DC Persistent |
| Graphics | Graphics |
| Graphics Controller | ASPEED AST2600 |
| LAN | LAN |
| Network Controller | Intel X550 |
| Network Interfaces | 2 x 10 Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 8 x DIMM 288-pin (1.2 V) 1 x PCIe 4.0 x16 |
| Storage Interfaces | SATA-600 - 10 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 3.0 -connectors: 2 x M.2 |
| Interfaces | 2 x LAN (10Gigabit Ethernet) 1 x VGA 2 x USB 2.0 2 x USB 3.2 Gen 1 1 x serial |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x serial - header 1 x USB 3.2 Gen 1 - Type A |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | Power failure recovery (AC loss resume), UEFI BIOS, IPMI 2.0 support, SMBIOS 3.0 support, ACPI 6.2 support |
| Hardware Monitoring | CPU core temperature, system voltage, CPU core voltage |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Miscellaneous | Miscellaneous |
| Included Accessories | I/O back plate |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | RoHS |
| Width | 30.48 cm |
| Depth | 25.4 cm |
| Package Type | Bulk |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - parts - 1 year Limited warranty - labour - 3 years |
| Compatibility Information | Compatibility Information |
| Designed For | Supermicro SC813M F2TQC-505CB |
Features - SUPERMICRO - MBD-X12SPO-NTF-B
CPU Socket
- Socket 4189
More Details
Product Code
07:140309
EAN Code
0672042399123
Manufacturer
SUPERMICRO
