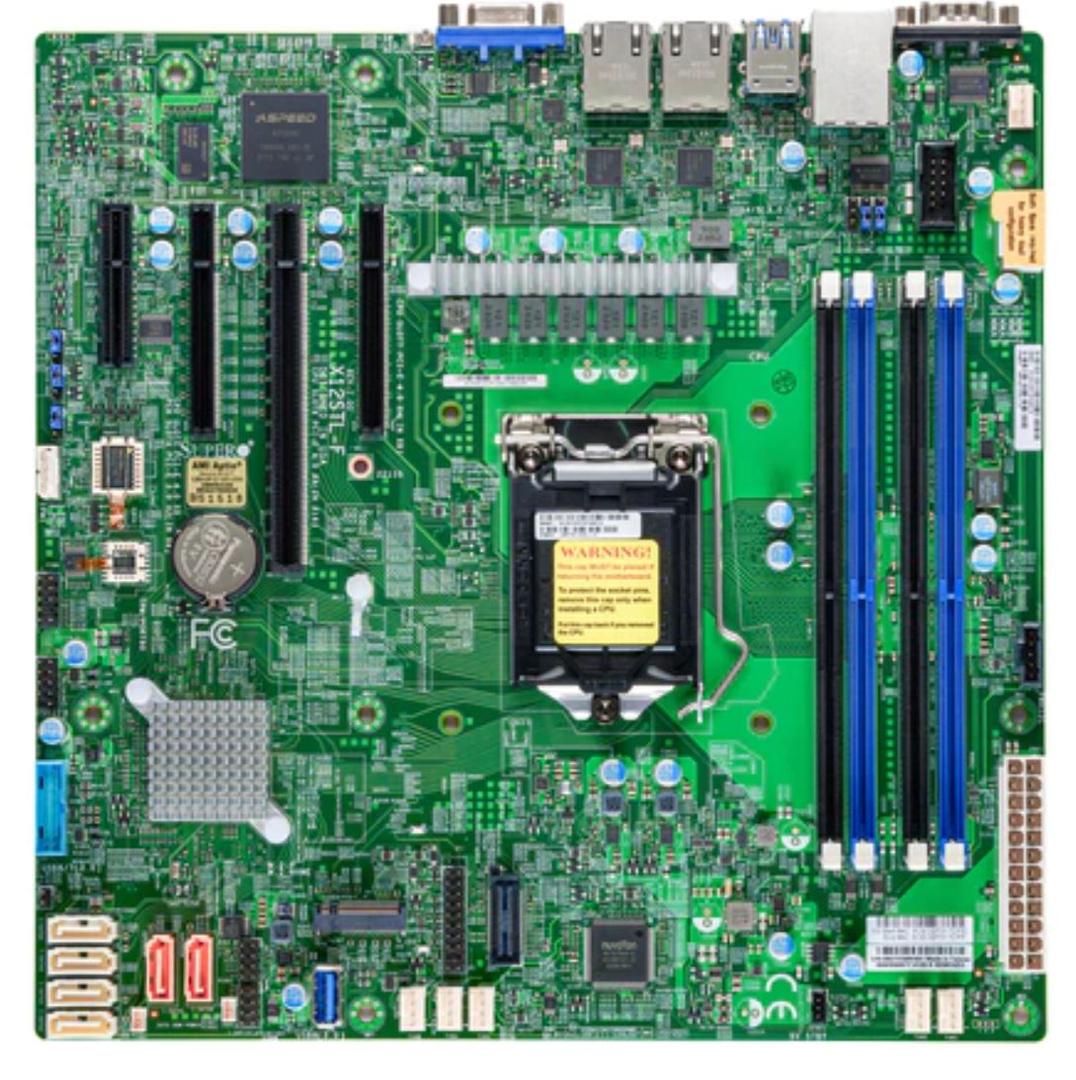

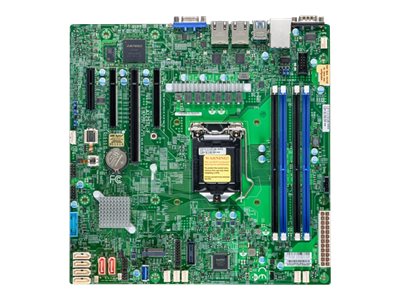

SUPERMICRO X12STL-F - Motherboard - micro ATX - LGA1200 Socket - C252 Chipset - USB 3.2 Gen 1 - 2 x Gigabit LAN - onboard graphics | MBD-X12STL-F-B
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel C252 |
| Processor Socket | LGA1200 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Pentium, Xeon E (Maximum TDP 95 Watt) |
| Supported RAM | |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2666 MHz, 2933 MHz, 3200 MHz |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Unbuffered |
| Graphics | |
| Graphics Controller | ASPEED AST2600 |
| LAN | |
| Network Controller | Intel I210 |
| Network Interfaces | 2 x Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin (1.2 V) ¦ 1 x PCIe 4.0 x16 (x8 mode) ¦ 1 x PCIe 3.0 x4 (x2 mode) ¦ 1 x PCIe 4.0 x8 (x4 mode) ¦ 1 x PCIe 4.0 x8 |
| Storage Interfaces | Intel C252: SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces | 2 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x serial |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header ¦ 2 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x USB 3.2 Gen 1 - Type A |
| Features | |
| BIOS Features | Power failure recovery (AC loss resume), UEFI BIOS, ACPI 6.0 support, SMBIOS 3.3 support |
| Hardware Monitoring | Chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
| Sleep / Wake Up | RTC (real-time clock) wake up, wake on LAN (WOL) |
| Hardware Features | Diagnostic LEDs, chassis intrusion detection |
| Miscellaneous | |
| Included Accessories | I/O back cover |
| Cables Included | 2 x Serial ATA cable |
| Width | 24.38 cm |
| Depth | 24.38 cm |
| Package Type | Bulk |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 1 year ¦ Limited warranty - labour - 3 years |
Features - SUPERMICRO - MBD-X12STL-F-B
More Details
Product Code
04:418644
EAN Code
0672042461578
Manufacturer
SUPERMICRO
