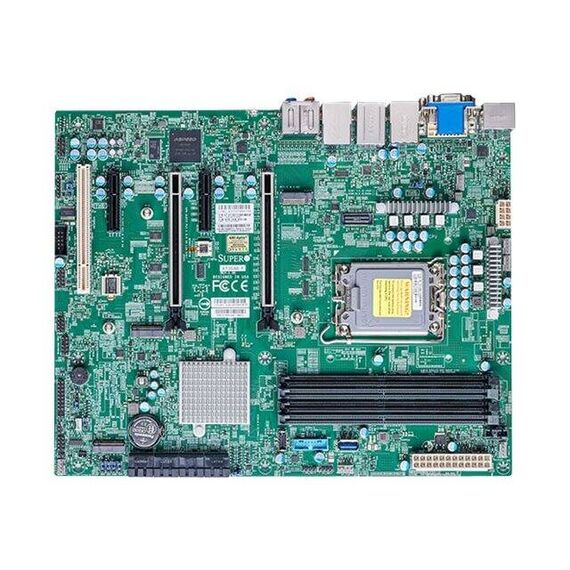

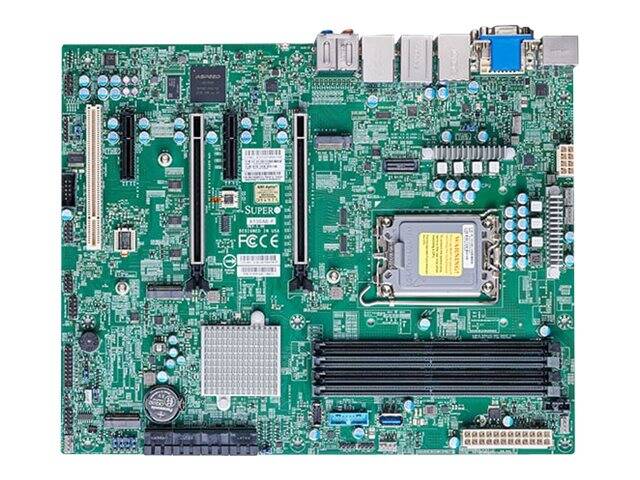

SUPERMICRO X13SAE-F / Motherboard / ATX / LGA1700 Socket / W680 Chipset / USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 / Gigabit LAN, 2.5 Gigabit LAN / onboard graphics / HD Audio / for S5 GS5A-754K; SC732 D4-903B | MBD-X13SAE-F-O
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel W680 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Core i5, Core i3, Core i7, Core i9 (Maximum TDP 125 Watt) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 4400 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
| Graphics | Graphics |
| Graphics Controller | ASPEED AST2600 |
| Audio | Audio |
| Type | HD Audio |
| Audio Codec | Realtek ALC888S |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Intel I225-LM / Intel I219LM |
| Network Interfaces | Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin (1.1 V) ¦ 2 x PCIe 5.0 x16 (x16/x0, x8/x8 modes) ¦ 1 x PCI (5 V) ¦ 2 x PCIe 3.0 x4 |
| Storage Interfaces | SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 5 |
| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 1 x DisplayPort ¦ 1 x DVI-D ¦ 1 x VGA ¦ 4 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2x2 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x HDMI ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x TOSLINK ¦ 1 x management |
| Internal Interfaces | 1 x USB 3.2 Gen 1 - Type A ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x USB-C Gen 2x2 - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | Power failure recovery (AC loss resume), SMBIOS 3.0 support, ACPI 6.0 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | WatchDog Timer |
| Miscellaneous | Miscellaneous |
| Included Accessories | I/O back plate |
| Cables Included | 4 x Serial ATA cable |
| Compliant Standards | Plug and Play |
| Width | 30.48 cm |
| Depth | 24.38 cm |
| Package Type | Retail |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - parts - 1 year ¦ Limited warranty - labour - 3 years |
| Compatibility Information | Compatibility Information |
| Designed For | Supermicro S5 GS5A-754K ¦ Supermicro SC732 D4-903B |
Features - SUPERMICRO - MBD-X13SAE-F-O
CPU Socket
- Socket 1700
More Details
Product Code
04:404514
EAN Code
0672042472864
Manufacturer
SUPERMICRO
