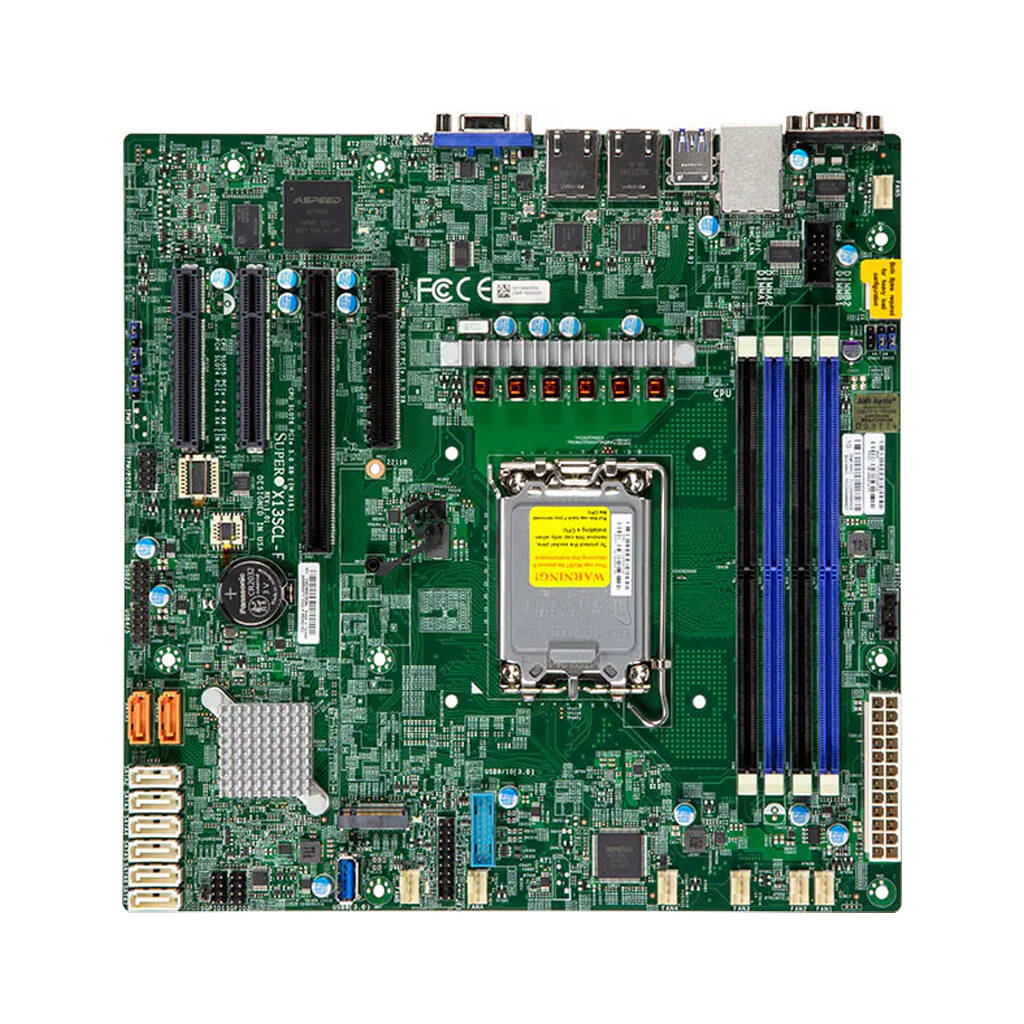

SUPERMICRO X13SCL-F / Motherboard / micro ATX / LGA1700 Socket / C262 Chipset / 2 x Gigabit LAN / onboard graphics | MBD-X13SCL-F-O
MBD-X13SCL-F-O
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel C262 |
| Processor Socket | LGA1700 Socket |
| Compatible Processors | Xeon, Pentium (Maximum TDP 95 Watt) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 4400 MHz, 4000 MHz, 3600 MHz |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Unbuffered |
| Graphics | Graphics |
| Graphics Controller | ASPEED AST2600 |
| LAN | LAN |
| Network Controller | 2 x Intel I210 |
| Network Interfaces | 2 x Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin (1.1 V) 2 x PCIe 4.0 x4 (x8 mode) 1 x PCIe 5.0 x8 1 x PCIe 5.0 x8 (x16 mode) 1 x M.2 socket (2280/22110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 1 x M.2 PCIe 5.0 -connectors: 2 PCIe 4.0 -connectors: 2 |
| Interfaces | 1 x serial 1 x IPMI 2 x USB 3.2 Gen 1 4 x USB 2.0 1 x VGA |
| Internal Interfaces | 1 x USB 3.2 Gen 1 - Type A 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x serial - header 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ACPI 6.4 support, SMBIOS 3.5 support, UEFI 2.8 support, PCI FW 3.3 support |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | Trusted Platform Module (TPM) 2.0 |
| Miscellaneous | Miscellaneous |
| Included Accessories | IO shield |
| Cables Included | 2 x Serial ATA cable |
| Software Included | SuperDoctor 5 |
| Width | 24.38 cm |
| Depth | 24.38 cm |
| Package Type | Retail |
Features - SUPERMICRO - MBD-X13SCL-F-O
More Details
Product Code
07:136480
EAN Code
0672042899173
Manufacturer
SUPERMICRO
