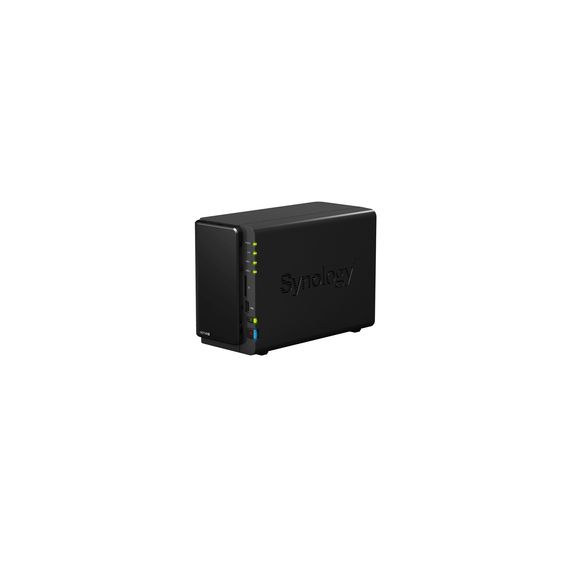

Synology Disk Station DS214+ NAS server SATA 3Gb/s RAID 0, 1, JBOD Gigabit Ethernet iSCSI

Synology DS214+ Synology Disk Station DS214+ NAS server SATA 3Gb/s RAID 0, 1, JBOD Gigabit Ethernet iSCSI

Dual Core and Dual LAN Performance
Performance is the key for smal and medium business users. Synology DS214 comes with a dual core CPU with built-in floating-point unit, 1GB DDR3 RAM, dual LAN ports, SuperSpeed USB3.0 and the brand new tool-less drive trays, providing incomparable system performance among 2-bay
NAS devices available nowadays. The built-in floating-point unit enhances the overall capability of the main CPU to enable higher working efficiency. With RAM twice the size of its predecessor, DS214 also exhibits a surprising boost in multi-tasking performance. Under link aggregation, DS214 delivers over 153 MB/s writing speed under RAID 1 configuration in a Windows environment, and over 208 MB/s reading. The dual LAN also supports failover mechanism, ensuring continual network service in case of LAN failure.

Cross Platform File Sharing and Mobile Access
Comprehensive network protocol support assures seamless file sharing across Windows, Mac, and Linux platforms. Windows ADS and LDAP integration allows the Synology DS214 to quickly and easily fit in an existing business network environment with no need to recreate user accounts. Windows ACL support provides much finer-grained access control and efficient privilege settings, allowing users to enjoy native Windows experience.

Internet file access is simplified by the encrypted FTP server and the web-based File Station. HTTPS, the built-in firewall, and IP auto-block support ensure file sharing over the Internet is protected at a high security level. For users who are always on the move, Synology provides a handy app, DS file, for popular mobile devices such as iPhone, iPad, Android™ devices and Windows Phone™. Anything stored on Synology DS214 can now be accessed remotely using DS file.

Feature list

Storage drives installed:	N
Installed storage drive type:	HDD
Supported storage drive types:	HDD, SSD
Number of storage drives supported:	2
Maximum supported storage capacity:	8 TB
Storage drive interface:	Serial ATA II
Storage drive capacity:	4096 GB
Storage drive size:	2.5/3.5 "
RAID support:	Y
RAID levels:	0, 1, JBOD
Hot-swap drive bays:	Y
Supported file systems:	ext3, ext4, FAT16, FAT32, NTFS
Processor frequency:	1.33 GHz
Processor cores:	2
Internal RAM:	1024 GB
Internal RAM type:	DDR3
Ethernet LAN:	Y
Ethernet LAN data rates:	10, 100, 1000 Mbit/s
Wi-Fi:	Y
DHCP client:	N
DHCP server:	Y
iSCSI support:	Y
Supported network protocols:	CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN PPTP, OpenVPN, L2TP
Ethernet LAN RJ-45 ports:	2
USB port:	Y
USB 2.0 ports quantity:	1
USB 3.0 ports quantity:	2
eSATA ports quantity:	1
Chassis type:	Desktop
Colour of product:	Black
Cooling type:	Active
Number of fans:	1
Fan diameter:	92 mm
Drive bay locking:	Y
LED indicators:	Y
Type:	NAS
Backup function:	Y
Backup features:	Cloud, iSCSI LUN
Multilingual support:	Y
Number of users:	2048 users
Access Control List ACL:	Y
Reset button:	Y
On/off switch:	Y
Windows operating systems supported:	Y
Linux operating systems supported:	Ubuntu 10.04, Ubuntu 11.04, Ubuntu 9.04, Ubuntu 9.10
Mac operating systems supported:	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
AC input voltage:	100-240 V
AC input frequency:	50/60 Hz
Width:	103.5 mm
Depth:	232 mm
Height:	157 mm
Weight:	1650 g
External power adapter:	Y
Cables included:	AC, LAN RJ-45
Operating temperature T-T:	5 - 35 °C
Operating relative humidity H-H:	5 - 95 %
Storage temperature T-T:	-10 - 70 °C
RoHS compliance:	Y
