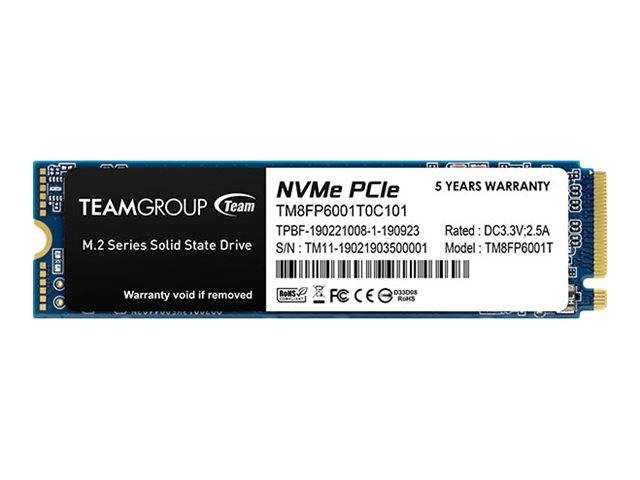

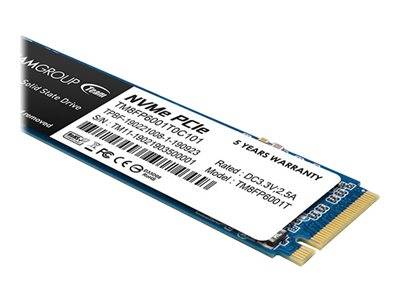

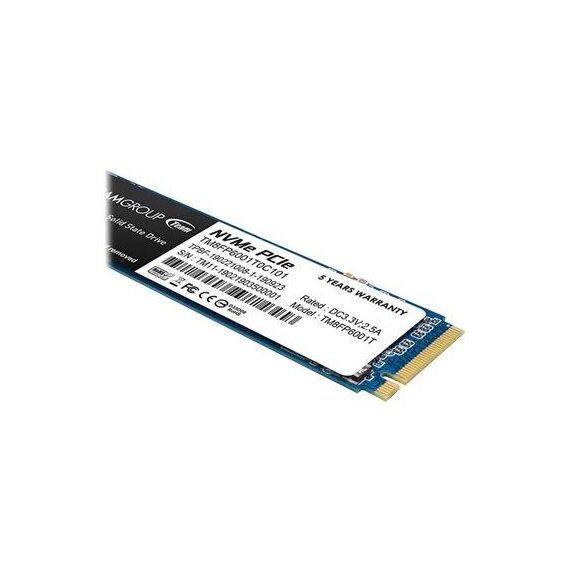

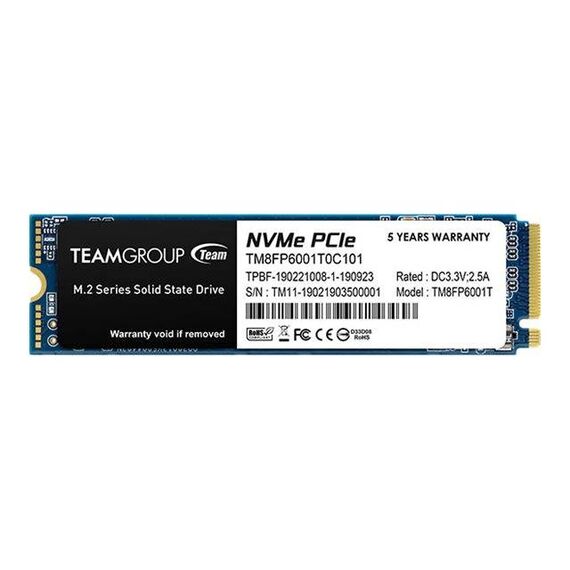

Team Group MP33 / SSD / 1 TB / internal / M.2 2280 / PCIe 3.0 x4 (NVMe) | TM8FP6001T0C101

Product Features

High-speed performance
It is able to reduce operating delays while gaming and loading software that gives computer workers and gamers a fine and smooth gaming experience and extremely high-speed performance without any lag even loading heavy duty video or graphics editing software and games.
Available in all capacities
MP33 M.2 PCIe solid state drive is available in all capacities. It is lightweight, thin, compact and supports Intel and AMD's platform. Suitable for players who have needs in speed, and it is a great choice when it comes to upgrading PC or laptop.
Comprehensive smart management mechanism
The solid state drive supports SMART function and its built-in smart algorithm management mechanism has functions such as garbage collection and TRIM command which are able to ensure operation efficiency, enhance the service life of the solid state drive and bring it to its maximum performance.

Special Features

High-speed performance
Available in all capacities
Comprehensive smart management mechanism
Capacity, performance, and durability are greatly improved using 3D flash memory
Supports the advanced platforms of Intel and AMD
Suitable for both desktop and notebook
Supports SLC Caching technology and greatly enhances computing performance

Product Specification

Device Type	Solid state drive - internal
Capacity	1 TB
Form Factor	M.2 2280
Interface	PCIe 3.0 x4 (NVMe)
Features	TRIM support, 3D NAND Technology, SLC cache, NVM Express (NVMe) 1.3, S.M.A.R.T.
Width	22 mm
Depth	80 mm
Height	3.8 mm
Weight	6 g
Performance	Performance
SSD Endurance	600 TB
Internal Data Rate	1800 MBps (read) / 1500 MBps (write)
Maximum 4KB Random Write	200000 IOPS
Maximum 4KB Random Read	220000 IOPS
Reliability	Reliability
MTBF	1,500,000 hours
Expansion & Connectivity	Expansion & Connectivity
Interfaces	1 x PCI Express 3.0 x4 (NVMe) - M.2 Card
Compatible Bay	M.2 2280
Software & System Requirements	Software & System Requirements
OS Required	Linux 2.6.33 or later, Microsoft Windows 7 / 8 / 8.1 / 10
Miscellaneous	Miscellaneous
Compliant Standards	FCC, RoHS
Manufacturer Warranty	Manufacturer Warranty
Service & Support	Limited warranty - 5 years
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 Â°C
Max Operating Temperature	70 Â°C
Min Storage Temperature	-40 Â°C
Max Storage Temperature	85 Â°C
Humidity Range Operating	90% under 40 Â°C
Shock Tolerance (operating)	1500 g @ 0.5 ms
Vibration Tolerance (operating)	20 g @ 80-2000 Hz
