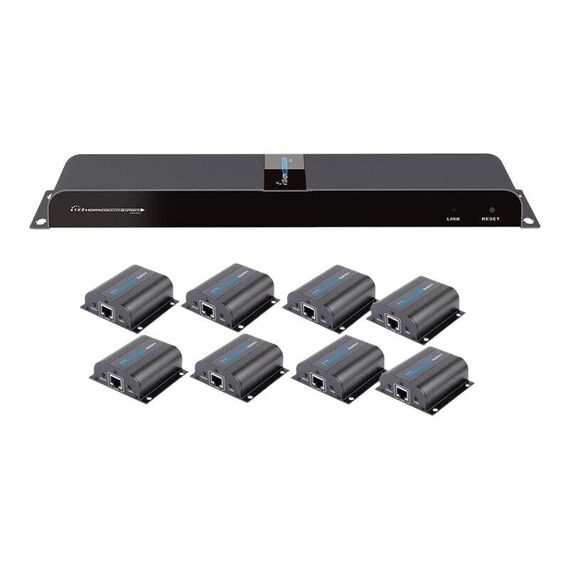

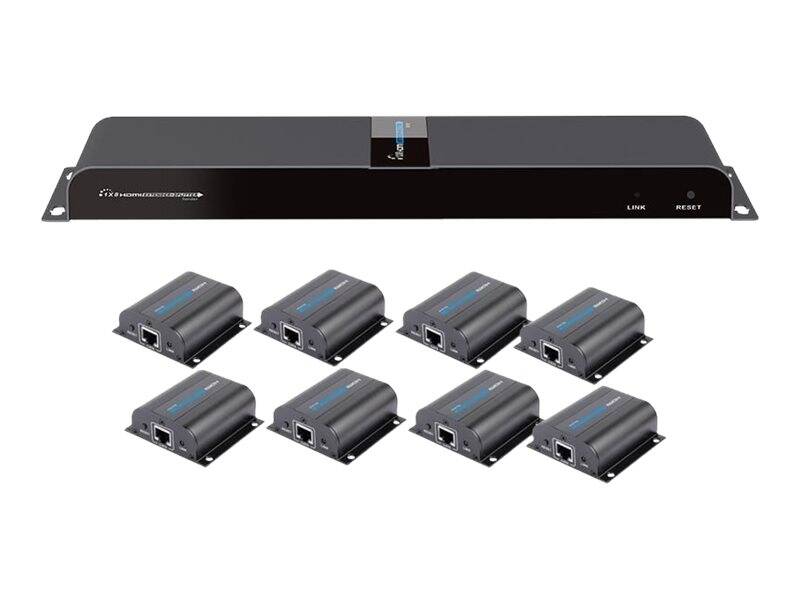

TECHly HDMI 1x8 Extender Splitter over CAT6/6a/7 50m with IR pass-back - Transmitter + 8 receivers - video/audio/infrared extender - HDMI, infrared - over CAT 6/6a/7 - 8 ports - up to 50 m | IDATA-EX-HL81TY
Please sign in so that we can notify you about a reply
Special Fetures
- Distribute 1 HDMI source to 8 HD displays over network cable simultaneously
- Compatible with CAT6/6a/7 network cables
- The highest resolution supported is up to 1080p @ 60 Hz
- Extend HDMI signal up to 50 m/164 ft over CAT6 cable
- Support IR pass back for remote control source device easily
- Uncompressed and zero latency
- Plug-and-Play
Product Specification
| Device Type | Video/audio/infrared extender |
| Form Factor | External |
| Colour | Black |
| Networking | |
| Ports Qty | 8 |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI, infrared |
| Max Resolution | 1920 x 1080 / 1080p @ 60 Hz |
| Max Transfer Distance | 50 m |
| Features | 1080p resolution support |
| Compliant Standards | HDCP 1.2 |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI (input) - 19 pin HDMI Type A ¦ 1 x IR - mini jack ¦ 1 x HDMI (output) - 19 pin HDMI Type A |
| Miscellaneous | |
| Included Accessories | IR transmitter, 8 IR receivers |
| Compliant Standards | Plug and Play, WEEE |
| Power | |
| Power Device | External power adapter |
| Power Consumption Operational | 24 Watt |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details | Transmitter: 27.6 cm x 9.598 cm x 2.3 cm ¦ Receiver: 7.16 cm x 6.66 cm x 2.26 cm |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 60 °C |
Features - Techly - IDATA-EX-HL81TY
Length
50m
More Details
Product Code
04:259985
EAN Code
8054529028207
Manufacturer
Techly
