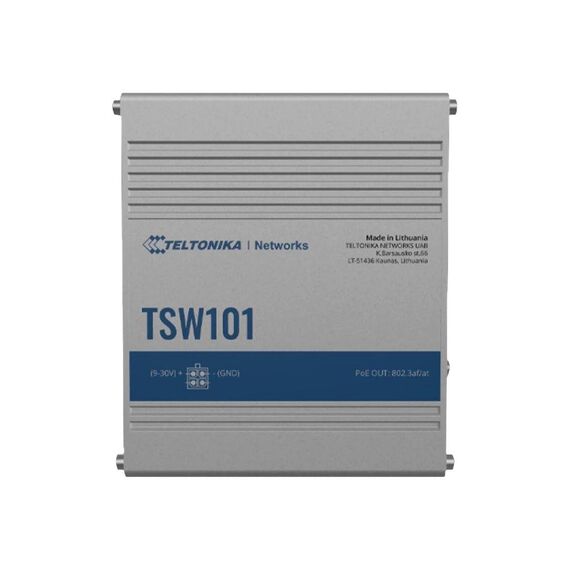

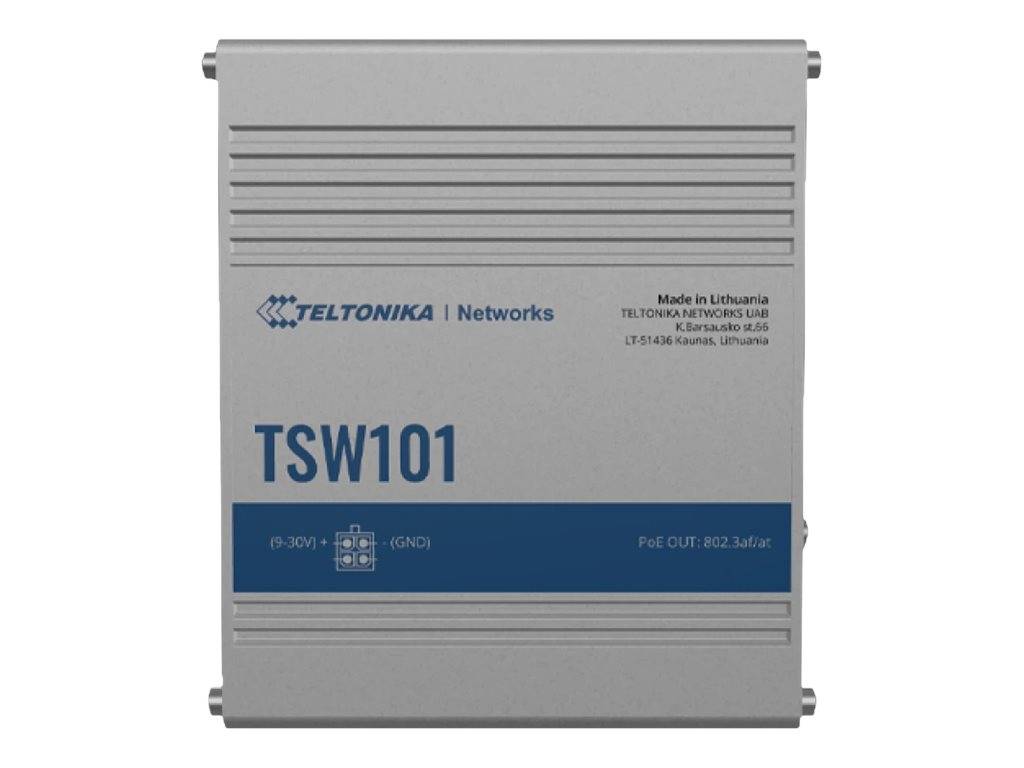

Teltonika TSW101 / Switch / 5 x 10/100/1000 / DIN rail mountable, wall-mountable / PoE+ / DC | TSW101000000
Please sign in so that we can notify you about a reply
Special Features
- Plug-and-Play - no configuration needed
- POE+ - 4 x PoE+ ports with 802.3af and 802.3at support
- Gigabit Ethernet - 5 x Gigabit Ethernet ports with speeds of up to 1000 Mbps
- Industrial design - rugged aluminum housing
Product Specification
| Device Type | Switch - 5 ports |
| Enclosure Type | DIN rail mountable, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 5 x 10/100/1000 |
| Power Over Ethernet (PoE) | PoE+ |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 9216 bytes |
| Features | Aluminium housing |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3az |
| Status Indicators | Power, status |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 5 x RJ-45 |
| Power | Power |
| Voltage Required | DC 9 - 30 V |
| Power Consumption Operational | 2.31 Watt |
| Power Consumption Stand by | 0.64 Watt |
| Miscellaneous | Miscellaneous |
| Compliant Standards | FCC, RoHS, WEEE, REACH, IP30, UKCA |
| Dimensions & Weight | Dimensions & Weight |
| Width | 11.5 cm |
| Depth | 3.2 cm |
| Height | 9.5 cm |
| Weight | 384 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Teltonika - TSW101000000
General
5-Port
More Details
Product Code
07:128178
EAN Code
4779051840113
Manufacturer
Teltonika
