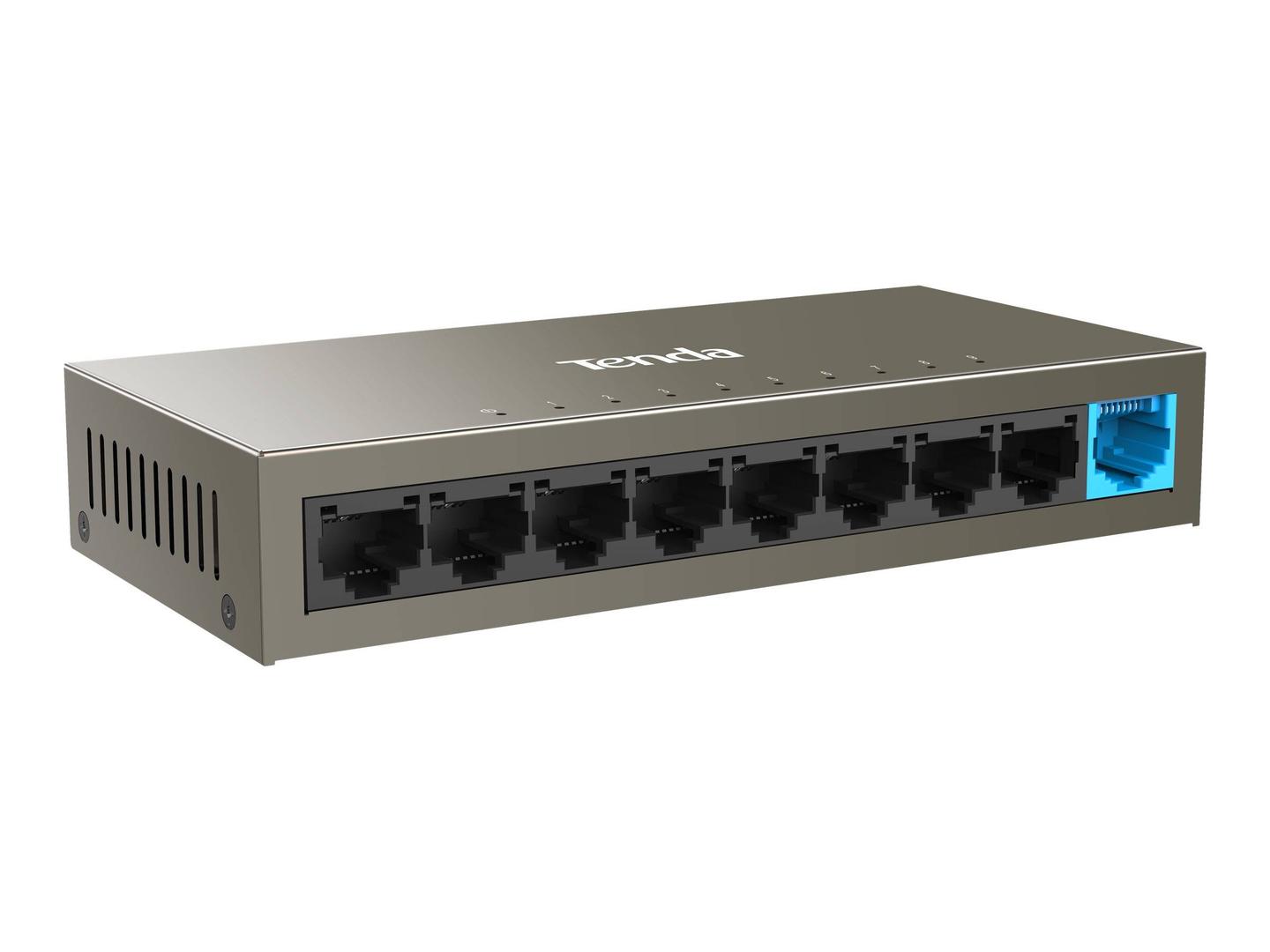

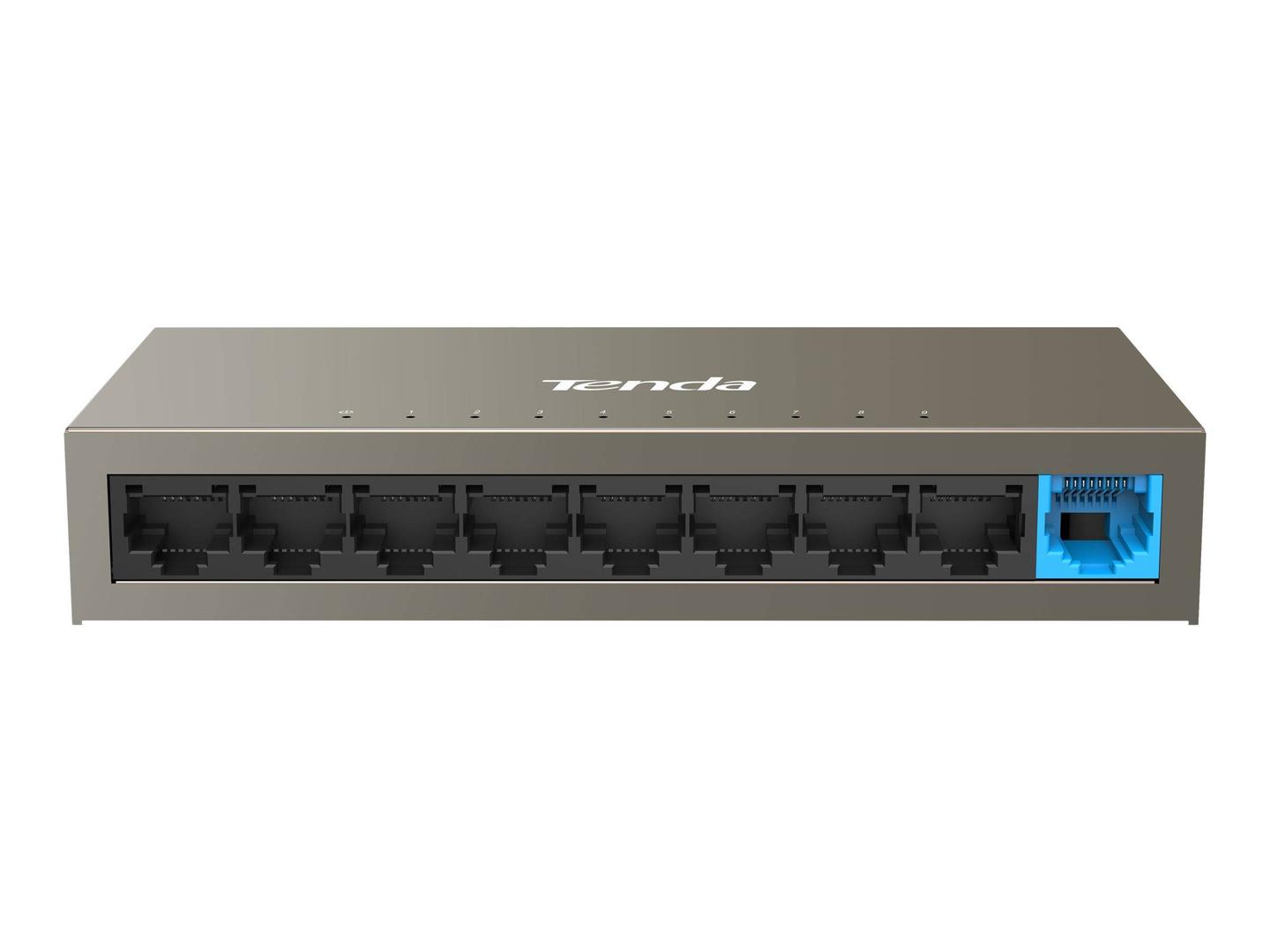

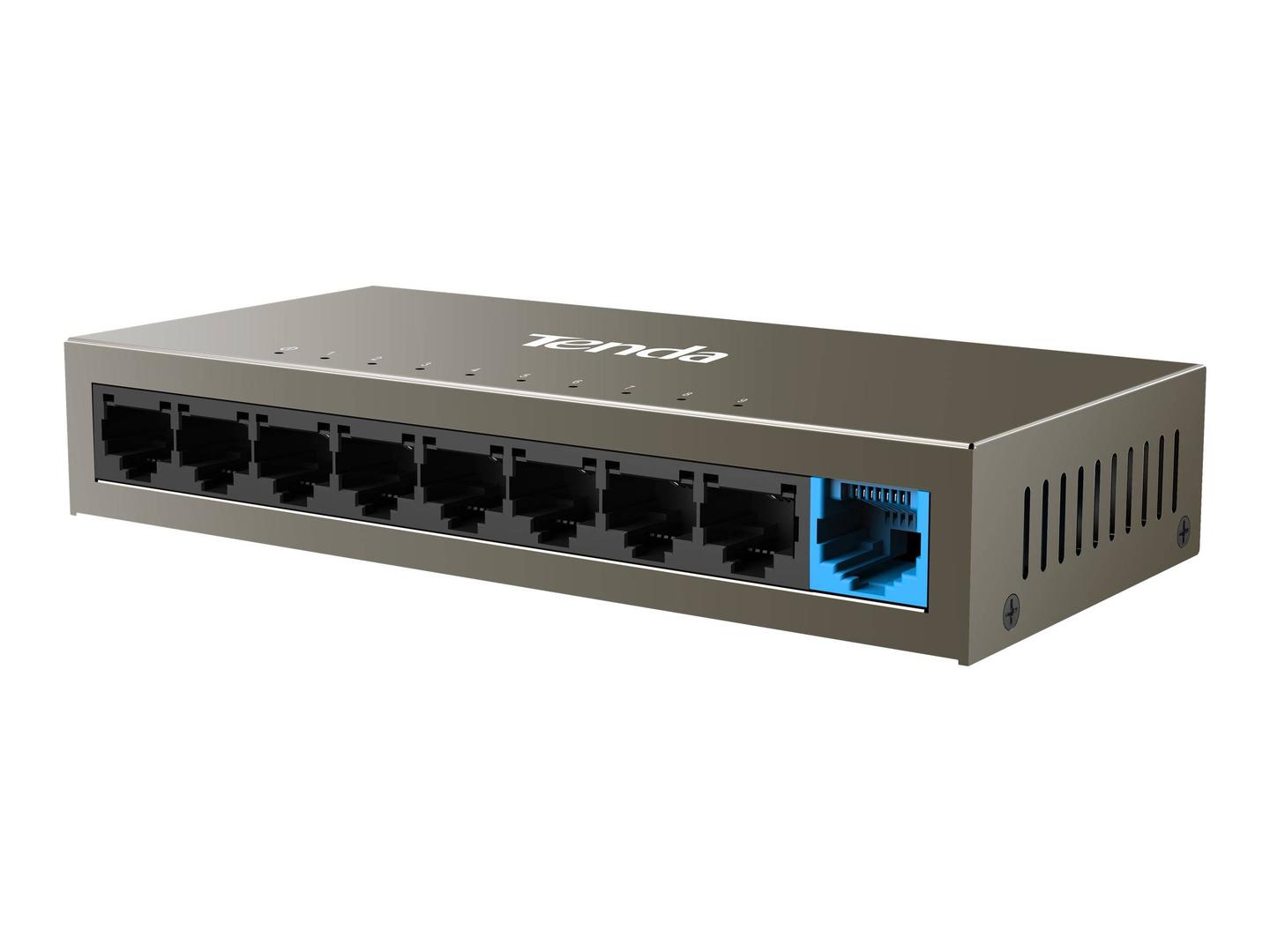

Tenda TEF1109D / Switch / unmanaged / 8 x 10/100 + 1 x 10/100 (uplink) / desktop | TEF1109D
Please sign in so that we can notify you about a reply
Product Features
- Enjoy super HD video screen
Equipped with 1024 KB large packet buffer, it ensures smooth streaming even when eight HD IP cameras of 500W are working simultaneously. - Excellent lightning protection
The switch supports 6 kV lightning protection for uplink port, protecting the switch from thunderstorms and making it more stable. - Transmission distance up to 250 m
With the extension technology, data can be transmitted through 250 meters cable which would be a cost-effective replacement for extenders and optical fibers. - Easy port VLAN setup
With VLAN Mode on, ports 1 to 8 are isolated from each other, enabling the switch to isolate broadcast storm, improving LAN security and data transmission.
Special Features
- Enjoy super HD video screen
- Excellent lightning protection
- Transmission distance up to 250 m
- Easy port VLAN setup
Product Specification
| Device Type | Switch - 9 ports - unmanaged |
| Enclosure Type | Desktop |
| Subtype | Fast Ethernet |
| Ports | 8 x 10/100 + 1 x 10/100 (uplink) |
| Performance | Switching capacity: 1.8 Gbps |
| MAC Address Table Size | 2K entries |
| Features | VLAN support, store and forward, 6KV lightning protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Status Indicators | Power, link/activity |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 8 x 100Base-TX RJ-45 ¦ 1 x 100Base-TX RJ-45 uplink |
| Power | Power |
| Power Device | External power adapter |
| Power Provided | 9 - 12 V |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 5 Watt |
| Miscellaneous | Miscellaneous |
| Compliant Standards | CCC, FCC, RoHS |
| Software / System Requirements | Software / System Requirements |
| OS Required | Apple MacOS, Linux, Microsoft Windows XP / 7 / 8 (32/64 bits) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 14 cm |
| Depth | 6.65 cm |
| Height | 2.53 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |
Features - Tenda - TEF1109D
General
8-Port
More Details
Product Code
04:337197
EAN Code
6932849431636
Manufacturer
Tenda
