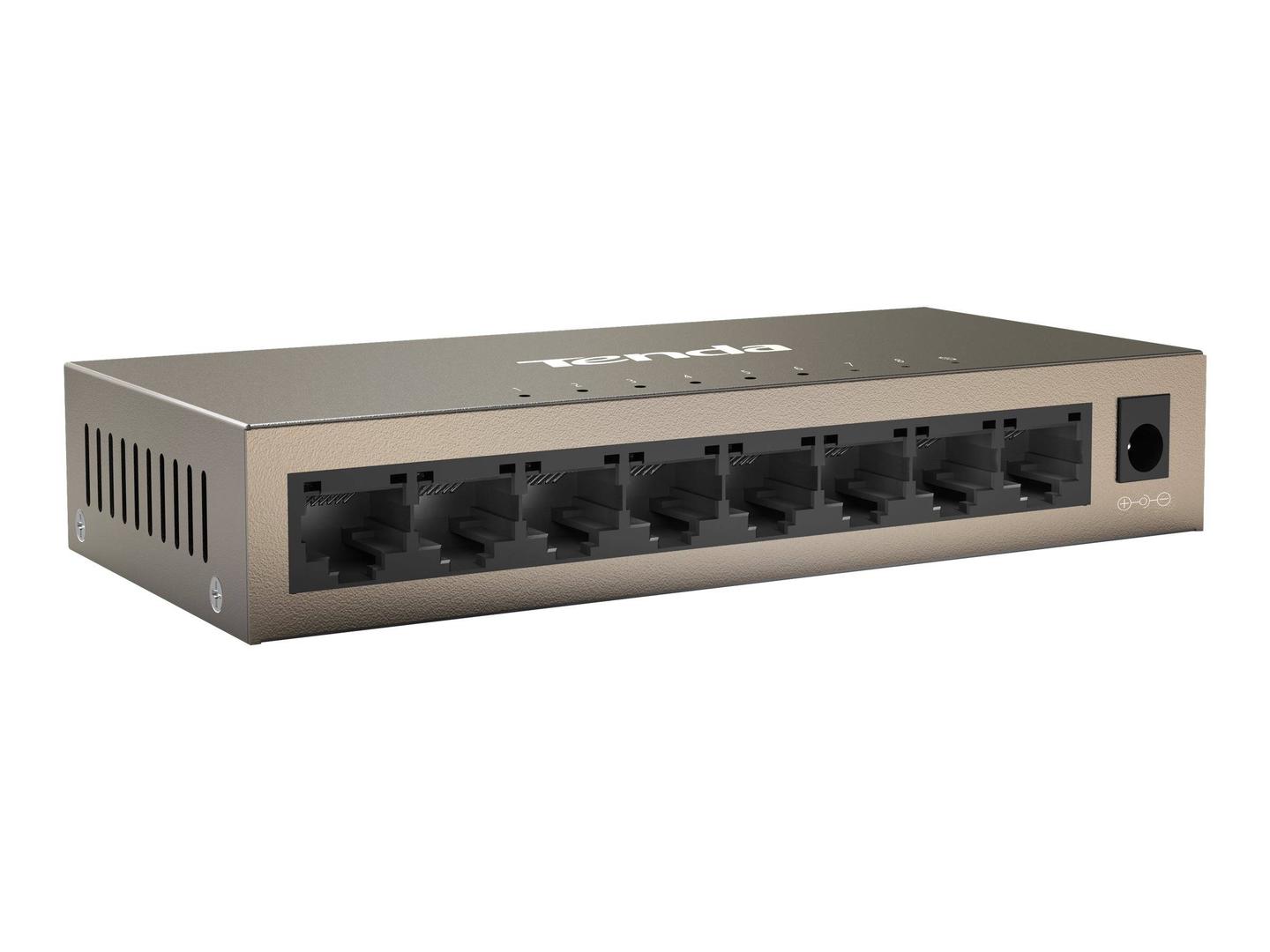

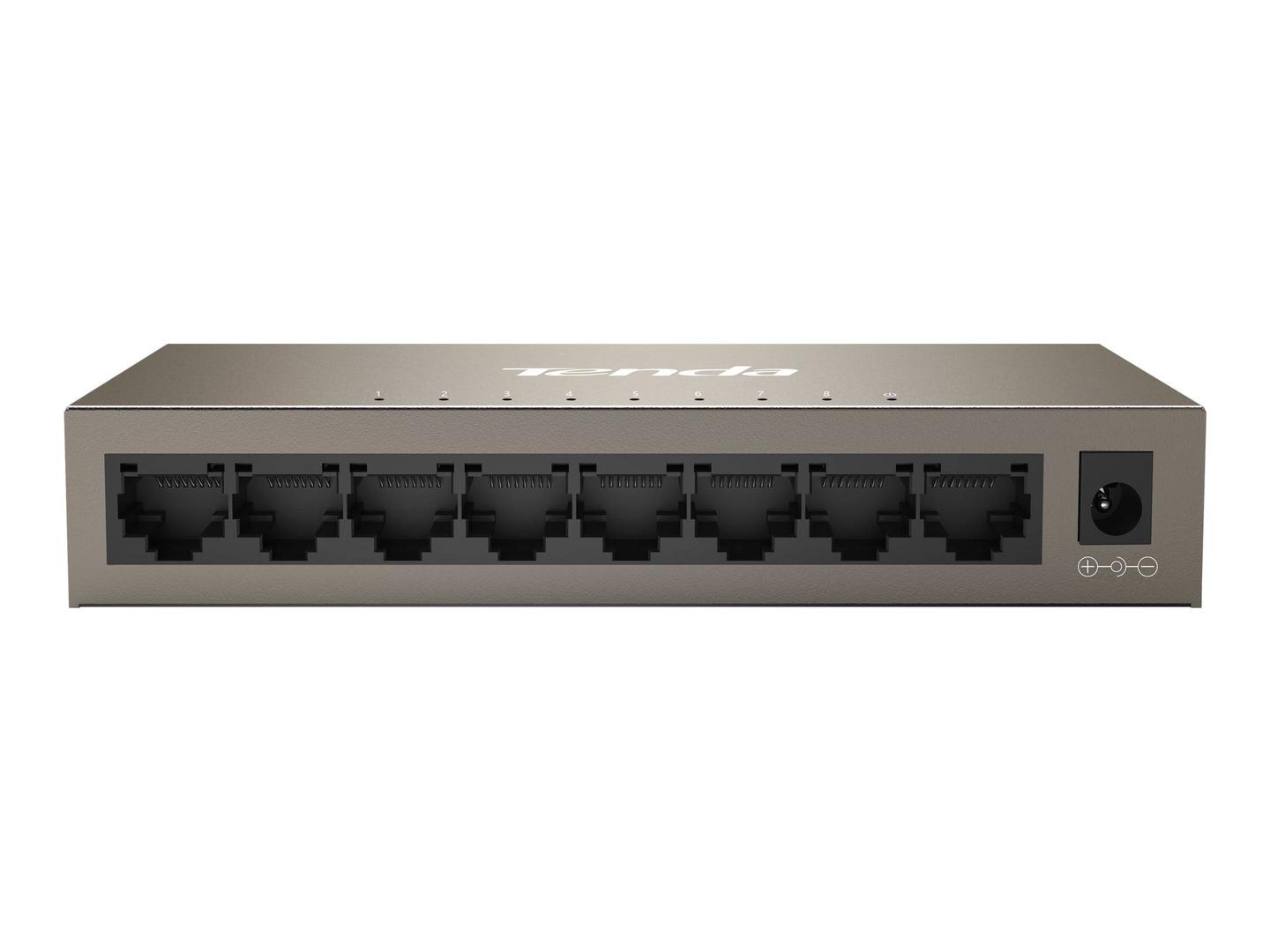

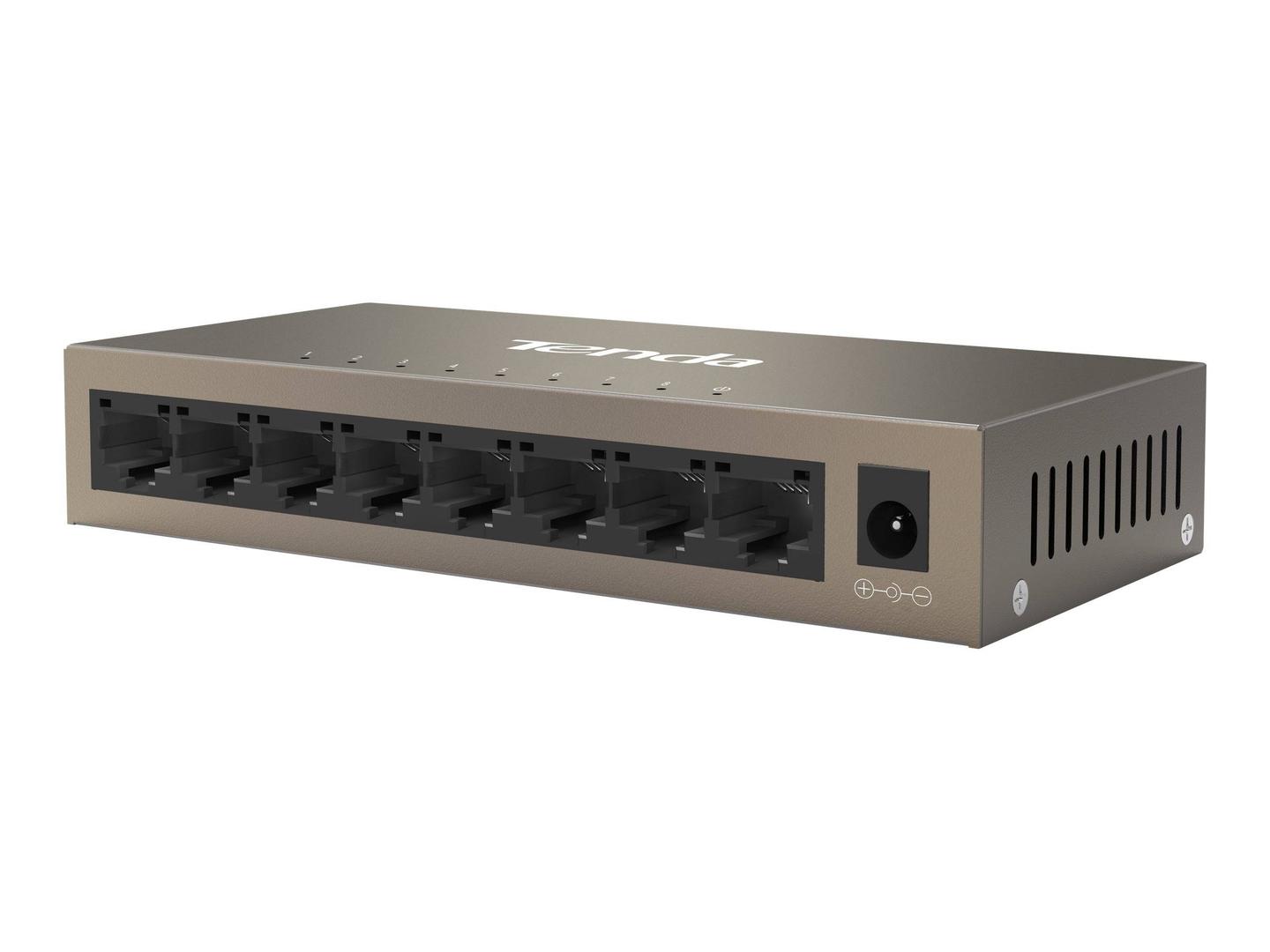

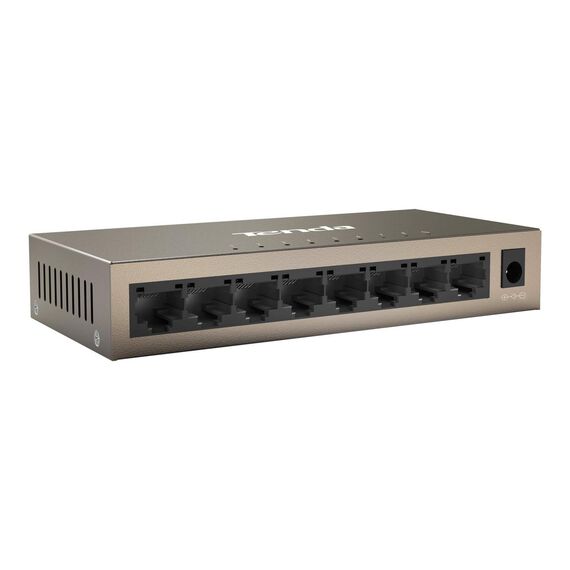

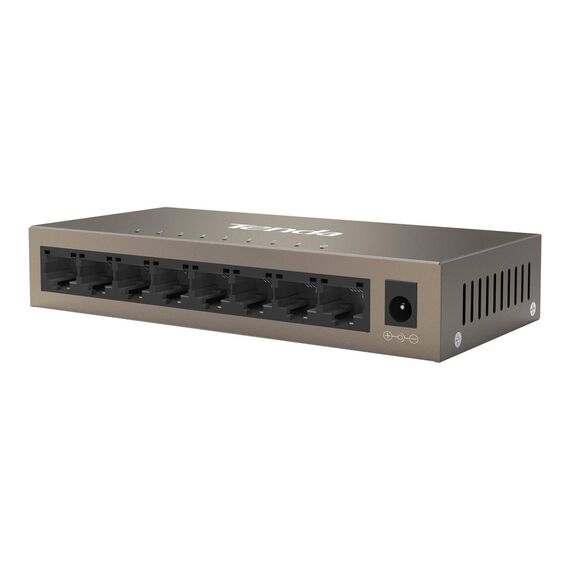

Tenda TEG1008M / Switch / 8 x 10/100/1000 / desktop | TEG1008M
Please sign in so that we can notify you about a reply
Product Features
- Gigabit speed
8 Gigabit ports ensure the speed of the transmission of large files and improve transmission efficiency. - Supports 9-12V DC input
9-12V DC input design supports centralized power supply and monitor power supply.
Special Features
- Gigabit speed
- Supports 9-12V DC input
- Stable operation
Product Specification
| Device Type | Switch - 8 ports |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 |
| Performance | Switching capacity: 16 Gbps ¦ Forwarding rate (10Mbps): 14880 pps ¦ Forwarding rate (100Mbps): 148800 pps ¦ Forwarding rate (1000Mbps): 1488000 pps |
| MAC Address Table Size | 4K entries |
| Features | Auto-negotiation, store and forward, wall mountable, MAC address learning, MAC address aging |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Status Indicators | Power, link/activity |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 8 x 1000Base-T RJ-45 |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | AC 230V (50/60 Hz) |
| Power Consumption Operational | 5 Watt |
| Miscellaneous | Miscellaneous |
| Compliant Standards | Plug and Play, CCC, FCC, RoHS |
| Software / System Requirements | Software / System Requirements |
| OS Required | Apple MacOS, Linux, Microsoft Windows XP / 7 / 8 (32/64 bits) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 14 cm |
| Depth | 6.65 cm |
| Height | 2.53 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |
Features - Tenda - TEG1008M
General
8-Port
More Details
Product Code
04:337217
EAN Code
6932849431650
Manufacturer
Tenda
