Matrox XTO2-F2408F The Matrox Extio F2408 point-to-point, KVM extension solution
The Matrox Extio F2408 point-to-point, KVM extension solution

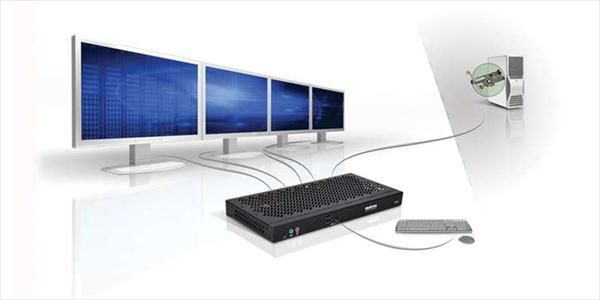

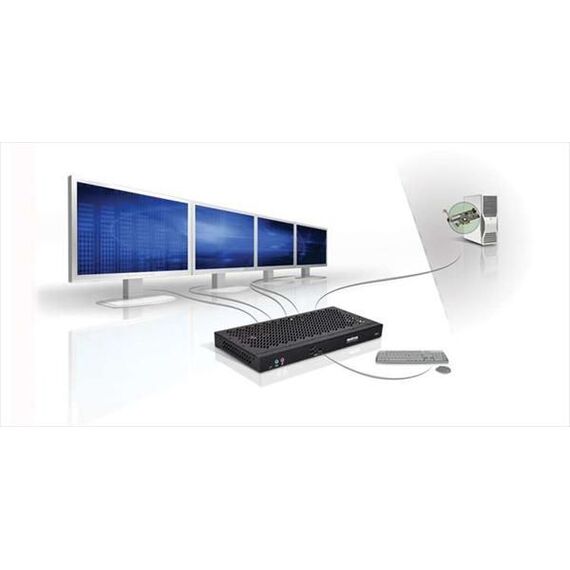

Best-in-Class Quad KVM Optical ExtenderThe Matrox Extio F2408 point-to-point, KVM extension solution separates the keyboard, mouse, audio peripherals and up to 4 displays from the rest of the computer by up to 1 km 3280 feet via fiber-optic cable. The fiber-optic connection allows raw, uncompressed data to travel between the remote host system and the user-side Extio F2408 appliance, resulting in unmatched HD resolution support and uncompromised workstation performance. Designed for industries requiring stable, reliable, and scalable graphics, the Extio F2408 also allows room for expansion. Combine it with the optional Extio F2408E Expander to drive even more mission critical displays up to 8 in all, with a maximum resolution of 2560x1600 per display and this all from a single workstation, fiber-optic cable, and adapter.
Feature list
| Connectivity technology: | Wired |
| Ports quantity: | 4 |
| USB 2.0 ports quantity: | 5 |
| Speaker/ headphone/ line-out jack: | 2 |
| Microphone, line-in jack: | 2 |
| DC-in jack: | Y |
| Keyboard port type: | USB |
| Mouse port type: | USB |
| Video port type: | DisplayPort |
| Number of computers: | 1 |
| Dimensions WxDxH: | 300 x 146 x 28 mm |
| Compliance industry standards: | Class A: ACMA, CE, FCC, VCCI |
| Colour of product: | Black |
| Compatible operating systems: | Matrox drivers for Microsoft® Windows® 7 32/64 bit, Windows Vista 32/64 bit, Windows XP 32/64 bit, Windows Server 2008 R2, Windows Server 2008 32/64 bit with SP2, Windows Server 2003 32/64 bit, and Linux |
| Maximum digital resolution: | 4x2560x1600 pixels |
| I/O ports: | Each Extio F2408 needs oneMatrox Fiber-Optic Interface Card, PCIe x1Part-# XTO2A-FESLPAF |
| Display resolution at frequency: | 4 x 2560x1600 max.Digital support via 4x DisplayPort to Single-Link-DVI adapters included with Extio F2408. Analog support via DisplayPort to Analog VGA adapters available from 3rd party vendors. |
| Technical features: | Graphics memory: 1 GBMaximum distances:OS1, OS2 single-mode 9/125 µm 1 KM / 3280 feetOM1 multi-mode 62.5/125 µm 70 meters / 230 feetOM2 multi-mode 50/125 µm 150 meters / 492 feetOM3 multi-mode 50/125 µm 380 meters / 1247 feetOM4 multi-mode 50/125 µm 400 meters / 1312 feet Extio F2408 ships with multi-mode transceivers supporting a maximum distance of 400m 1312'. Single Mode upgrade kit Part # XTO2-2SMTXF to support distances above 400m 1312' and up to 1 KM 3280' sold separately. |
| Number of simultaneous users: | 1 users |
The Matrox Extio F2408 point-to-point, KVM extension solution
Features - Matrox - XTO2-F2408F
More Details
Product Code
5470382
EAN Code
0790750240541
Manufacturer
Matrox
