Thermaltake POWER PF1 ARGB 1050 / TT Premium Edition / power supply (internal) / ATX12V / 80 PLUS Platinum / 1050 Watt / active PFC / black | PS-TPD-1050F3FAPE-1
PS-TPD-1050F3FAPE-1
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Glow with the flow
The built-in RGB Fan features dual rings with addressable LEDs, great light coverage, and uniform color and brightness to paint your build with millions of colors. - Be seen from various angles
Show off the glamorous illumination through the unique ARGB side panel design and add the wow factor to you build. - Zero-cable platform
Farewell to messy cables! The daughterboards are directly soldered to the motherboard for better heat dissipation and impressive output power quality.
Special Features
- Glow with the flow
- Be seen from various angles
- Zero-cable platform
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V |
| PSU Form Factor | ATX |
| Colour | Black |
| Power Device | Power Device |
| Input Voltage Range | AC 100 - 240 V |
| Frequency Required | 50 - 60 Hz |

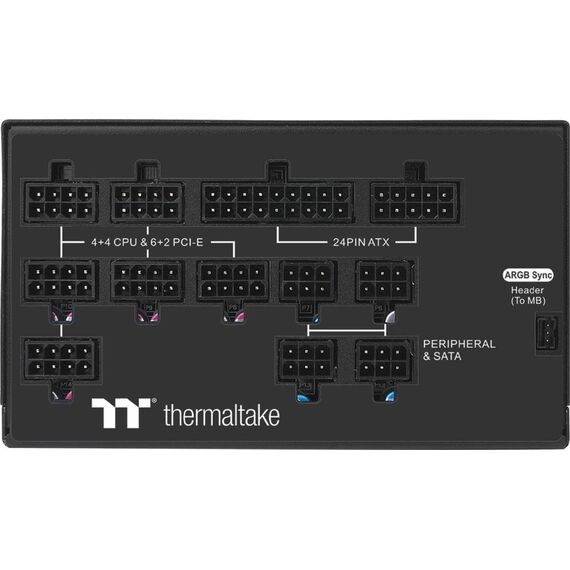

| Power Output Connectors Details | 1 x 4 PIN mini-power connector ¦ 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 12 x 15 pin Serial ATA power ¦ 8 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 PIN internal power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 1050 Watt |
| Output Current | +3.3V - 22 A ¦ +5V - 22 A ¦ +12V - 83.33 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Efficiency | 92% (115VAC) |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Platinum |
| Miscellaneous | Miscellaneous |
| MTBF | 120,000 hours |
| Cooling System | 140 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, short-circuit protection, single 12V rail, DC-DC technology, hydraulic bearing cooling fan, RGB logo, fully modular, Smart Zero Fan, 16.8 million colours RGB fan, anti-vibration fan mounting, undervoltage correction, ASUS Aura Sync, MSI Mystic Light sync, ASRock Polychrome sync, GIGABYTE RGB Fusion 2.0 sync |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 10 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15 cm |
| Depth | 18 cm |
| Height | 8.6 cm |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 35 cm |
| Shipping Depth | 23 cm |
| Shipping Height | 16 cm |
| Shipping Weight | 3.92 kg |
Features - Thermaltake - PS-TPD-1050F3FAPE-1
More Details
Product Code
07:491363
EAN Code
4713227520584
Manufacturer
Thermaltake
