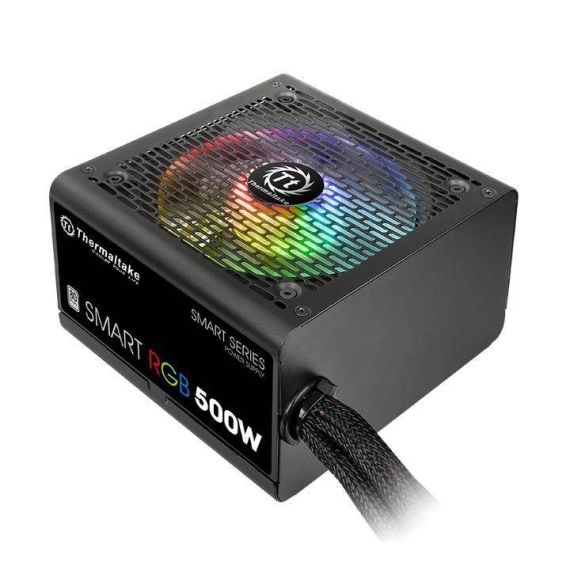

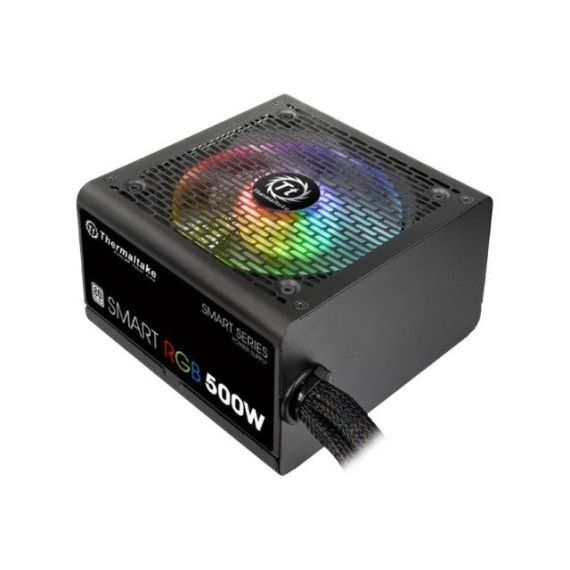

Thermaltake SMART RGB PS-SPR-0500NHSAWE-1 / Power supply (internal) / ATX12V 2.3 / 80 PLUS / AC 230 V / 500 Watt / active PFC / black | PS-SPR-0500NHSAWE-1
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.3 |
| PSU Form Factor | ATX |
| Colour | Black |
| Input Voltage | AC 230 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 PIN internal power ¦ 5 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 500 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 15 A ¦ +12V - 35 A ¦ -12V - 0.5 A ¦ +5VSB - 2.5 A |
| Efficiency | 86% |
| 80 PLUS Certification | 80 PLUS |
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | LED lighting, Power Good Signal |
| Compliant Standards | TUV, CB, ErP Ready, EAC |
| Service & Support | Limited warranty - 5 years |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 85% (non-condensing) |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
Features - Thermaltake - PS-SPR-0500NHSAWE-1
More Details
Product Code
04:242861
EAN Code
4711246870451
Manufacturer
Thermaltake
