Thermaltake TOUGHAIR 510 / Processor cooler / (for: LGA1156, AM2, AM2+, AM3, LGA1155, AM3+, FM1, FM2, LGA1150, LGA1151, AM4, LGA1200) / aluminium / 120 mm | CL-P075-AL12BL-A
Product Features

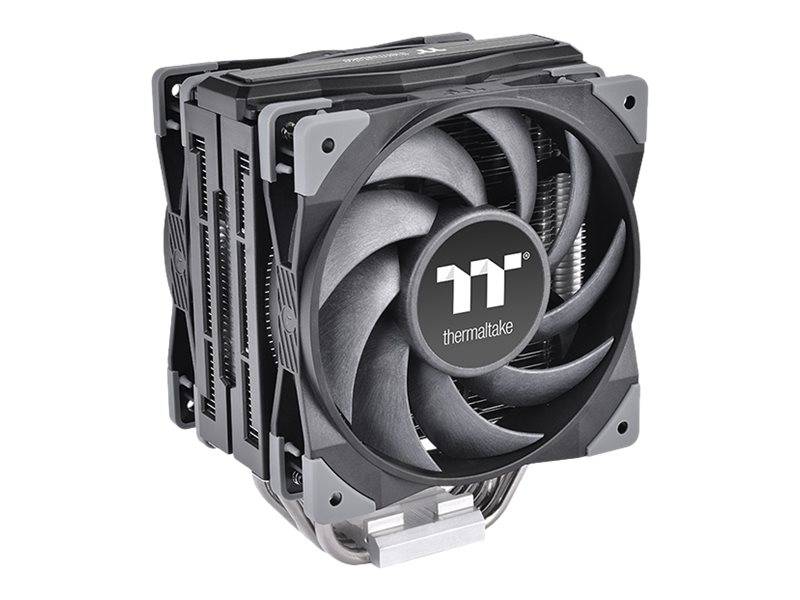

- Single tower dual fan design
TOUGHAIR 510 is a single tower duel fan designed air cooler with 4 heat pipes running through the fins, the U-shape heat pipes increase heat circulation creating better heat dissipation in your system and supports up to 180W. - Enhanced 120 mm high static pressure fan
TOUGHAIR series utilizes high static pressure fans, which leverages the TOUGHFAN 12 design and boosts the fan speed to 2000 RPM, providing a new level of cooling performance to CPU cooler. - Asymmetric fin structure
The fin is designed with an asymmetric structure that allows larger air intake through the fins. This design lowers the air turbulence and straightens out the airflow making it easier to disperse heat from the fins, delivering superb cooling performance. - High-performance U-shape copper heat pipes

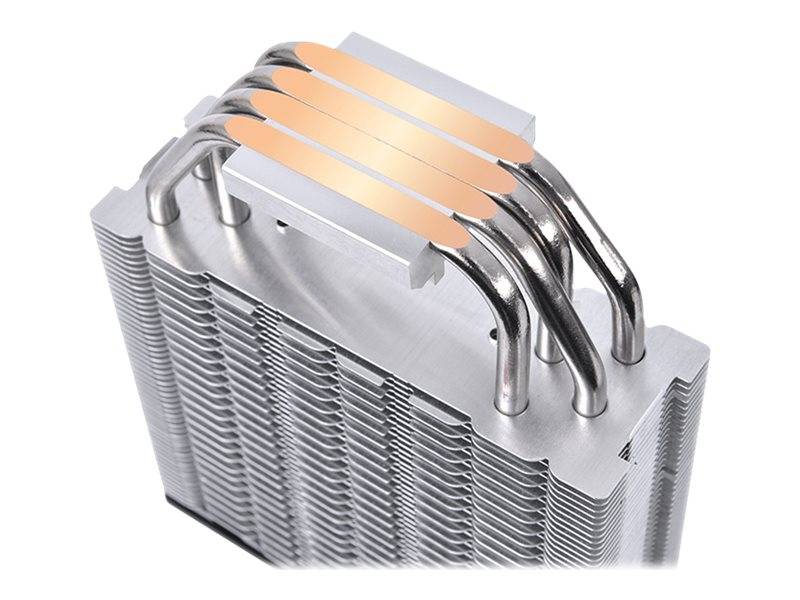

4 x Ø6 mm heat pipes directly touch the CPU and thermal paste. The U-shape design creates perfect circulation for better CPU cooling performance. - Universal compatibility
TOUGHAIR Series are designed to fit Intel and AMD sockets including the following models: Intel LGA 1200/1156/1155/1151/1150; AMD AM4/AM3+/AM3/AM2+/AM2/FM2/FM1.
Special Features
- Single tower dual fan design
- Enhanced 120 mm high static pressure fan
- Asymmetric fin structure
- High-performance U-shape copper heat pipes
- Universal compatibility
Product Specification
Product Type | Processor cooler |
Width | 12.36 cm |
Depth | 9.88 cm |
Height | 15.95 cm |
Heatsink & Fan | Heatsink & Fan |
Compatible With | LGA1156 Socket, Socket AM2, Socket AM2+, Socket AM3, LGA1155 Socket, Socket AM3+, Socket FM1, Socket FM2, LGA1150 Socket, LGA1151 Socket, Socket AM4, LGA1200 Socket |
Heatsink Material | Aluminium |
Fans Qty | 2 |
Fan Diameter | 120 mm |
Fan Height | 25 mm |
Rotation Speed | 500-2000 rpm |
Noise Level | 23.6 dBA |
Power Connector | 4-pin fan connector |
Rated Voltage | 12 V |
Start Voltage | 6 V |
Rated Current | 0.48 A |
Features | 4 copper heatpipes (6 mm) |
Miscellaneous | Miscellaneous |

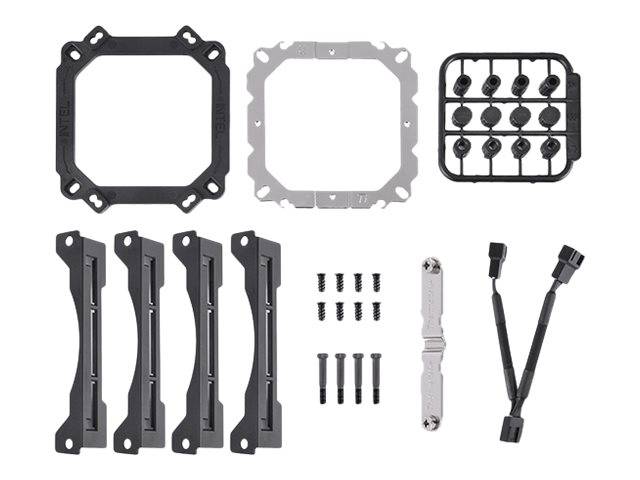

Mounting Kit | Included |
MTBF | 40,000 hour(s) |
