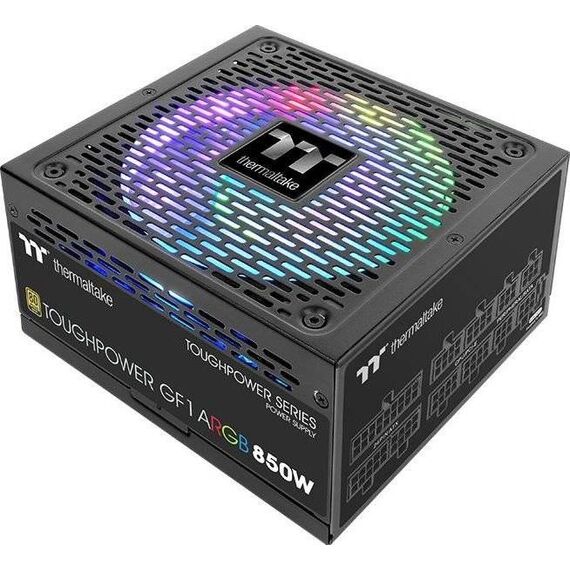

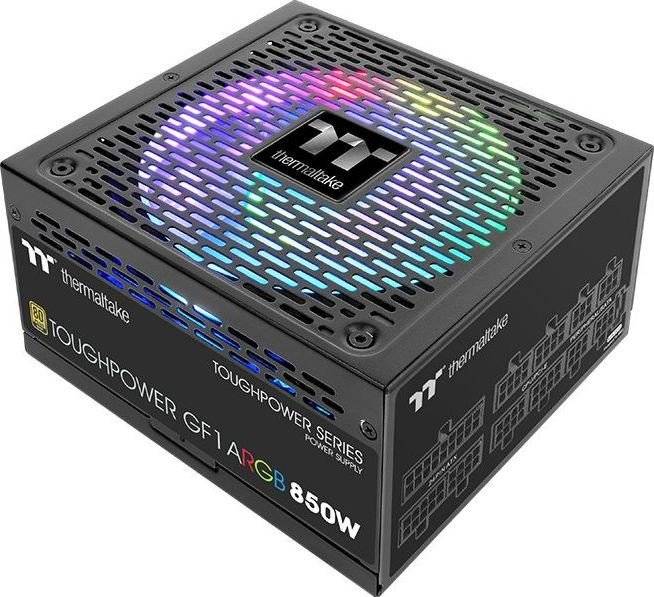

Thermaltake ToughPower GF1 ARGB 850W / TT Premium Edition / power supply (internal) / ATX12V / 80 PLUS Gold / 850 Watt / active PFC | PS-TPD-0850F3FAGE-1
Please sign in so that we can notify you about a reply
Product Features
- Illuminate with twisting blade

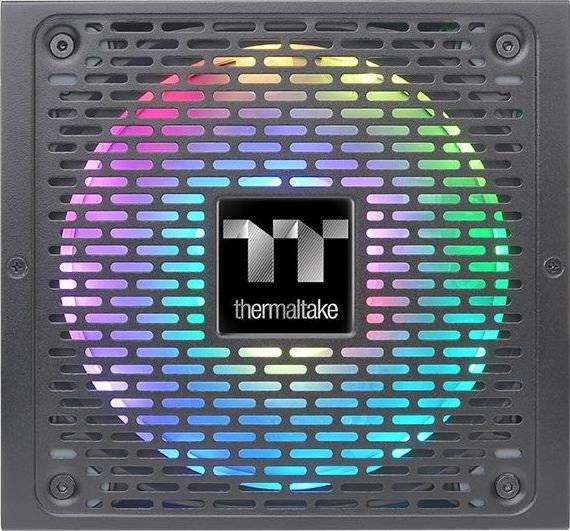

The built-in RGB Fan features dual rings with addressable LEDs, great light coverage, and uniform color and brightness to paint your build with colors. - Shining from perfect circles
Show off the fascinating illumination through the unique ARGB side cover design and add the amazing effect on your build. - Zero-cable platform
Farewell to messy cables! The daughterboards are directly soldered to the motherboard for better heat dissipation and impressive output power quality. - Quiet fan
With the smart fan, noise is greatly minimized. A user-friendly switch is set on the back panel for those who prefer the fan to spin constantly.
Special Features
- Illuminate with twisting blade
- Shining from perfect circles
- Zero-cable platform
- Quiet fan
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V |
| PSU Form Factor | ATX |
| Power Device | Power Device |
| Input Voltage Range | AC 100 - 240 V |
| Frequency Required | 50 - 60 Hz |

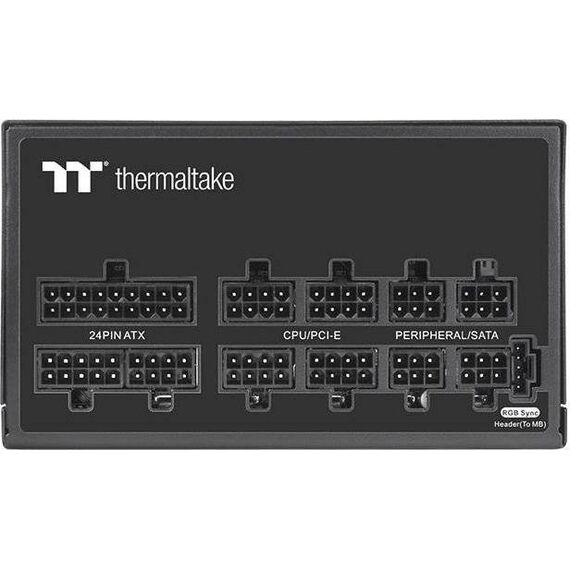

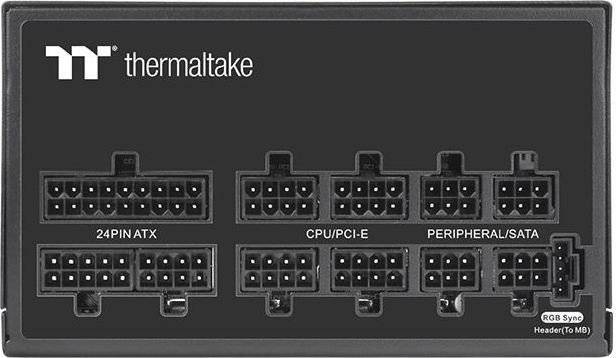

| Power Output Connectors Details | 1 x 4 PIN mini-power connector ¦ 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 12 x 15 pin Serial ATA power ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 PIN internal power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 850 Watt |
| Output Current | +3.3V - 22 A ¦ +5V - 22 A ¦ +12V - 70.9 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Efficiency | 90% |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | Miscellaneous |
| MTBF | 120,000 hours |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, short-circuit protection, single 12V rail, fully modular, Smart Zero Fan, 16.8 million colours RGB fan, undervoltage correction, ASUS Aura Sync, MSI Mystic Light sync, ASRock Polychrome sync, GIGABYTE RGB Fusion 2.0 sync |
| Compliant Standards | TUV, BSMI, CCC, FCC, S Mark, cTUVus, EAC |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 10 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15 cm |
| Depth | 16 cm |
| Height | 8.6 cm |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 32.5 cm |
| Shipping Depth | 23 cm |
| Shipping Height | 16 cm |
| Shipping Weight | 3.1 kg |
Features - Thermaltake - PS-TPD-0850F3FAGE-1
More Details
Product Code
07:491356
EAN Code
4713227521314
Manufacturer
Thermaltake
