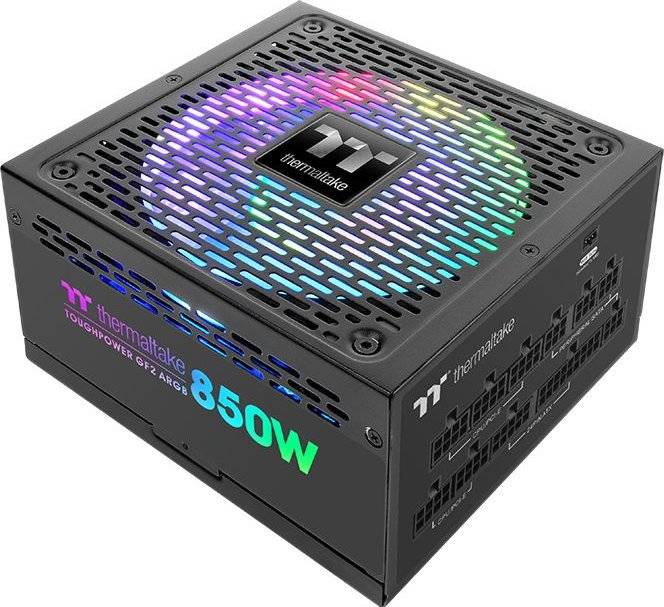

Thermaltake ToughPower GF2 ARGB TTP-850AH3FSG-A / TT Premium Edition / power supply (internal) / ATX12V / 80 PLUS Gold / 850 Watt / active PFC / black | PS-TPD-0850F3FAGE-2
Please sign in so that we can notify you about a reply
Product Features

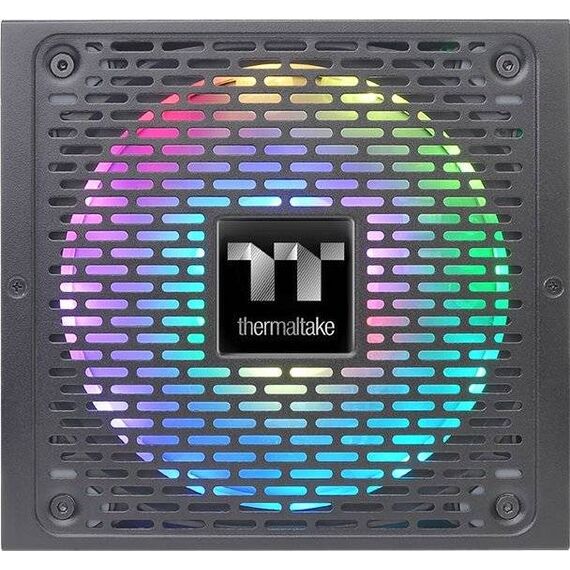

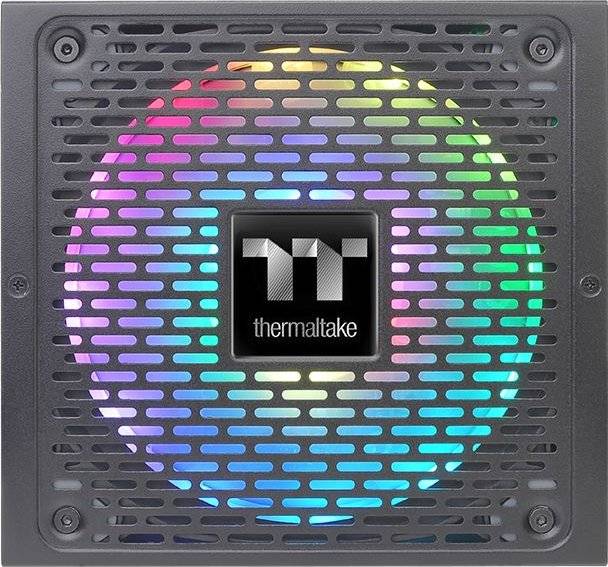

- ARGB side panels and Riing Duo 140 mm RGB fan
Show off the glamorous illumination through the unique ARGB Side Panel design, enables you to enjoy the RGB glory from every angle. Moreover, the built-in Riing Duo 140 mm RGB fan features dual rings with 18 addressable LEDs, great light coverage, and uniform color and brightness to paint your build with 16.8 million colors. - Smart Zero Fan
Designed with the Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise. - Fully modular low-profile flat cable
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat cable makes cable management easier, reduces clutter and increases airflow inside the chassis. - High amperage single +12V rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.
Special Features
- ARGB side panels and Riing Duo 140 mm RGB fan
- Smart Zero Fan
- Fully modular low-profile flat cable
- High amperage single +12V rail
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V |
| PSU Form Factor | ATX |
| Colour | Black |
| Power Device | Power Device |
| Input Voltage Range | AC 100 - 240 V |
| Frequency Required | 50 - 60 Hz |

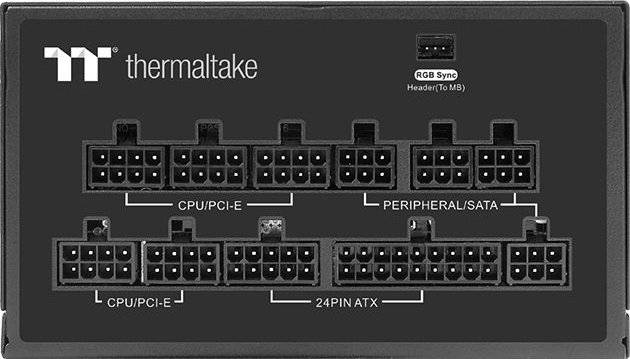

| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 12 x 15 pin Serial ATA power ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 PIN internal power ¦ 1 x power 8 pin +12V |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 850 Watt |
| Output Current | +3.3V - 22 A ¦ +5V - 22 A ¦ +12V - 70.9 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | Miscellaneous |
| Included Accessories | 150mm floppy adapter |
| MTBF | 100,000 hours |
| Cooling System | 140 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, short-circuit protection, single 12V rail, hydraulic bearing cooling fan, fully modular, Smart Zero Fan, 16.8 million colours RGB fan, undervoltage correction, ASUS Aura Sync, MSI Mystic Light sync, ASRock Polychrome sync, GIGABYTE RGB Fusion 2.0 sync |
| Compliant Standards | TUV, C-Tick, BSMI, FCC, S Mark, cTUVus, EAC |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 10 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15 cm |
| Depth | 16 cm |
| Height | 8.6 cm |
Features - Thermaltake - PS-TPD-0850F3FAGE-2
More Details
Product Code
07:491358
EAN Code
4713227527262
Manufacturer
Thermaltake
