Thermaltake ToughPower GF3 / TT Premium Edition / power supply (internal) / RGB fan / ATX12V 3.0 / 80 PLUS Gold / 850 Watt / active PFC / black | PS-TPD-0850F4FAGE-1
PS-TPD-0850F4FAGE-1
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Efficient cooling

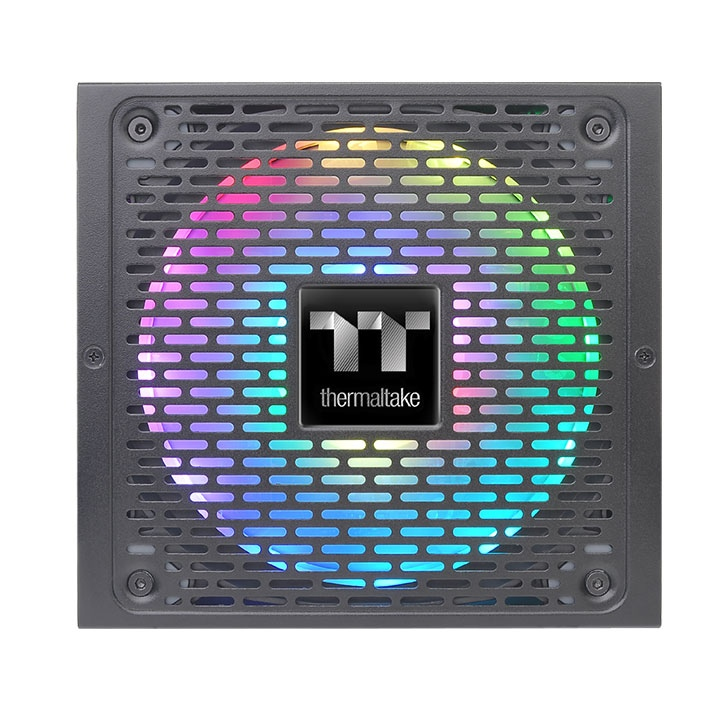

Equipped with a 140 mm hydraulic bearing cooling fan, the Thermaltake ToughPower GF3 ensures optimal thermal performance, keeping your system cool under heavy loads without compromising on silence. - Robust power delivery
With an impressive 850 W of power and a single 12V rail design, this power supply delivers stable and reliable power to all components, supporting high-end PC builds. - Advanced modularity
Fully modular with low-profile flat cables, the Thermaltake ToughPower GF3 offers a clean and easy installation process, enhancing airflow and aesthetic appeal in your PC build. - Gold standard efficiency
Achieving 80 PLUS Gold certification, this power supply operates at a minimum of 90% efficiency at 50% load, reducing electricity usage and operating cost. - Comprehensive protection
Incorporating high-quality capacitors and advanced DC-DC technology, it provides tight voltage regulation and protection against overcurrent, ensuring longevity and reliability.
Special Fetures
- 140 mm hydraulic bearing cooling fan for efficient thermal performance
- 850 W of power with a single 12V rail for stable and reliable power delivery
- Fully modular with low-profile flat cables for a neat installation
- 80 PLUS Gold certified for efficient operation
- High-quality capacitors and advanced DC-DC technology for durability and reliability
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 3.0 |
| PSU Form Factor | ATX |
| Colour | Black |
| Power Device | |
| Input Voltage Range | AC 100 - 240 V |
| Frequency Required | 50 - 60 Hz |

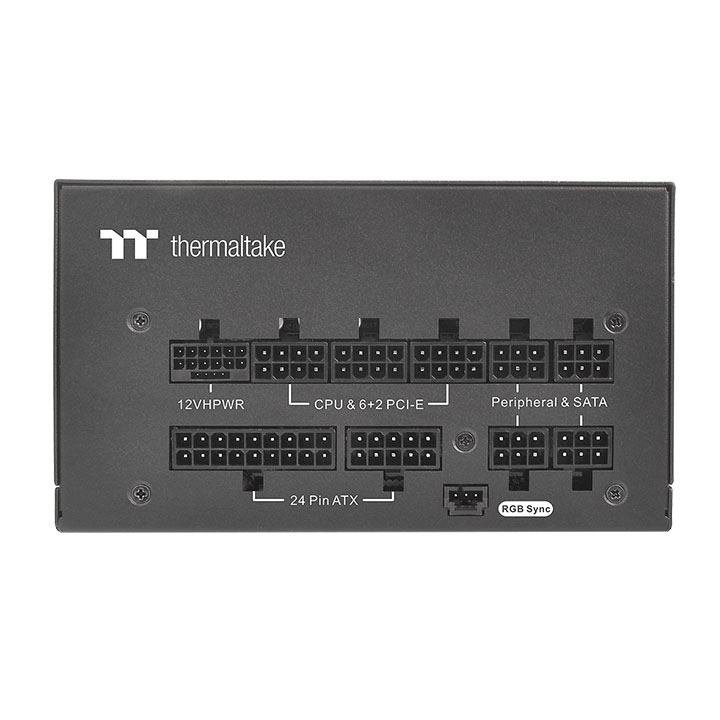

| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section <br /> 2 x power 8 pin +12V with detachable 4 pin section <br /> 4 x 8 pin PCI Express power with detachable 2 pin section <br /> 1 x 12+4 pin PCI Express 5.0 power <br /> 12 x SATA connector <br /> 4 x 4 PIN internal power <br /> 1 x FDDI multi-mode |
| Output Voltage | +3.3, +5, ±12 V, -12V, +5Vsb V |
| Power Capacity | 850 Watt |
| Output Current | +3.3V - 20 A <br /> +5V - 20 A <br /> +12V - 70.8 A <br /> -12V - 0.3 A <br /> +5VSB - 3 A |
| Efficiency | 90% |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | |
| MTBF | 100,000 hours |
| Cooling System | 140 mm fan |
| Features | ARGB lighting effects, max current 15A, hydraulic bearing cooling fan, low profile flat plug, Intel C6/C7 Sleep State compatible, single 12V rail, fully modular, DC-DC technology, High Quality Capacitor, tight voltage regulation, Smart Zero Fan |
| Compliant Standards | FCC, UKCA, ICES, LVD, TUV, cTUVus, CB, CCC, BSMI |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 15 cm |
| Depth | 16 cm |
| Height | 8.6 cm |
| Weight | 1.62 kg |
Features - Thermaltake - PS-TPD-0850F4FAGE-1
More Details
Product Code
05:129350
EAN Code
4713227535434
Manufacturer
Thermaltake
