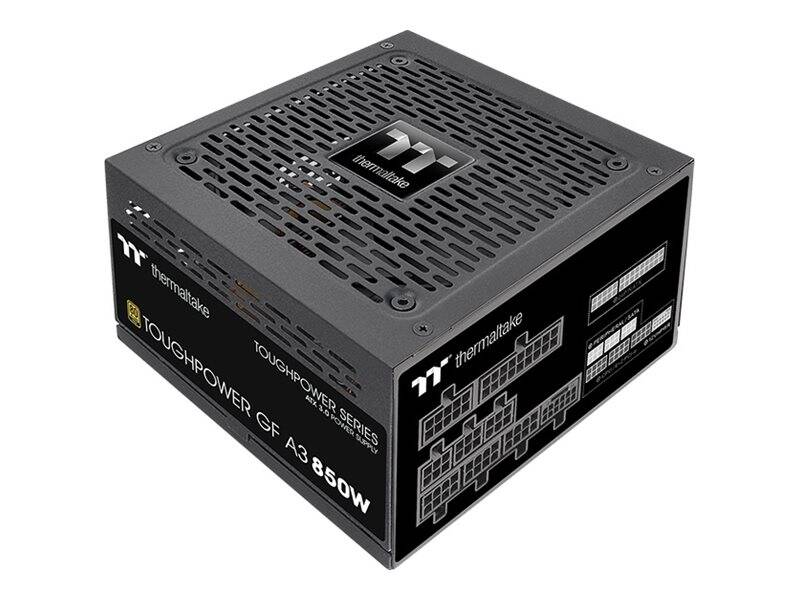

Thermaltake ToughPower GF3 A3 - TT Premium Edition - power supply (internal) - ATX12V 3.0 - 80 PLUS Gold - AC 100-240 V - 850 Watt - active PFC - black | PS-TPD-0850FNFAGE-H
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 3.0 |
| PSU Form Factor | ATX |
| Colour | Black |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power ¦ 1 x 12VHPWR ¦ 1 x 4 PIN internal power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 850 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 70.8 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Efficiency | 90% |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | |
| Cables Included | AC power cable ¦ Power 24 pin ATX with detachable 4 pin section modular cable 60 cm ¦ Power 8 pin +12V with detachable 4 pin section modular cable 65 cm ¦ 2 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable 50 cm ¦ 16-pin 12VHPWR power cable 60 cm ¦ 2 x power 15 pin SATA cable 50 cm ¦ 4 pin internal power cable 50 cm ¦ Floppy cable 15 cm |
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, single 12V rail, DC-DC technology, Smart Zero Fan Switch, High Quality Capacitor |
| Compliant Standards | TUV, BSMI, CB, CCC, FCC, ICES, cTUVus, LVD, UKCA |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 5 - 85% (non-condensing) |
| Dimensions & Weight | |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
Features - Thermaltake - PS-TPD-0850FNFAGE-H
More Details
Product Code
04:432011
EAN Code
4713227537513
Manufacturer
Thermaltake
