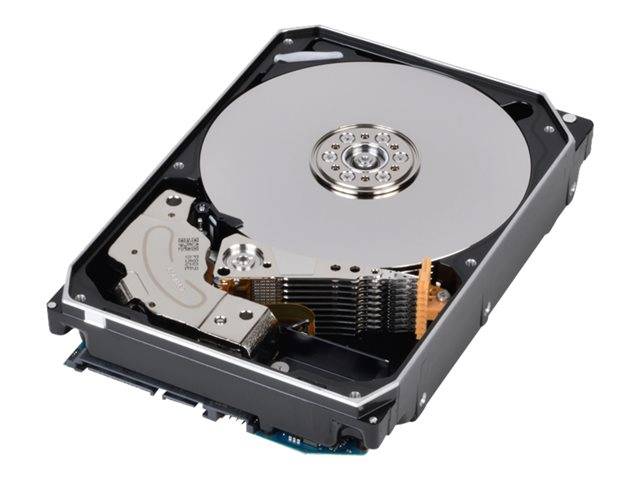

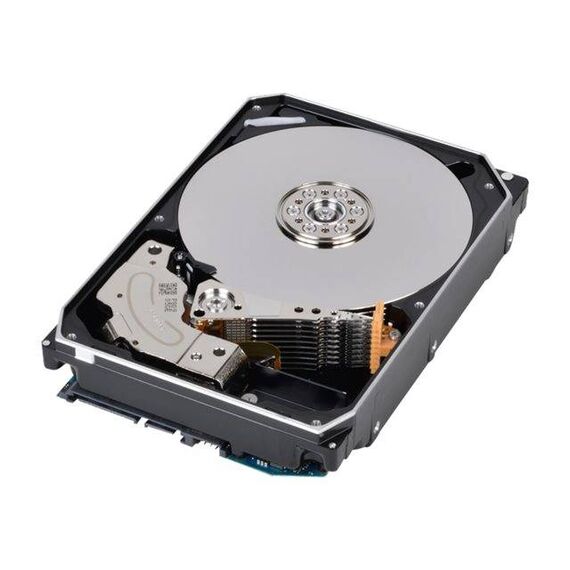

Toshiba MG08 Series MG08ACA16TE / Hard drive / 16 TB / internal / 3.5" / SATA 6Gb/s / 7200 rpm / buffer: 512 MB | MG08ACA16TE
Toshiba MG08 Series MG08ACA16TE / Hard drive / 16 TB / internal / 3.5" / SATA 6Gb/s / 7200 rpm / buffer: 512 MB | MG08ACA16TE
Description
Using an advanced 9-disk design pioneered by Toshiba, the MG08 Series provides great conventional magnetic recording (CMR) capacity and 7,200 rpm performance. The industry-standard 3.5-inch form-factor integrates easily into cloud-scale storage infrastructure, business-critical servers and storage, and File and Object storage solutions. Toshiba's precision industrial laser welding technology is put to use to seal helium inside the 9-disk mechanics. The massive capacity is delivered using proven CMR recording technology providing optimum application compatibility and data reliability. The MG08 Series models integrate easily into standard 3.5-inch drive bays to help reduce the footprint and operational burden of cloud-scale storage infrastructure, and business critical servers and storage systems.
Toshiba MG08 Series MG08ACA16TE / Hard drive | MG08ACA16TE
Special Features
- Industry standard 3.5-inch 26.1 mm height form factor
- Conventional Magnetic Recording (CMR) for broad compatibility
- 9-disk helium-sealed design for superior storage density
- 7,200 rpm performance
Product Specification
Device Type | Hard drive - internal |
Capacity | 16 TB |
Form Factor | 3.5" |
Interface | SATA 6Gb/s |
Buffer Size | 512 MB |
Features | Advanced format 512e, 24x7 availability, Persistent Write Cache technology, power loss data protection, Conventional magnetic recording (CMR), Helium Sealed-Drive Design |
Width | 101.85 mm |
Depth | 147 mm |
Height | 26.1 mm |
Weight | 720 g |
Drive Transfer Rate | 600 MBps (external) |
Spindle Speed | 7200 rpm |
MTBF | 2,500,000 hours |
24x7 Operation | Yes |
Non-Recoverable Errors | 10 per 10^16 |
Load / Unload Cycles | 600,000 |
Interfaces | 1 x SATA 6 Gb/s |
Compatible Bay | 3.5" |
Service & Support | Limited warranty - 5 years |
Min Operating Temperature | 5 °C |
Max Operating Temperature | 55 °C |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 70 °C |
Humidity Range Operating | 5 - 90% (non-condensing) |
Shock Tolerance (operating) | 70 g @ 2 ms |
Shock Tolerance (non-operating) | 250 g @ 2 ms |
Vibration Tolerance (operating) | 0.75 g @ 5-300 Hz |
Vibration Tolerance (non-operating) | 3 g @ 5-500 Hz |
Features - Toshiba - MG08ACA16TE
- 3.5"
- Internal
- SATA
