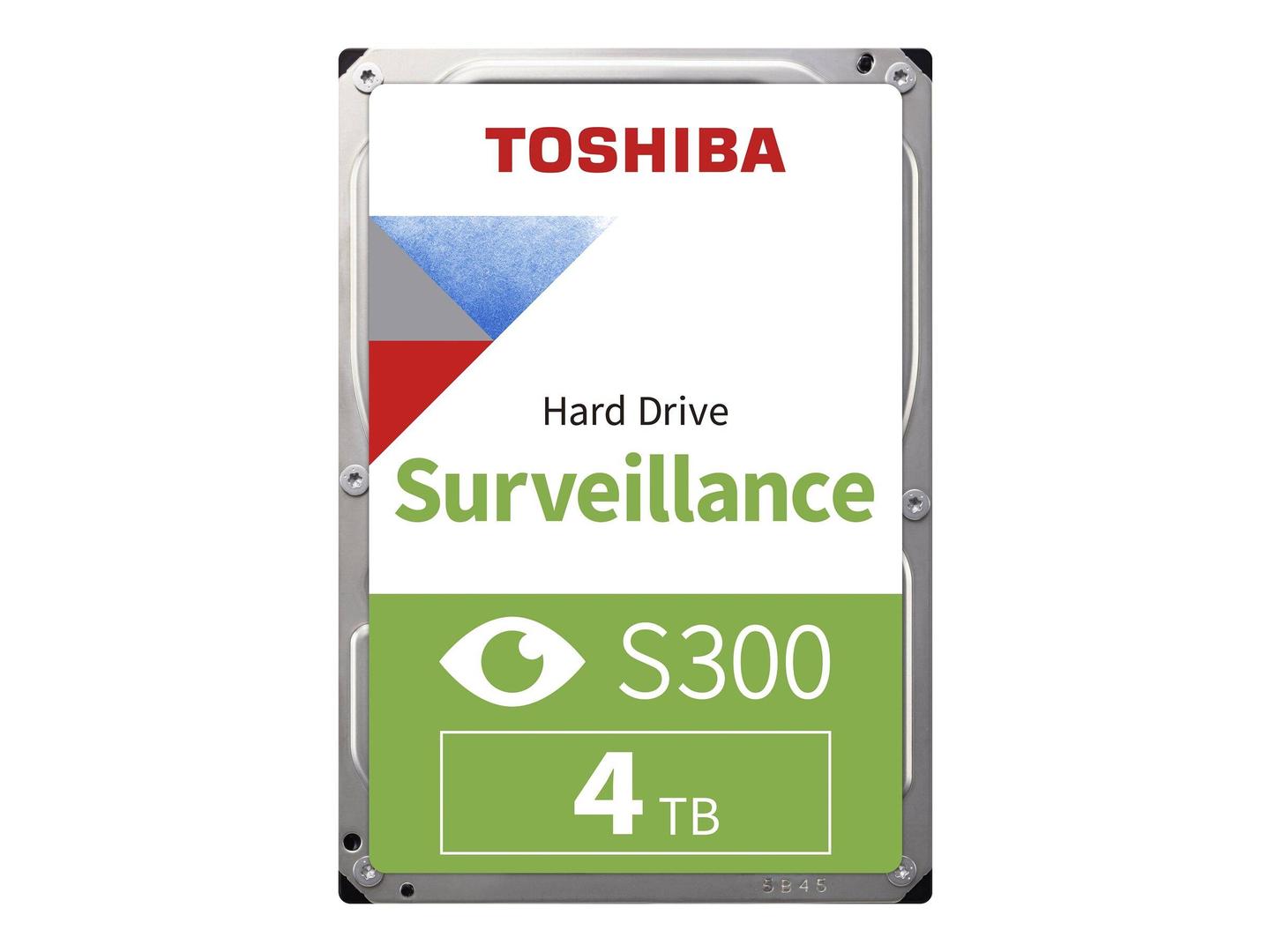

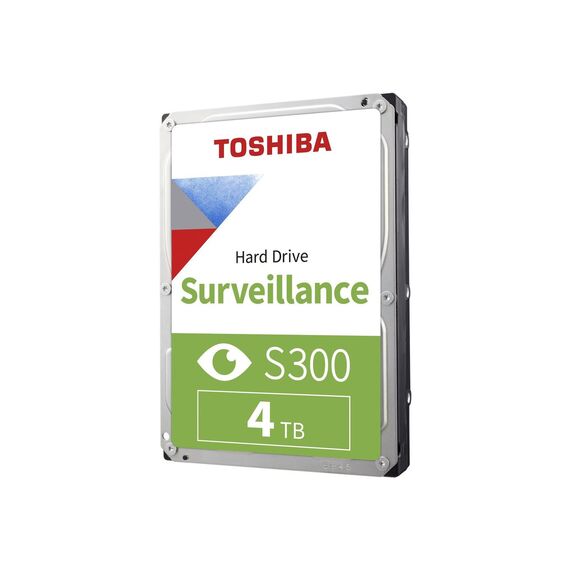

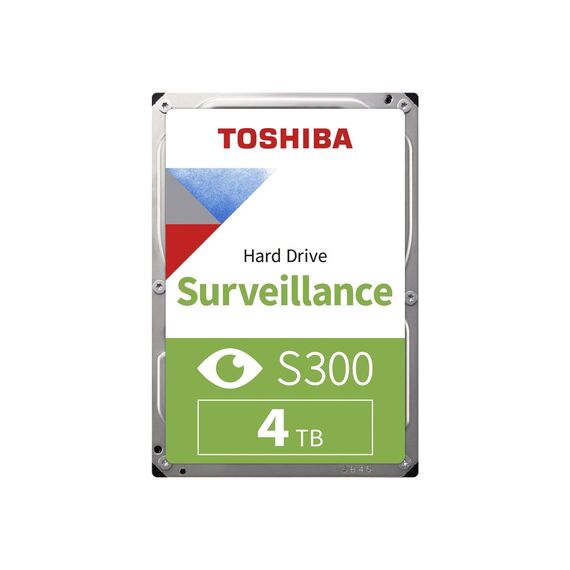

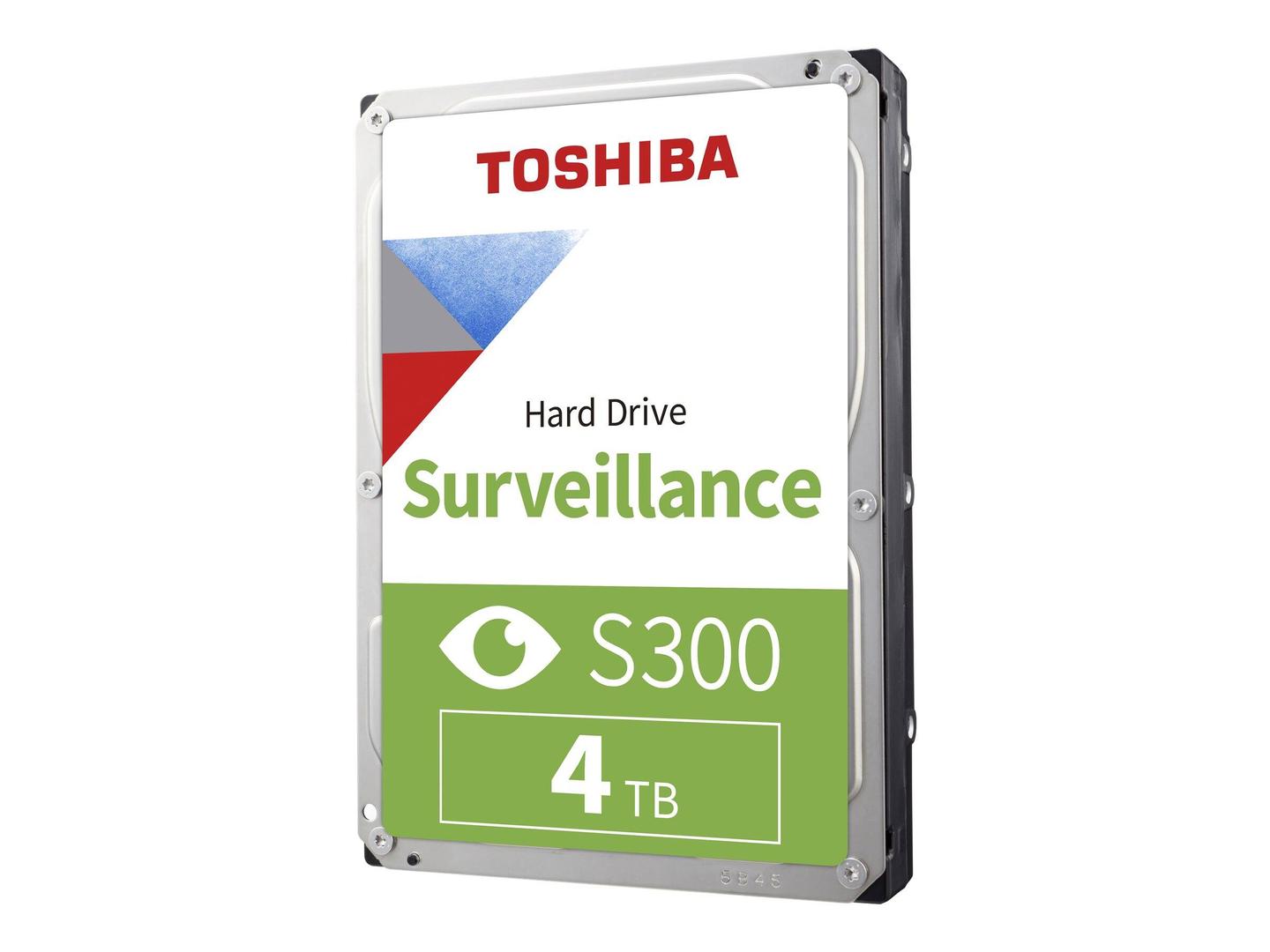

Toshiba S300 Surveillance - Hard drive - 4 TB - internal - 3.5" - SATA 6Gb/s - 5400 rpm - buffer: 128 MB | HDWT840UZSVA
Product Features
- Relentless reliability
Reliability is a function of component quality and testing. The S300 takes it to a new level, using optimized components to deliver the clear detail from up to 64 video cameras at the same time. Rigorous testing provides performance you can trust day in, day out. - Attention to detail
When it comes to those events where even the single frame counts, the S300 has been designed to record even the smallest detail. 24/7 reliability and high-performance ensure you will capture every detail to analyze your security footage at any time. - Designed and tested for compatibility
The S300 has been designed and tested to support up to 64 high resolution cameras, allowing flexible scalability for your security camera systems. Compatible with DVR, NVR, video servers and video management systems for around-the-clock security, the surveillance never sleeps - so that you can. - Smart performance delivers
The S300 is a smart performer. That's because Toshiba's Dynamic Cache Technology optimizes read and write cycle cach allocation through buffer management and a special on-board cache algorithm. - Integrated RV sensors
Regular hard disk drives without RV sensors can affect the performance of a multi-bay system by generating 'knock-on' vibration. The S300 ensures high reliability by minimizing vibration effects through their advanced control and sensing technology. Multiple sensors detect the slightest shock and built-in RV sensors also compensate for rotational vibration - eliminating the possibility of 'knock-on' vibration in multi-bay surveillance systems. - High endurance, high reliability
The high-endurance, high-performance components of the S300 withstand harsh environments for superior reliability. High-temperature environments trigger optimized seek speed to support lower power consumption while automatically reducing noise and vibration emissions. Up to one million hour MTTF (Mean time to failure) and up to 180 TB per year workload rating provide peace of mind when operating security camera systems. - Built to deliver, designed to last
Toshiba is renowned the world over for 50 years of leading innovation - and the power behind its range of hard drives is no exception. Designed for high capacity and excellent performance, you can be sure that Toshiba's wealth of experience in hard drives is at work in your storage system.
Special Fetures
- Relentless reliability
- Attention to detail
- Designed and tested for compatibility
- Smart performance delivers
- Integrated RV sensors
- High endurance, high reliability
- Built to deliver, designed to last
Product Specification
Device Type | Hard drive - internal |
Capacity | 4 TB |
Form Factor | 3.5" |
Interface | SATA 6Gb/s |
Buffer Size | 128 MB |
Features | Shock sensor, Native Command Queuing (NCQ), Advanced Format technology, 24x7 continuous operation, shingled magnetic recording (SMR), workload up to 180 TB per year, Toshiba Dynamic Cache Technology, Toshiba Stable Platter Technology, support up to 64 cameras |
Width | 101.85 mm |
Depth | 147 mm |
Height | 26.1 mm |
Weight | 650 g |
Performance | |
Drive Transfer Rate | 600 MBps (external) |
Internal Data Rate | 184 MBps |
Average Latency | 5.56 ms |
Spindle Speed | 5400 rpm |
Reliability | |
MTBF | 1,000,000 hours |
24x7 Operation | Yes |
Non-Recoverable Errors | 1 per 10^14 |
Load / Unload Cycles | 600,000 |
Expansion & Connectivity | |
Interfaces | 1 x SATA 6 Gb/s |
Compatible Bay | 3.5" |
Power | |
Power Consumption | 4.36 Watt (typical) ¦ 2.36 Watt (active idle) |
Miscellaneous | |
Compliant Standards | RoHS |
Package Type | Bulk |
Manufacturer Warranty | |
Service & Support | Limited warranty - 3 years |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 70 °C |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 70 °C |
Shock Tolerance (operating) | 70 g @ 2 ms |
Shock Tolerance (non-operating) | 300 g @ 2 ms |
Vibration Tolerance (operating) | 0.5 g @ 5-350 Hz |
Vibration Tolerance (non-operating) | 3 g @ 5-500 Hz |
Features - Toshiba - HDWT840UZSVA
- 3.5"
- Internal
- SATA
