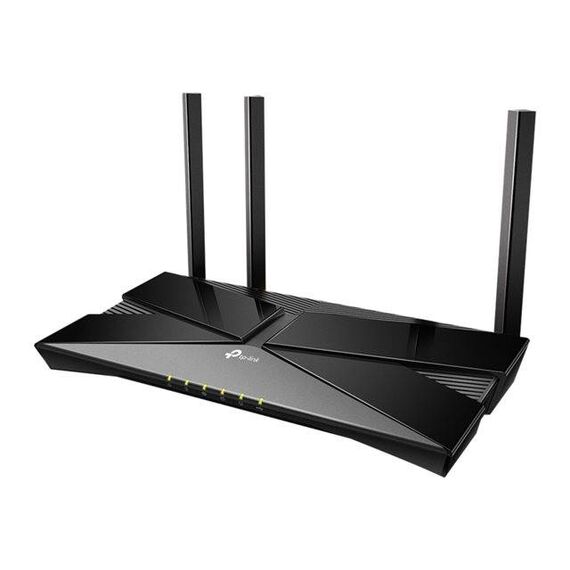

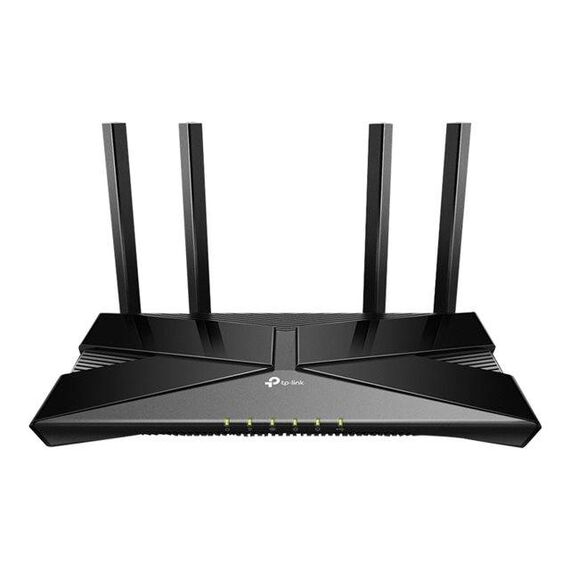

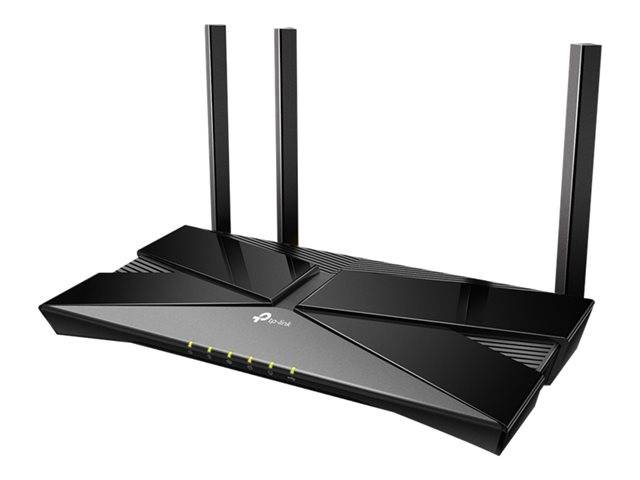

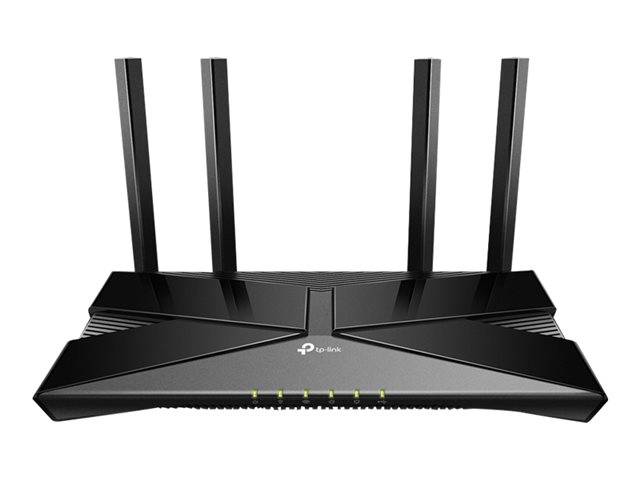

TP-Link Archer AX20 / Wireless router / 4-port switch / GigE / 802.11a/b/g/n/ac/ax / Dual Band | ARCHER AX20
Please sign in so that we can notify you about a reply
TP-Link Archer AX20 / Wireless router / 4-port switch / GigE / 802.11a/b/g/n/ac/ax / Dual Band | ARCHER AX20
Description
Equipped with Wi-Fi 6 for faster speeds, greater capacity, and reduced network congestion. Enjoy smooth streaming, downloading, and gaming all without buffering. Wi-Fi 6 technology communicates more data to more devices using OFDMA and MU-MIMO technology while simultaneously reducing lag.
TP-Link Archer AX20 / Wireless router | ARCHER AX20
Special Features
- Extensive coverage
- Increased battery life
- USB easy sharing
- WPA3 technology
Product features
- Extensive coverage
Beamforming, independent FEM, and four antennas combine to deliver focused reception to devices far away. - Increased battery life
Target wake time technology reduces your devices' power consumption to extend their battery life. - USB easy sharing
A USB 2.0 port enables easy file sharing within your network or building private cloud storage. - WPA3 technology
Powerful encryption technology eliminates brute-force attacks and provides better security.
Product Specification
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 1.8 Gbps |
| Performance | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1201 Mbps |
| Network / Transport Protocol | PPPoE, DHCP |
| Routing Protocol | Static IP routing |
| Encryption Algorithm | WPA, WPA2, WPA-PSK, WPA2-PSK, WEP, WPA3 |
| Wi-Fi Rating | AX1800 |
| Features | NAT support, parental control, DHCP server, port forwarding, reset button, port triggering, DHCP client, MU-MIMO technology, guest access, DMZ support, DynDNS |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, UPnP, IEEE 802.11ac, IEEE 802.11ax, FCC, RoHS |
| Processor | 1 x 1.5 GHz |
| Line Coding Format | OFDMA |

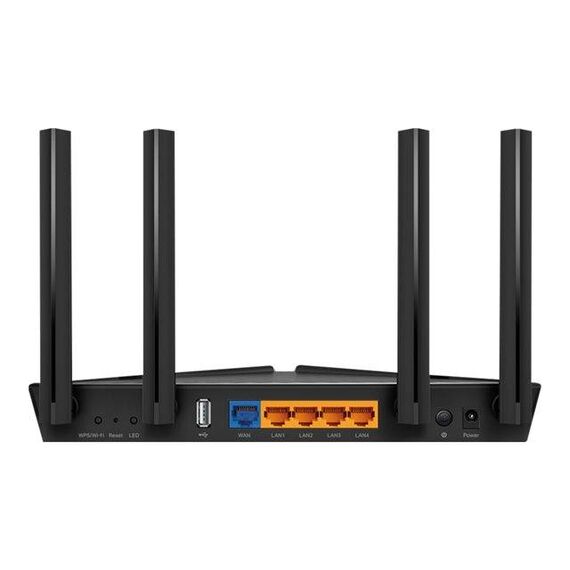

| Interfaces | LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A |
| Aerial | External |
| Antenna Qty | 4 |
| Power Device | External power adapter |
| Cables Included | 1 x network cable |
| OS Required | UNIX, Apple MacOS, Novell NetWare, Linux, Windows 8.1 / 10, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8 |
| Width | 26.02 cm |
| Depth | 13.5 cm |
| Height | 3.86 cm |
Features - TP-LINK - ARCHER AX20
More Details
Product Code
03:147565
EAN Code
6935364085209
Manufacturer
TP-LINK
