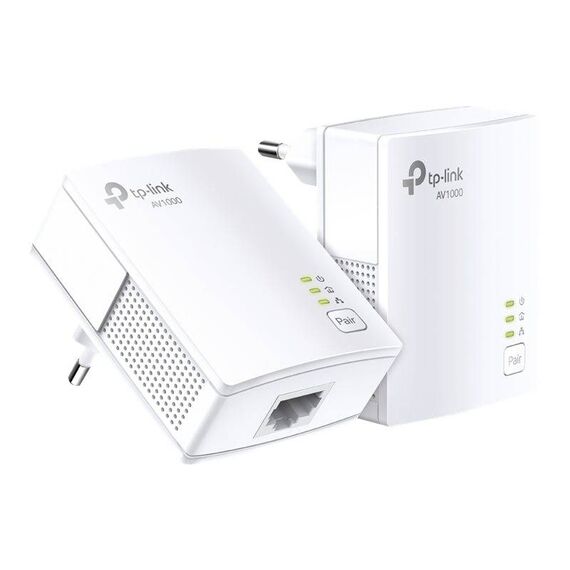

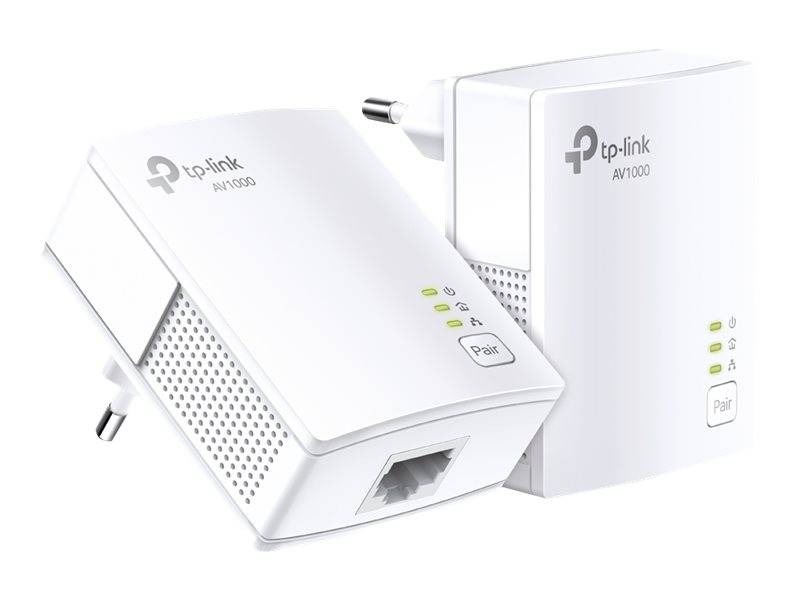

TP-Link TL-PA717 KIT V4 Starter Kit / Powerline adapter kit / GigE, HomePlug AV (HPAV), HomePlug AV (HPAV) 2.0 / wall-pluggable | TL-PA717 KIT
Please sign in so that we can notify you about a reply
Product Features
- Get reliable Gigabit network from any outlet
The AV1000 Gigabit Powerline Starter Kit brings internet to any area with a power outlet using your home's electrical wiring. - Plug and Play
Powerline adapters and extenders must be deployed in a set of two or more and be connected to the same electrical circuit. - HomePlug AV2 standard compliant
The HomePlug AV2 standard creates high-speed data transfer rates of up to 1000Mbps to support all your online activities. - Compact design
The ultra-compact design allows the adapter to be plugged into socket without blocking other sockets.
Special Features
- HomePlug AV2 standard compliant, high-speed data transfer rate of up to 1000 Mbps, ideal for Ultra HD streaming and online gaming
- Up to 300-meter range over the household power circuit
- Automatically switches to Power Saving mode when not in use, reducing its energy consumption by up to 85%
- One Gigabit Ethernet port provides reliable high-speed wired connections for game consoles, smart TVs, STB and more
- Allows setup of your powerline network in minutes, so you can enjoy fast, seamless wired and wireless connections right away
Product Specification
| Device Type | Powerline adapter kit |
| Kit Content | 2 x TL-PA717 powerline adapter |
| Enclosure Type | Wall-pluggable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, HomePlug AV (HPAV), HomePlug AV (HPAV) 2.0 |
| Data Transfer Rate | 1 Gbps |
| Max Range Indoors | 300 m |
| Encryption Algorithm | 128-bit AES |
| Features | Reset button, power-saving mode, pair button, 4K HD video streaming, Packet Loss Concealment (PLC) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, HomePlug AV, HomePlug AV 2.0, IEEE 1901, Plug and Play, RoHS |
| Status Indicators | Power, Internet, powerline |
| Line Properties | Line Properties |
| Line Coding Format | OFDM |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | LAN: 1 x 1000Base-T |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 220 V (50 Hz) |
| Power Consumption Operational | 2.3 Watt |
| Miscellaneous | Miscellaneous |
| Cables Included | 2 x network cable - 2 m |
| Software / System Requirements | Software / System Requirements |
| OS Required | Apple MacOS, Linux, Microsoft Windows 2000 / XP / 2003 / Vista / 7 / 8 / 8.1 / 10 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 5.2 cm |
| Depth | 2.85 cm |
| Height | 6.5 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - TP-LINK - TL-PA717 KIT
More Details
Product Code
03:197204
EAN Code
4897098688410
Manufacturer
TP-LINK
