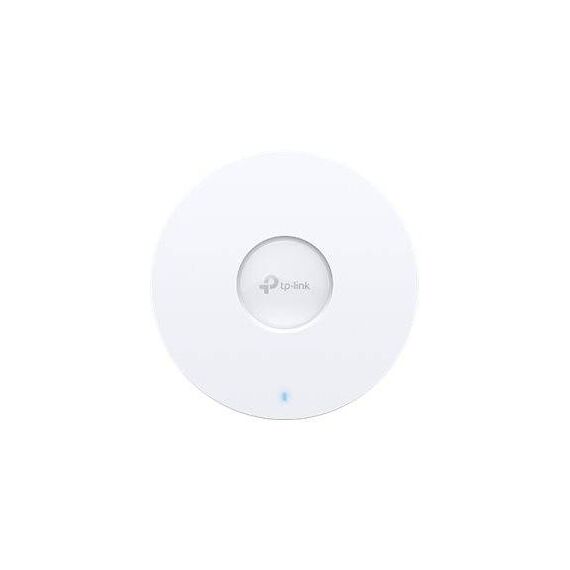

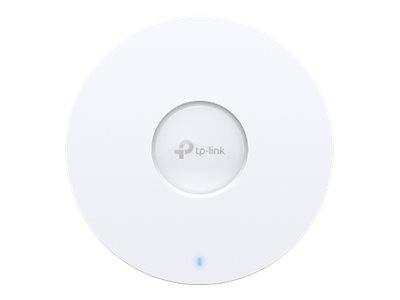

TP-Link Omada EAP653 V1 / Radio access point / Wi-Fi 6 / 2.4 GHz, 5 GHz / DC power / cloud-managed / wall / ceiling mountable | EAP653
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Radio access point |
| Width | 16 cm |
| Depth | 16 cm |
| Height | 3.36 cm |
| Networking | Networking |
| Form Factor | Wall / ceiling mountable |
| Connectivity Technology | Wireless |
| Line Coding Format | OFDM, 1024 QAM, OFDMA |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Spread Spectrum Method | OFDM, OFDMA |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, NTP |
| Cloud-Managed | Yes |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 2402 Mbps ¦ Bandwidth: 160 MHz |
| Capacity | Maximum number of configured SSIDs: 16 ¦ Number of concurrent clients: 250+ |
| Wi-Fi Rating | AX3000 |
| Status Indicators | Status |
| Features | Load balancing, VLAN support, Syslog support, E-mail alert, MAC address filtering, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, Quality of Service (QoS), reset button, Captive Portal, Transmit Power Control (TPC), MU-MIMO technology, beamforming technology, band steering, SSID to VLAN mapping, rate limit, Wireless Scheduler, wireless SSID, LED on/off button, seamless roaming, Airtime Fairness, Zero-touch provisioning (ZTP), adjustable transmission power, schedule reboot, self-healing network, Omada Mesh technology, multi-site management |
| Encryption Algorithm | WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise, WPA3-Personal, WPA2-Personal, WPA-Personal |
| Authentication Method | Secure Shell (SSH), Radio Service Set ID (SSID) |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Aerial | Aerial |
| Antenna | Internal |
| Directivity | Omni-directional |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x 1000Base-T (PoE+) - RJ-45 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Wall/ceiling mounting kit |
| Compliant Standards | FCC, RoHS |
| Power | Power |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Device | External power adapter |
| Voltage Required | DC 12 V |
| Power Consumption Operational | 14.7 Watt |
| Software / System Requirements | Software / System Requirements |
| Software Included | Omada Controller |
| OS Required | Linux, Windows 8, Microsoft Windows XP / Vista / 7 / 10 / 11 |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
Features - TP-LINK - EAP653
More Details
Product Code
03:196224
EAN Code
4897098685235
Manufacturer
TP-LINK
