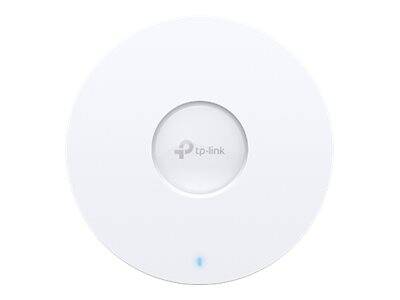

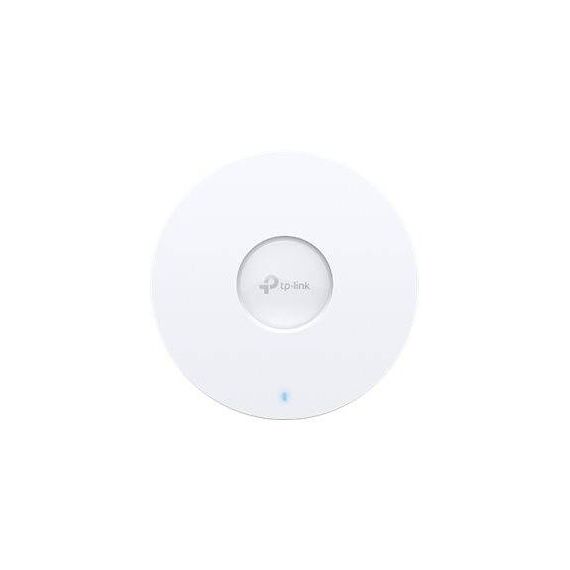

TP-Link Omada EAP653 V2 - Radio access point - 1GbE - Wi-Fi 6 - 2.4 GHz, 5 GHz - cloud-managed - wall / ceiling mountable (pack of 5) | EAP653(5-PACK)
Please sign in so that we can notify you about a reply
Product Specification
| Packaged Quantity | 5 (specifications are for single item) |
| Device Type | Radio access point |
| Width | 16 cm |
| Depth | 16 cm |
| Height | 3.36 cm |
| Networking | |
| Form Factor | Wall / ceiling mountable |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 2976 Mbps |
| Line Coding Format | OFDM, 1024 QAM, OFDMA |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Spread Spectrum Method | OFDM, OFDMA |
| Network / Transport Protocol | NTP, HTTP, HTTPs |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, NTP, Syslog |
| Cloud-Managed | Yes |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 2402 Mbps ¦ Channel bandwidth: 160 MHz |
| Capacity | Maximum number of configured SSIDs (2.4 Ghz): 8 ¦ Maximum number of configured SSIDs (5 Ghz): 8 ¦ Number of concurrent clients: 250+ ¦ MAC filter entries: 4000 |
| Wi-Fi Rating | AX3000 |
| Status Indicators | Status |
| Features | Load balancing, MAC address filtering, Wi-Fi Multimedia (WMM) support, Auto Channel Select (ACS), Access Control List (ACL) support, Quality of Service (QoS), reset button, dynamic IP mode, e-mail notification, Captive Portal, 802.1x authentication, Transmit Power Control (TPC), MU-MIMO technology, system log, beamforming technology, band steering, SSID to VLAN mapping, rate limit, Wireless Scheduler, Software Defined Networking (SDN), VLAN management, Fast Roaming, seamless roaming, Airtime Fairness, Zero-touch provisioning (ZTP), client isolation, schedule reboot, self-healing network, Omada Mesh technology, secure guest network, rogue AP detection, remote firmware upgrade, LED control, wireless radio enable/disable, SSID broadcast |
| Encryption Algorithm | WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise, WPA3-Personal, WPA2-Personal, WPA-Personal |
| Authentication Method | Secure Shell (SSH), RADIUS, Radio Service Set ID (SSID) |
| Compliant Standards | IEEE 802.11, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Aerial | |
| Antenna | Internal |
| Directivity | Omni-directional |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T (PoE+) - RJ-45 |
| Miscellaneous | |
| Included Accessories | Wall/ceiling mounting kit |
| Compliant Standards | IC, FCC, RoHS |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Consumption Operational | 13.07 Watt |
| Software / System Requirements | |
| Software Included | Omada Controller |
| OS Required | Linux, Microsoft Windows XP / Vista / 7 / 8 / 10 / 11 |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
Features - TP-LINK - EAP653(5-PACK)
More Details
Product Code
03:230545
EAN Code
4895252505306
Manufacturer
TP-LINK
