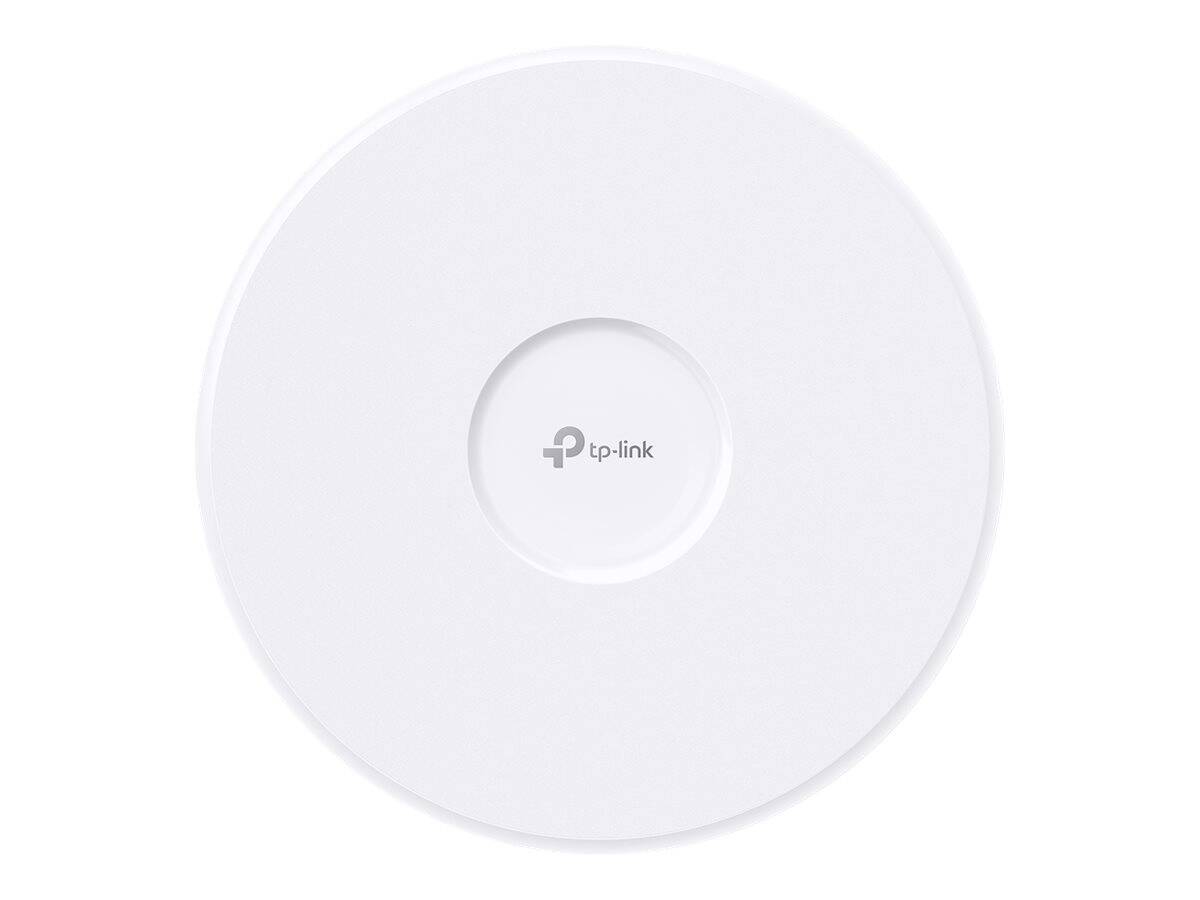

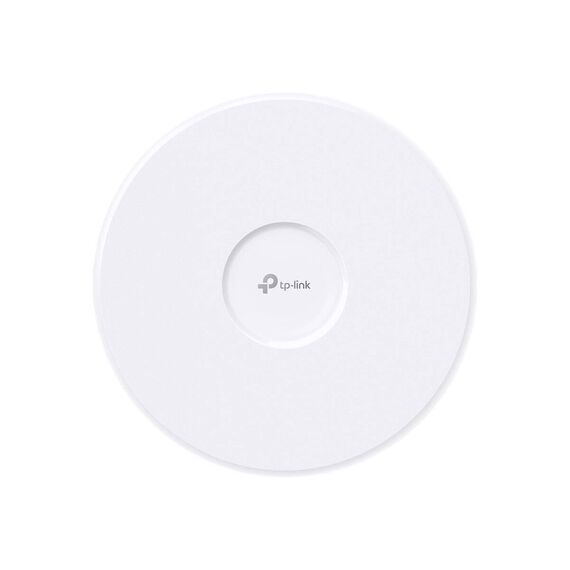

TP-Link Omada EAP783 V1 - Radio access point - 2 ports - Bluetooth, Wi-Fi 7 - 2.4 GHz, 5 GHz, 6 GHz - cloud-managed - wall / ceiling mountable | EAP783
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Radio access point |
| Width | 28 cm |
| Depth | 4.65 cm |
| Height | 28 cm |
| Weight | 1.3846 kg |
| Networking | |
| Form Factor | Wall / ceiling mountable |
| Ports Qty | 2 |
| Connectivity Technology | Wireless |
| Line Coding Format | 4096 QAM, OFDMA |
| Data Link Protocol | Bluetooth, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11be, IEEE 802.11ax (Wi-Fi 6) |
| Spread Spectrum Method | OFDMA |
| Network / Transport Protocol | NTP |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, SSH, NTP |
| Cloud-Managed | Yes |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Performance | Maximum data rate (2.4 GHz): 1376 Mbps ¦ Maximum data rate (5 GHz): 5760 Mbps ¦ Maximum data rate (6 GHz): 11520 Mbps ¦ Channel bandwidth: up to 320 MHz |
| Capacity | Maximum number of configured SSIDs: 24 ¦ Connected devices: 640 ¦ Maximum MAC filters: 4000 |
| Wi-Fi Rating | BE19000 |
| Status Indicators | Status |
| Features | Load balancing, VLAN support, E-mail alert, firmware upgradable, Wi-Fi Multimedia (WMM) support, Auto Channel Select (ACS), Access Control List (ACL) support, Quality of Service (QoS), Multiple SSID support, reset button, dynamic IP mode, Captive Portal, MU-MIMO technology, beamforming technology, band steering, Wireless Scheduler, MAC address authentication, seamless roaming, Airtime Fairness, Zero-touch provisioning (ZTP), 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), client isolation, schedule reboot, BSS Coloring, Private Pre-Shared Key (PPSK), Omada Mesh technology, secure guest network, rogue AP detection, LED control, uplink/downlink MU-MIMO, wireless radio enable/disable, Multi-Link Operation (MLO), 4KV lightning protection (common mode), SSID broadcast, Multiple Resource Unit (MRU) |
| Encryption Algorithm | WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise, WPA3-Personal, Opportunistic Wireless Encryption (OWE), WPA2-Personal, WPA-Personal |
| Authentication Method | RADIUS |
| Compliant Standards | IEEE 802.11, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.3bt, IEEE 802.11ax, IEEE 802.11be, Wi-Fi CERTIFIED 7 |
| Aerial | |
| Antenna | Internal |
| Directivity | Omni-directional |
| Expansion / Connectivity | |
| Interfaces | 1 x 10GBase-T (PoE++) - RJ-45 ¦ 1 x 10GBase-T - RJ-45 |
| Miscellaneous | |
| Included Accessories | Wall/ceiling mounting kit |
| Compliant Standards | IC, FCC, RoHS |
| Power | |
| Power Device | External power adapter / power injector (not included) |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - TP-LINK - EAP783
More Details
Product Code
03:223544
EAN Code
4895252503517
Manufacturer
TP-LINK
