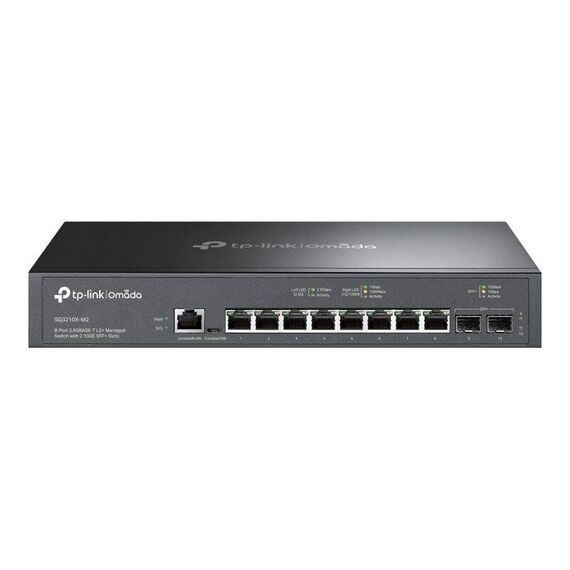

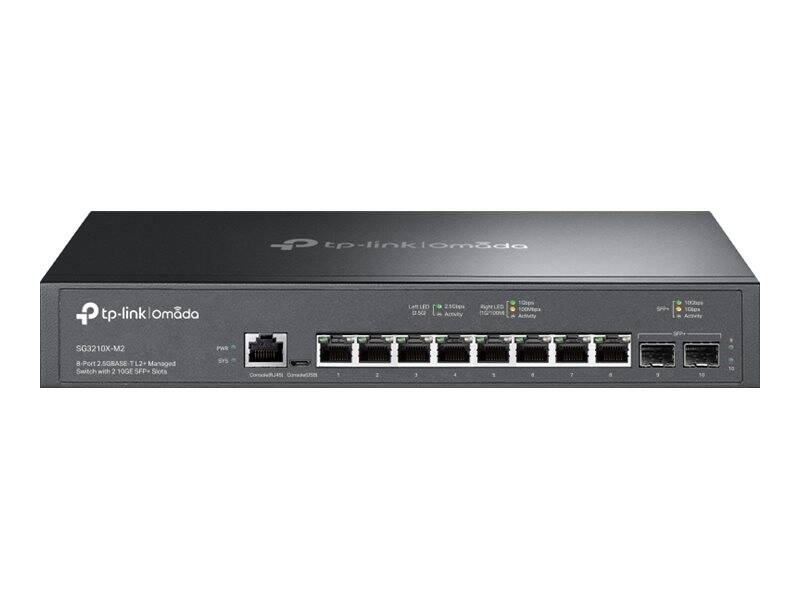

TP-Link Omada SG3210X-M2 V1 - Switch - L2+ - Managed - 8 x 2.5GBase-T + 2 x 10Gb Ethernet SFP+ - desktop, rack-mountable | SG3210X-M2
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Switch - 8 ports - L2+ - Managed |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | 2.5 Gigabit Ethernet |
| Ports | 8 x 2.5GBase-T + 2 x 10Gb Ethernet SFP+ |
| Performance | Switching capacity: 80 Gbps ¦ Packet forwarding rate: 59.52 Mpps ¦ Packet buffer size: 12 Mbit |
| Capacity | Priority queues: 8 ¦ IPv6 interfaces: 32 ¦ IPv4 interfaces: 32 ¦ Static routes: 48 ¦ Static ARP entries: 128 ¦ Total link aggregation groups: 8 ¦ Multicast filters: 256 ¦ Layer 2 multicast filtering entries per profile: 16 ¦ VLAN groups: 4000 ¦ MAC VLAN address entries: 256 ¦ IP MAC port binding entries: 512 ¦ IPv4 source guard entries: 100 ¦ IPv6 MAC port binding entries: 512 ¦ MAC addresses per port: up to 64 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP, L2PT, PPPoE |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI, OAM, DHCP, RSTP, MIB |
| Encryption Algorithm | SSL 3.0, TLS 1.2 |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Flow control, ARP support, IGMP snooping, port mirroring, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Cable Diagnostics Function, bandwidth control, Device Link Detection Protocol (DLDP) support, fanless, DHCP relay, Port Security, IP-MAC binding, Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), port isolation, Strict Priority (SP), Denial of Service (DoS), 802.1x authentication, IGMP throttling, Storm Control, system log, ARP inspection, Link Aggregation, rate limit, Software Defined Networking (SDN), fast leave, Authentication, Authorization and Accounting (AAA), Static Link Aggregation, flow mirroring, Voice VLAN, Zero-touch provisioning (ZTP), Energy-Efficient Ethernet (EEE), BPDU Filter, TCP/UDP proxy, Weighted Round Robin (WRR), loopback detection, Advanced QoS, queue scheduling support, non-blocking architecture, DHCPv6 snooping, path maximum transmission unit (MTU) discovery, VLAN ID filtering |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ab (LLDP) |
| Status Indicators | Power, system, link/activity, SFP+ |
| Expansion / Connectivity | |
| Interfaces | 8 x 2.5GBase-T RJ-45 ¦ 2 x 10GBase-X SFP+ ¦ 1 x console RJ-45 ¦ 1 x console (micro-USB) |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Miscellaneous | |
| Included Accessories | Rubber feet, power cord |
| Rack Mounting Kit | Included |
| Compliant Standards | FCC, RoHS |
| Software / System Requirements | |
| OS Required | UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11 |
| Dimensions & Weight | |
| Width | 29.4 cm |
| Depth | 18 cm |
| Height | 4.4 cm |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% RH (non-condensing) |
Features - TP-LINK - SG3210X-M2
General
8-Port
More Details
Product Code
03:225850
EAN Code
4897098689523
Manufacturer
TP-LINK
