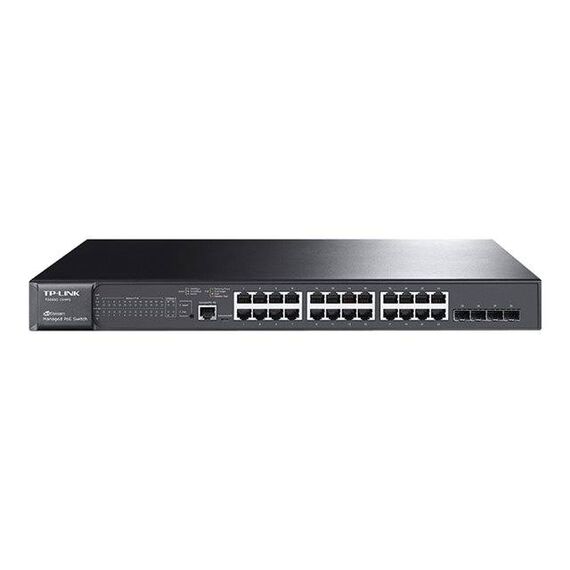

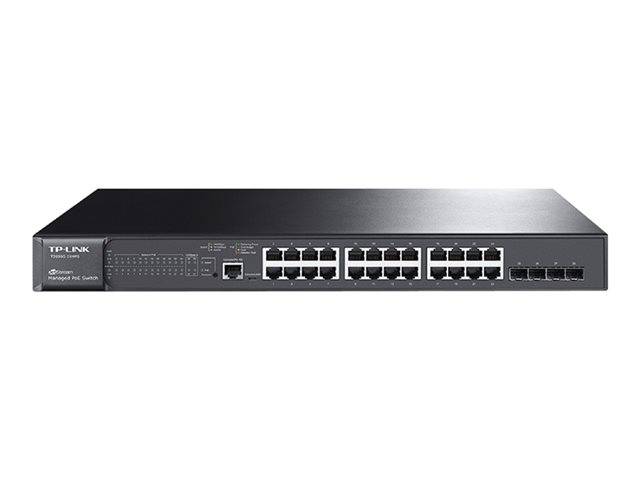

TP-LINK JetStream T2600G-28MPS / Switch / L2+ / Managed / 24 x 10/100/1000 (PoE+) + 4 x SFP / desktop, rack-mountable / PoE+ (384 W) | T2600G-28MPS(TL-SG3424P)
TP-LINK JetStream T2600G-28MPS / Switch / L2+ / Managed / 24 x 10/100/1000 (PoE+) + 4 x SFP / desktop, rack-mountable / PoE+ (384 W) | T2600G-28MPS(TL-SG3424P)
Description The T2600G-28MPS provides 24 10/100/1000Mbps ports that support 802.3at/af-compliant PoE, with a total PoE power supply of up to 384W, giving users the power and flexibility to deploy wireless access points or IP-based network surveillance cameras. In addition, it provides high performance static routing, enterprise-level QoS, advanced security strategies and rich layer 2 management attributes. With all these advanced features, the JetStream Gigabit L2 Managed PoE Switch is an ideal choice for small and medium business networking solutions.The switch provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS and other advanced security strategies. OAM, L2PT and sFlow can meet the requirement of large ISP customers, and the IP-MAC-Port Binding and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP, RMON and Dual Image mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive L2 Switch and gigabit capability, TP-LINK JetStream 24-Port Gigabit L2 managed PoE+ Switch T2600G-28MPS provides you the ideal network solution. TP-LINK JetStream T2600G-28MPS / Switch / L2+ / Managed / 24 x 10/100/1000 (PoE+) | T2600G-28MPS(TL-SG3424P)Special Features
Product features
|
Product Specification
Device Type | Switch - 24 ports - L2+ - Managed |
Enclosure Type | Desktop, rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 (PoE+) + 4 x SFP |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 384 W |
Performance | Switching capacity: 56 Gbps ¦ Forwarding performance: 41.7 Mpps |
Capacity | QoS hardware queues: 8 ¦ VLANs supported: 4000 |
MAC Address Table Size | 16K entries |
Jumbo Frame Support | 9216 bytes |
Routing Protocol | IGMPv2, IGMP, IGMPv3, MLD |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SSH-2 |
Encryption Algorithm | TLS 1.0, SSL 3.0 |
Authentication Method | RADIUS, TACACS+ |
Features | Flow control, auto-negotiation, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), Device Link Detection Protocol (DLDP) support, IPv4 support, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, IP-MAC binding, DHCP client, Neighbor Discovery Protocol (NDP), static routing, Loopback, Generic Attribute Registration Protocol (GARP), 802.1x authentication, GARP VLAN Registration Protocol (GVRP), DiffServ Code Point (DSCP) support, 1.5MB packet buffer, IP source guard, ARP inspection, Bridge protocol data unit (BPDU) |
Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.3at |
Interfaces | 24 x 1000Base-T RJ-45 PoE+ ¦ 4 x 1000Base-X SFP ¦ 1 x console RJ-45 ¦ 1 x micro-USB management |
Power Device | Internal power supply |
Voltage Required | AC 120/230 V (50/60 Hz) |
Power Consumption Operational | 468.7 Watt |
Included Accessories | Rubber feet |
Rack Mounting Kit | Included |
Compliant Standards | FCC, RoHS |
Software Included | Drivers & Utilities |
OS Required | UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows XP / Vista / 7 / 8 / 10 |
Width | 44 cm |
Depth | 33 cm |
Height | 4.4 cm |
Weight | 6 kg |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 5 - 90% (non-condensing) |
