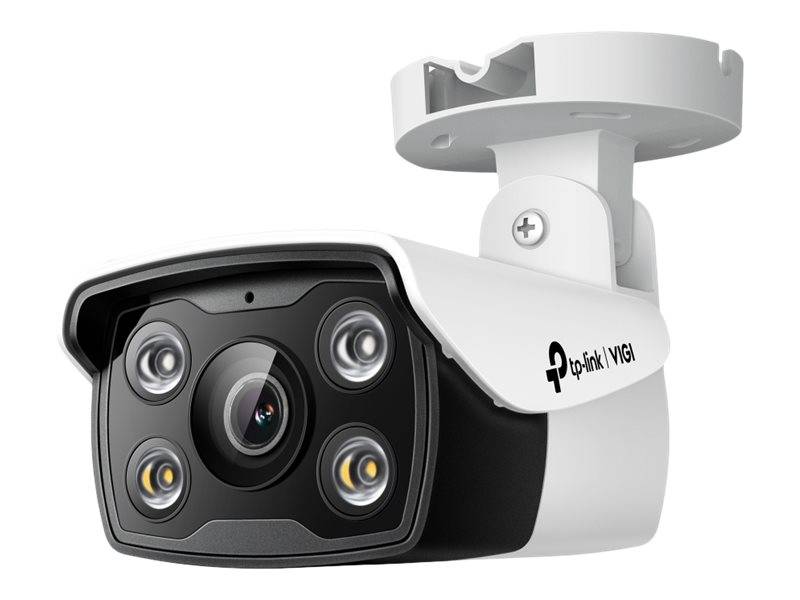

TP-Link VIGI C340 V1 / Network surveillance camera / bullet / outdoor / weatherproof / colour (Day&Night) / 2560 x 1440 / M12 mount / fixed focal / audio / wired / LAN 10/100 / H.264, H.265, H.265+, H.264+ / DC 12 V | VIGI C340(2.8MM)
Please sign in so that we can notify you about a reply
Product Features
- Outdoor PoE connection, simple wiring
Just connect your camera via an RJ45 cable, then power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios. - Clarity and colors, all in one
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI's Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights. - Smart detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera. - Active defense
Warn potential intruders instantly with sound and light when abnormal events - Discover the best way to power your camera
Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
Special Features
- Outdoor PoE connection, simple wiring
- Clarity and colors, all in one
- Smart detection
- Active defense
- Discover the best way to power your camera
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: built-in speaker, built-in microphone |
| Form Factor | Bullet |
| Connectivity Technology | Wired |
| Width | 7 cm |
| Depth | 17.4 cm |
| Height | 7.8 cm |
| Weight | 195 g |
| Camera | Camera |
| Type | Colour - Day&Night - fixed - outdoor - weatherproof |
| Digital Video Format | H.264, H.265, H.265+, H.264+ |
| Max Digital Video Resolution | 2560 x 1440 |
| Motion Detection | Yes |
| Infrared LEDs | Yes |
| Infrared Distance | 30 m |
| Digital Video Capture Resolution | 640 x 480, 320 x 240, 352 x 288, 1920 x 1080, 2304 x 1296, 2560 x 1440, 2048 x 1280 |
| Frame Rate (max) | 30 frames per second |
| Features | Backlight Compensation (BLC), IR filter, sharpness control, saturation control, brightness control, contrast control, image mirror, ONVIF support, Privacy Mask Function, Digital Wide Dynamic Range (D-WDR), Live View Control, programmable white balance, Camera Tampering Detection, Smart IR, reset button, password protection, 2-way voice communication, Region of Interest (ROI), exposure control, plastic housing, digest authentication, Line Crossing Detection, IP address filtering, 3D digital noise reduction (DNR), HTTPs encryption, human detection, Smart Detection, instant notification, object enter area detection, MiMo WiFi connectivity, Active Defense, password reset via e-mail, 2 video streams, video tampering detection |
| Image Sensor | Image Sensor |
| Type | CMOS 1/3" |
| Lens Construction | Lens Construction |
| Type | M12 mount - fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/1.6 |
| Horizontal Field of View (degree) | 102 |
| Vertical Field of View (degree) | 55 |
| Diagonal Field of View (degree) | 122 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DHCP, DNS, HTTP, NTP, TCP/IP, UDP/IP, ICMP, RTSP, HTTPS, UPnP, TLS, SSL |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN - RJ-45 |
| Supported Memory Cards | microSD Card |
| Miscellaneous | Miscellaneous |
| Included Accessories | Mounting hardware, waterproof cable attachments |
| Compliant Standards | VCCI, BSMI, RoHS, NTRA, IP66, KC, RCM, IEEE 802.3af, IEEE 802.3at |
| Power | Power |
| Power Requirements | DC 12 V |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 60 °C |
Features - TP-LINK - VIGI C340(2.8MM)
More Details
Product Code
CI01726
EAN Code
4897098688618
Manufacturer
TP-LINK
