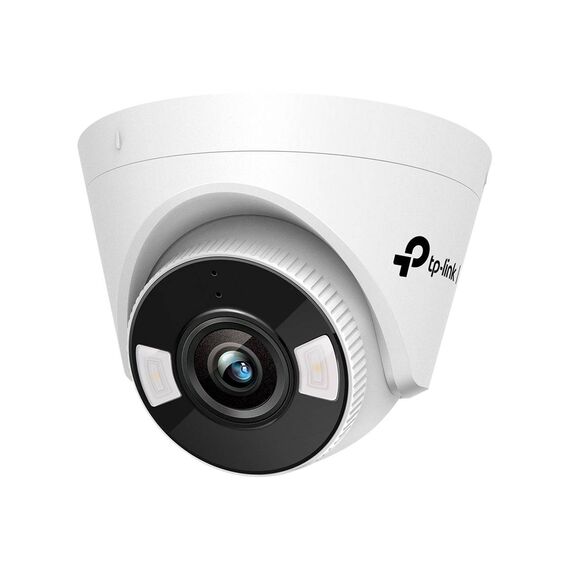

TP-Link VIGI C450 V1 / Network surveillance camera / pan / tilt / turret / colour (Day&Night) / 5 MP / 2880 x 1620 / M12 mount / fixed focal / audio / LAN 10/100 / H.264, H.265, H.265+, H.264+ / DC 12 V / PoE | VIGI C450(4MM)
Please sign in so that we can notify you about a reply
Product Features
- People and vehicle analytics
Quickly find people or vehicles of interest using various attributes, greatly improve your search efficiency. - Human and vehicle classification
Intelligently distinguishes humans and vehicles from other objects, so you receive more accurate event notifications. - Smart IR
Keeps objects from being under-rendered when far away or overexposed when close to camera at night. - 120dB WDR
Enables crystal-clear images in high contrast scenes. - 3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion. - VIGI surveillance solution
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business that you've worked hard to build - whenever, wherever. Outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound. - Flexible installation
Easily route your camera's cable into a dropped ceiling or avoid drilling by slotting it through the camera's side outlet.
Special Features
- People and vehicle analytics
- Human and vehicle classification
- Smart IR
- 120dB WDR
- 3D DNR
- VIGI surveillance solution
- Flexible installation
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: built-in speaker, two-way audio capability, built-in microphone |
| Audio Formats | G.711 A-law |
| Form Factor | Turret |
| Camera Mount Type | Wall mount, ceiling mount |
| Connectivity Technology | Wired |
| Width | 12.3 cm |
| Depth | 8.4 cm |
| Height | 12.3 cm |
| Weight | 240 g |
| Camera | Camera |
| Type | Colour - Day&Night - pan / tilt |
| Digital Video Format | H.264, H.265, H.265+, H.264+ |
| Max Digital Video Resolution | 2880 x 1620 |
| Motion Detection | Yes |
| Exposure Range | 1/3 sec - 1/10000 sec |
| Minimum Illumination | 0.005 lux - colour ¦ 0 lux - white light ¦ 0 lux - IR |
| Infrared LEDs | 2 |
| Infrared Distance | 30 m |
| Digital Video Capture Resolution | 1280 x 720, 640 x 480, 320 x 240, 352 x 288, 704 x 576, 1920 x 1080, 2304 x 1296, 2880 x 1620, 2688 x 1520, 2048 x 1280 |
| Frame Rate (max) | 30 frames per second |
| Features | Backlight Compensation (BLC), sharpness control, white balance, alarm function, saturation control, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), infrared cut filter, Highlight Compensation (HLC), Scene Change Detection, Push Notification, Abandoned Object Detection, Smart IR, reset button, password protection, Region of Interest (ROI), Variable Bitrate (VBR), Constant Bitrate (CBR), intrusion detection, ONVIF (Profile S) support, loitering detection, object removal detection, exposure control, plastic housing, digest authentication, Line Crossing Detection, Vehicle Detection, IP address filtering, 3D digital noise reduction (DNR), region exiting detection, region entrance detection, HTTPs encryption, environment noise filtering, Corridor mode, People Detection, human and vehicle filtering, up to 6 channels simultaneous live view, 80m detect distance, 16m recognise distance, 8m identify distance, privacy masking (up to 4 areas), 2 video streams, video tampering detection, people analytics, vehicle analytics, 33m observe distance |
| Image Sensor | Image Sensor |
| Type | 5 MP Progressive Scan CMOS 1/2.7" |
| Lens Construction | Lens Construction |
| Type | M12 mount - fixed focal |
| Focal Length | 4 mm |
| Lens Iris | F/1.6 |
| Horizontal Field of View (degree) | 90 |
| Vertical Field of View (degree) | 48 |
| Diagonal Field of View (degree) | 107 |
| Panning | Panning |
| Range (degree) | 0 to 360 |
| Tilting | Tilting |
| Range (degree) | 0 to 85 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DHCP, DNS, HTTP, NTP, TCP/IP, UDP/IP, ICMP, RTSP, HTTPS, UPnP, TLS, SMB, SSL, CIFS, NFS |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN - RJ-45 |
| Supported Memory Cards | microSD Card |
| Miscellaneous | Miscellaneous |
| Included Accessories | Mounting hardware |
| Compliant Standards | Plug and Play, VCCI, BSMI, IC, FCC, NTRA, KC, IEEE 802.3at |
| Power | Power |
| Power Requirements | DC 12 V / PoE |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Weight | 400 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 60 °C |
| Relative Humidity (operating) | Up to 95% (non-condensing) |
Features - TP-LINK - VIGI C450(4MM)
More Details
Product Code
CI01719
EAN Code
4895252503012
Manufacturer
TP-LINK
