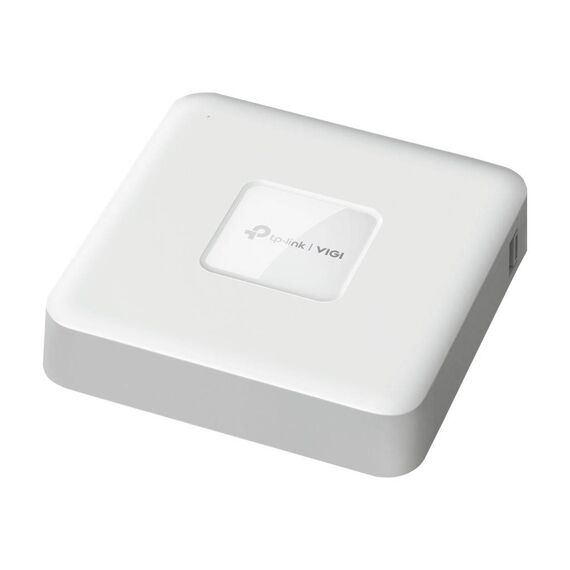

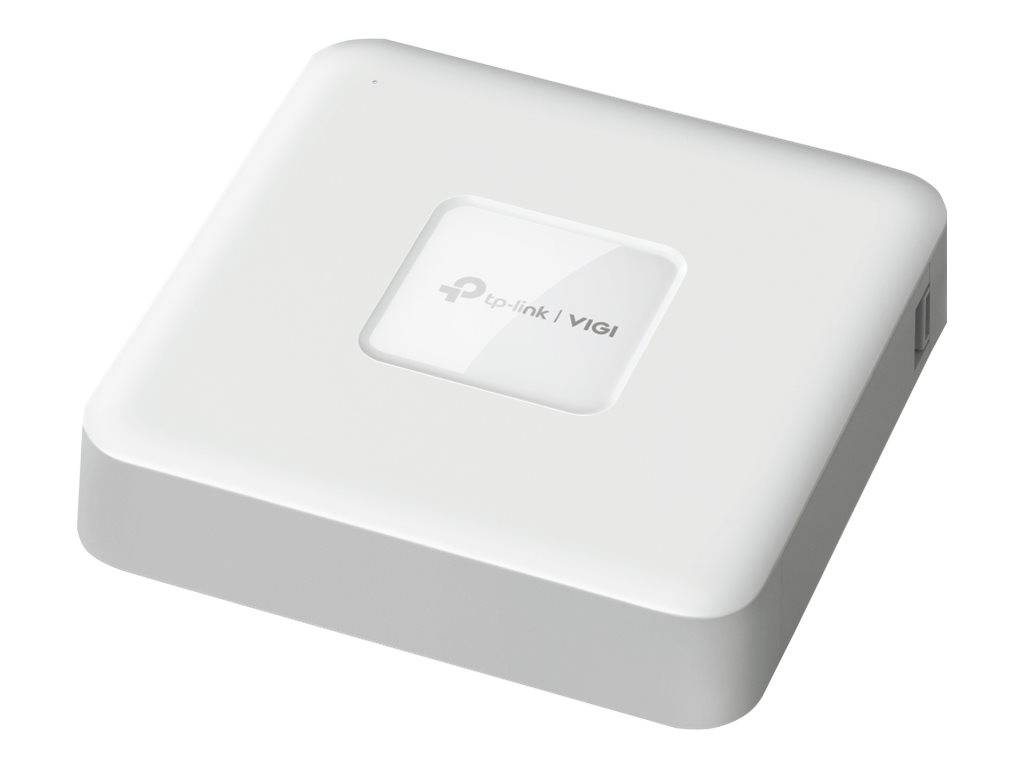

TP-Link VIGI NVR1104H-4P V1 / NVR / 4 channels / networked | VIGI NVR1104H-4P

Product Features

4K HDMI video output and 16MP decoding capacity
Sharp image definition up to 8MP and a 4-channel display ensure you capture every detail, from every angle.
Dedicated 4 PoE+ ports for simplified IP camera deployment
Features 4x 10/100 Mbps PoE+ ports, the NVR supports up to 30 W on each PoE+ port. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.
Simple HDD installation
Install and remove the HDD manually with easy side access.
4-channel simultaneous playback
Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
More compression, more savings
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Two-way audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.

Special Features

Product Specification

Device Type	NVR
Video Channels	4
IP Cameras Supported	4
Image Resolution	1280x720, 1920x1080, 1024x768, 1680x1050, 1280x1024, 1440x900, 3840x2160
Compression Format	H.264, H.265, H.264+, H.265+
Package Content	Mouse, HDD screws
Compliant Standards	Plug and Play, IEEE 802.3af, IEEE 802.3at
Security DVR	Security DVR
Networked	Yes
Features	80Mbps Incoming Bandwidth, 60Mbps Outgoing Bandwidth, built-in speaker
Hard Drive	Hard Drive
Quantity Supported	1
Interface	Serial ATA
Removable	Yes
Supported Max Total Capacity	10 TB
Video Server	Video Server
Features	Two-way audio support
Networking	Networking
Network Interfaces	Ethernet 10Base-T/100Base-TX
Supported Protocols	DHCP, DNS, HTTP, NTP, TCP/IP, HTTPS, UPnP
Features	ONVIF support, remote access management, 53W PoE+ power budget
Connections	Connections
Video Input Ports	RJ-45 x 4
Video Output Ports	HDMI x 1, VGA x 1
Audio Input Ports	RCA x 1
Audio Output Ports	RCA x 1
Network Port	10/100Base-T
Other Ports	USB 2.0 x 2
Power	Power
Voltage	53.5 V
Power Consumption	4.82 Watt
Power Consumption Details	Without HDD
Dimensions & Weight	Dimensions & Weight
Width	20.03 cm
Depth	20.03 cm
Height	4.3 cm
Environmental Parameters	Environmental Parameters
Min Operating Temperature	-10 Â°C
Max Operating Temperature	55 Â°C
