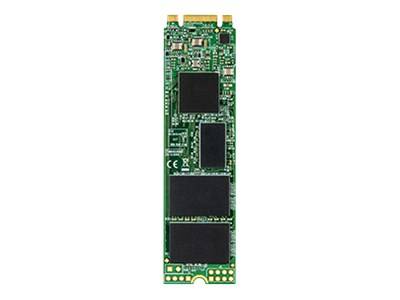

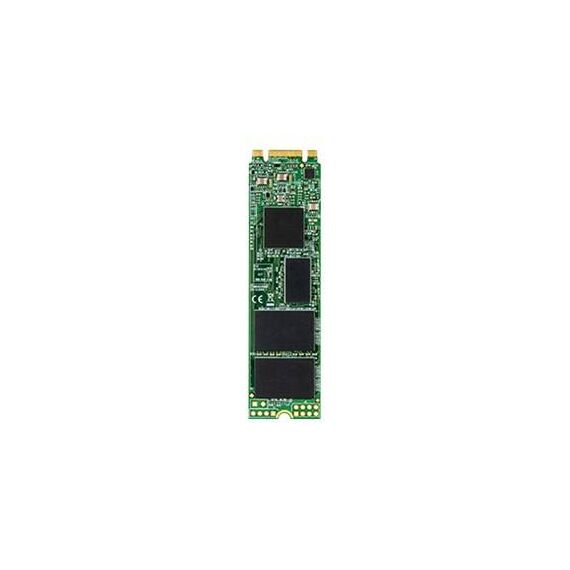

Transcend MTS820 / Solid state drive / 120 GB / internal / M.2 2280 / SATA 6Gb/s | TS120GMTS820S
Transcend MTS820 / Solid state drive / 120 GB / internal / M.2 2280 / SATA 6Gb/s | TS120GMTS820S
Product Specification
| Device Type | Solid state drive - internal |
| Capacity | 120 GB |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | M.2 2280 |
| Interface | SATA 6Gb/s |
| Features | Native Command Queuing (NCQ), TRIM support, DDR3 DRAM Cache, DevSleep mode, Low-Density Parity Check, SLC cache, S.M.A.R.T. |
| Width | 80 mm |
| Depth | 22 mm |
| Height | 3.58 mm |
| Weight | 9 g |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 560 MBps (read) / 520 MBps (write) |
| 4KB Random Read | 80000 IOPS |
| 4KB Random Write | 85000 IOPS |
| Interfaces | 1 x SATA 6 Gb/s - M.2 Card |
| Compatible Bay | M.2 2280 |
| OS Required | Linux Kernel 2.6.31 or later, Microsoft Windows 7 / 8 / 8.1 / 10 |
| Compliant Standards | BSMI, FCC |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
Features - Transcend - TS120GMTS820S
- 2.5"
- Internal
- M.2
