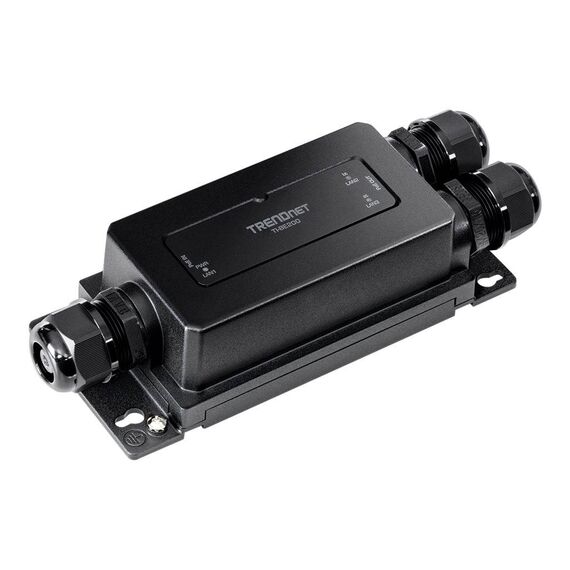

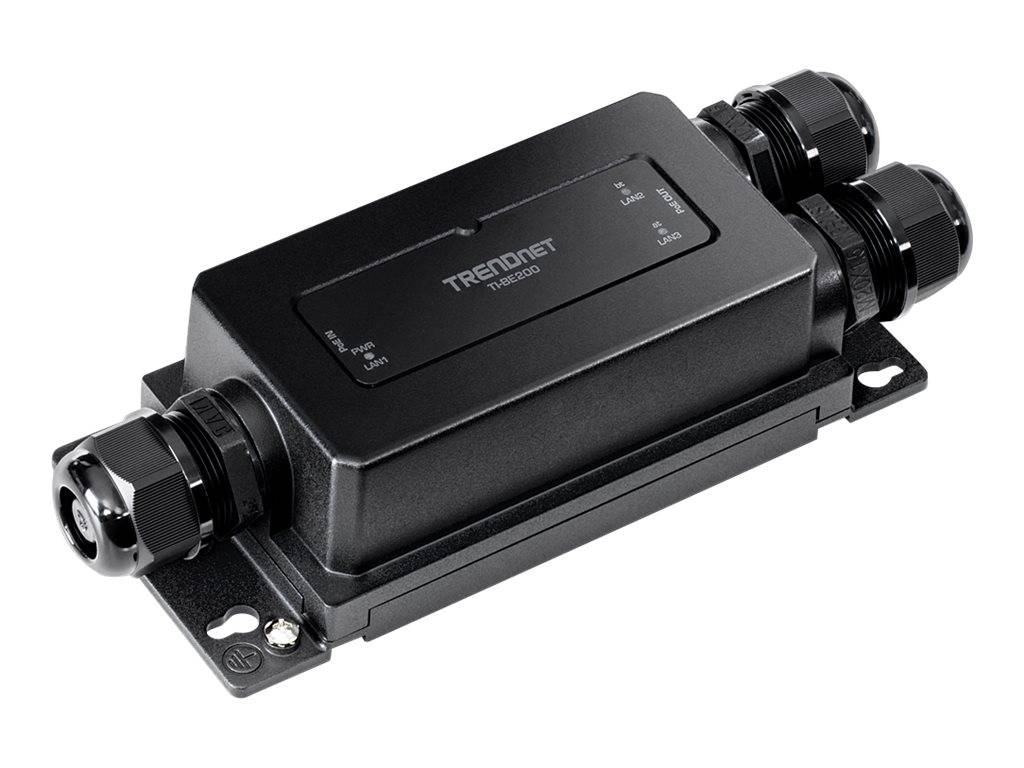

TRENDnet / Network extender / GigE / 2 ports / up to 200 m / TAA Compliant | TI-BE200
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Network extender |
| Form Factor | Wall mountable |
| Networking | Networking |
| Ports Qty | 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Data Transfer Rate | 1 Gbps |
| MAC Address Table Size | 2K entries |
| Max Transfer Distance | 200 m |
| Features | Half duplex mode, full duplex mode, 1Mbit packet buffer, 4KV Surge protection, 9 KB Jumbo Frame, outdoor enclosure |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3bt |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE++ input) - RJ-45 female - 60 W ¦ 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE++ output) - RJ-45 female - 60 W ¦ 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE+ output) - RJ-45 female - 30 W |
| Miscellaneous | Miscellaneous |
| Included Accessories | Mounting screws, wrench, 3 x cable glands |
| Mounting Kit | Included |
| Compliant Standards | IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP67, NDAA |
| TAA Compliant | Yes |
| Power | Power |
| Power Over Ethernet (PoE) | PoE++ |
| Dimensions & Weight | Dimensions & Weight |
| Width | 16.7 cm |
| Depth | 7.4 cm |
| Height | 4.4 cm |
| Weight | 364 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
Features - Trendnet - TI-BE200
More Details
Product Code
04:450079
EAN Code
0710931162394
Manufacturer
Trendnet
