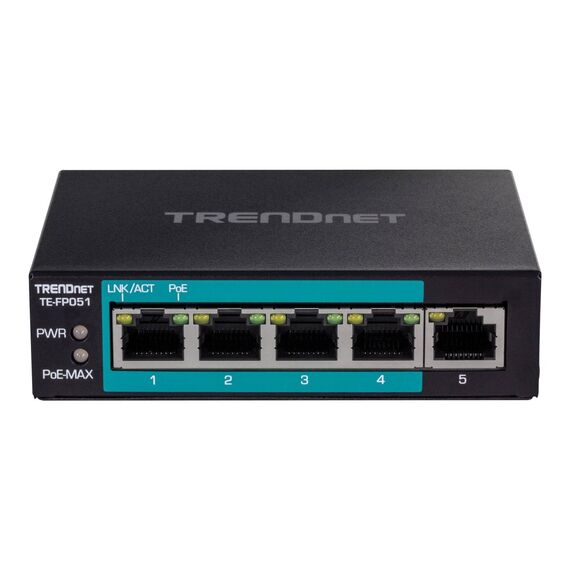

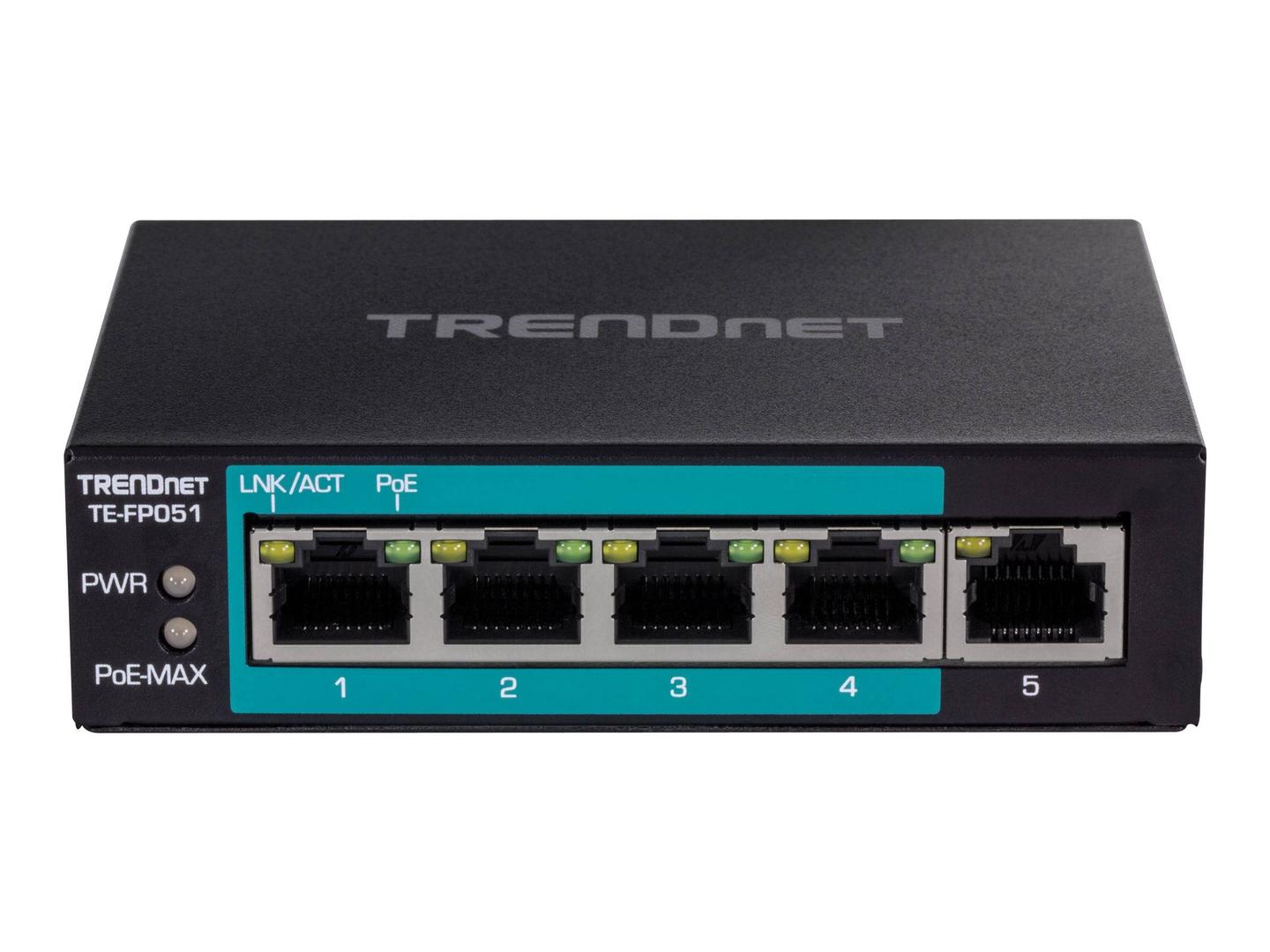

TRENDnet TE-FP051 / Switch / unmanaged / 4 x 10/100 (PoE+) + 1 x 10/100 / desktop, wall-mountable / PoE+ (60 W) | TE-FP051
Please sign in so that we can notify you about a reply
Product Features
- PoE+ power
A 60W PoE power budget supports up to four Power over Ethernet devices. - Fast Ethernet
Five Fast Ethernet ports provide a 1Gbps switching capacity to support edge network installations. - Long range PoE+ switch
Extend PoE+ signal up to 250m (820 ft.) at 10Mbps for long distance PoE installations by enabling the DIP switch. - LED indicators
LED indicators on this long distance PoE switch convey PoE and port status.
Special Features
- Easy installation
- 4 x fast Ethernet PoE+ ports and 1 x fast Ethernet port
- Enable the DIP switch to extend PoE+ signal up to 250m (820ft.) at 10Mbps
- 1Gbps switching capacity
- 60W PoE budget
- Wall mountable design
- Sturdy metal switch
- Use with TRENDnet's PoE splitter to network and power non-PoE devices
Product Specification
| Device Type | Switch - 5 ports - unmanaged |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | Fast Ethernet |
| Ports | 4 x 10/100 (PoE+) + 1 x 10/100 |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 60 W |
| Performance | Switch fabric speed: 1 Gbps ¦ Forwarding performance (64-byte packet size): 0.744 Mpps |
| Capacity | Buffer memory (kBytes): 56 |
| MAC Address Table Size | 1K entries |
| Features | Half duplex mode, full duplex mode, over-current protection, short circuit protection, built-in DIP switch, metal housing, extend mode |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 4 x 100Base-TX RJ-45 PoE+ ¦ 1 x 100Base-TX RJ-45 |
| Power | Power |
| Power Device | External power adapter |
| Power Provided | 48 V - 1.35 A |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 4.8 Watt |
| Miscellaneous | Miscellaneous |
| MTBF | 612,220 hours |
| Compliant Standards | FCC |
| Dimensions & Weight | Dimensions & Weight |
| Width | 10.5 cm |
| Depth | 8.3 cm |
| Height | 2.8 cm |
| Weight | 200 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | Up to 95% (non-condensing) |
Features - Trendnet - TE-FP051
General
5-Port
More Details
Product Code
04:399717
EAN Code
0710931161984
Manufacturer
Trendnet
