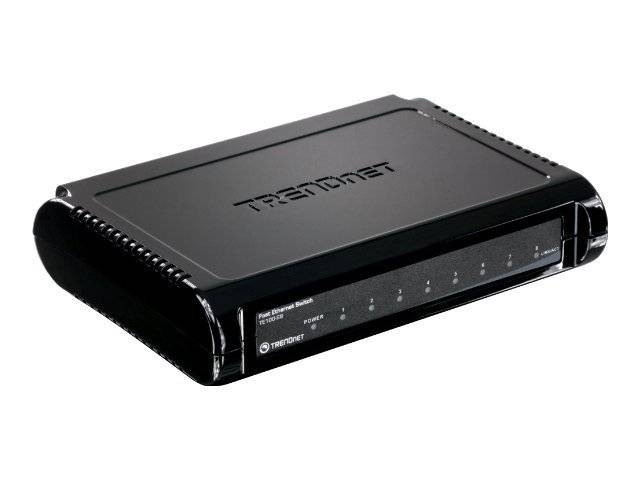

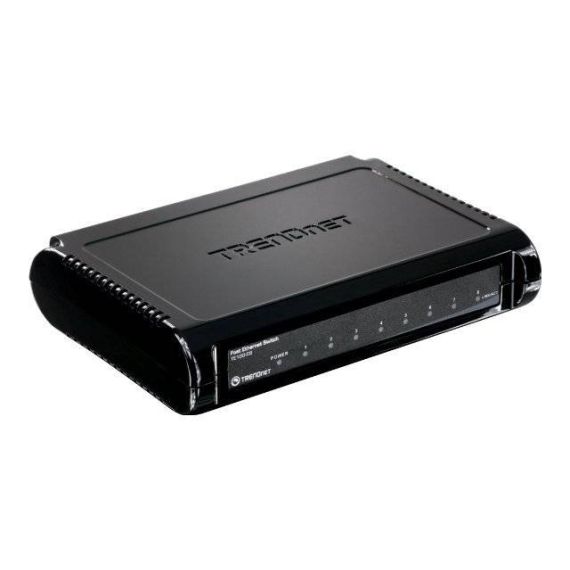

TRENDnet TE100 S8 / Switch / 8 x 10/100 / desktop | TE100-S8
TE100-S8
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- Build a reliable Fast Ethernet network in minutes
- Easy Plug and Play installation
- Auto-Negotiation optimizes networking speeds for all 8 ports
- 8 10/100Mbps Auto-Negotiation, Auto-MDIX Fast Ethernet RJ-45 ports
- Compliant with IEEE 802.3 / IEEE 802.3u standards
- IEEE 802.3x Flow Control support
- Provide 1K MAC address entries
- Compliant with Windows, Linux, and Mac Operating Systems
- Store-and-Forward Switching method
- Non-blocking Architecture
- Diagnostic LEDs
- Plug & Play
Product Specification
| Device Type | Switch - 8 ports |
| Enclosure Type | Desktop |
| Subtype | Fast Ethernet |
| Ports | 8 x 10/100 |
| Performance | Switching fabric bandwidth: 1.6 Gbps |
| MAC Address Table Size | 1K entries |
| Features | Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, GREENnet technology |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az |
| RAM | 56 KB |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 8 x 100Base-TX RJ-45 |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 1.4 Watt |
| Miscellaneous | Miscellaneous |
| Compliant Standards | Plug and Play, FCC |
| Dimensions & Weight | Dimensions & Weight |
| Width | 14 cm |
| Depth | 7.5 cm |
| Height | 2.8 cm |
| Weight | 126 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 90% (non-condensing) |
Features - Trendnet - TE100-S8
More Details
Product Code
04:190281
EAN Code
0710931204186
Manufacturer
Trendnet
