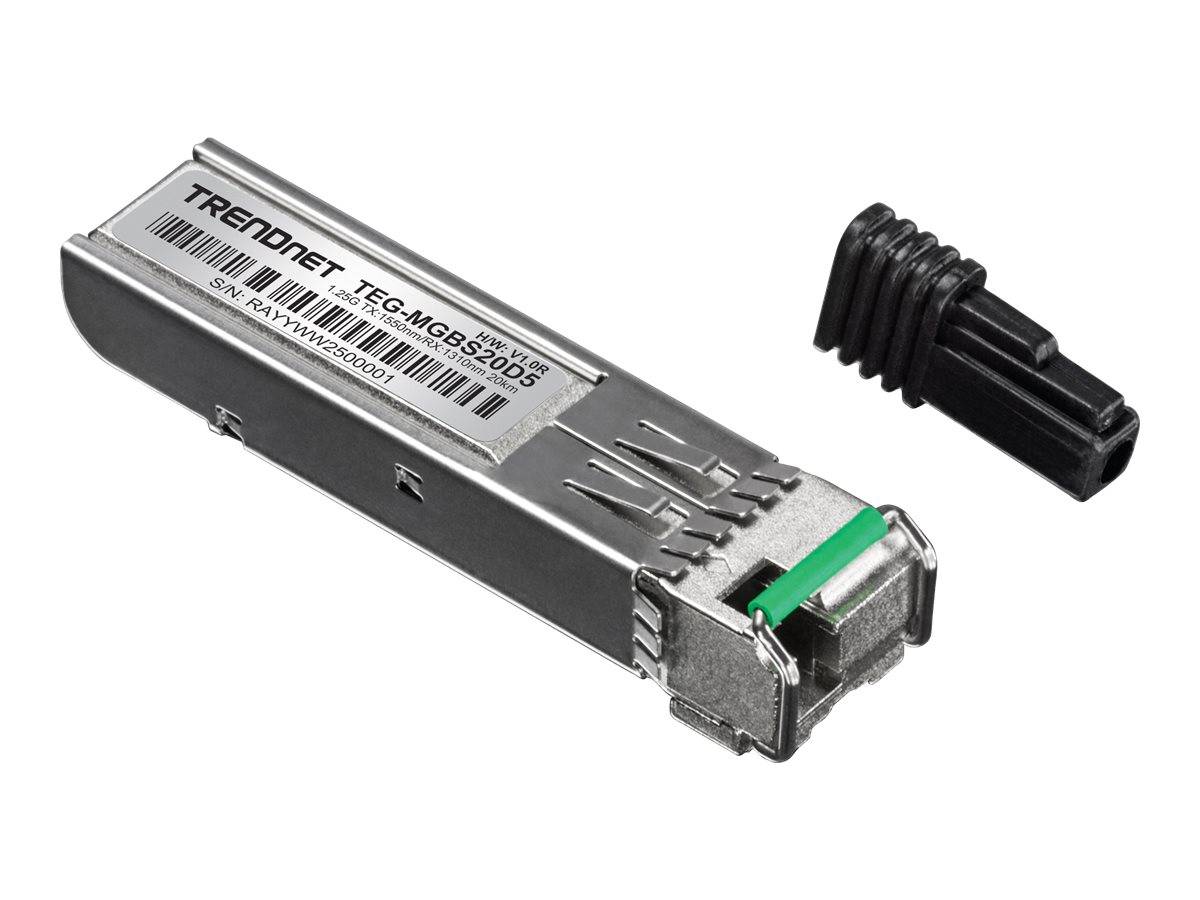

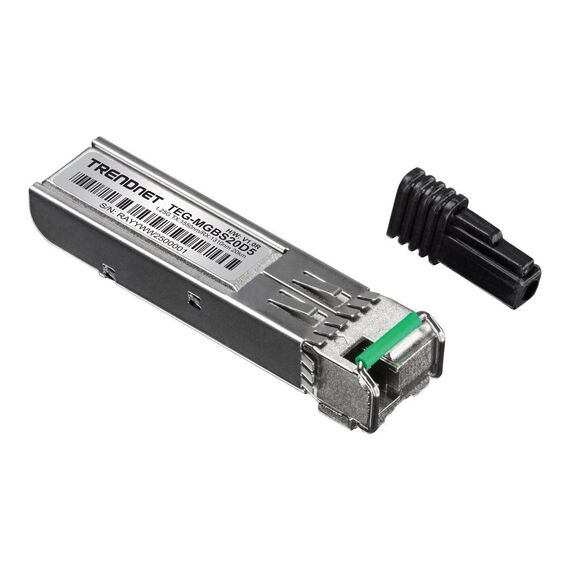

TRENDnet TEG MGBS20D5 / SFP (mini-GBIC) transceiver module / GigE / 1000Base-LX, Fibre Channel / LC single-mode / up to 20 km / 1550 (TX) / 1310 (RX) nm | TEG-MGBS20D5
Please sign in so that we can notify you about a reply
Special Features
- Must pair with TEG-MGBS20D3 or other compatible module
- Compliant with IEEE 802.3z Gigabit Ethernet
- ANSI Fiber Channel compliant
- Compliant with Small Form-Factor Pluggable (SFP) Multi-Source Agreement (MSA) ports
- Supports data rate of up to 1.25 Gbps
- Transmission distance of up to 20 km (12.4 miles)
- Metal Enclosure with low Electromagnetic Interference (EMI) design
- Simplex LC optical interface
- Hot pluggable
- Low power consumption
Product Specification
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-LX, Fibre Channel |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1.25 Gbps |
| Optical Wave Length | 1550 (TX) / 1310 (RX) nm |
| Max Transfer Distance | 20 km |
| Features | Hot swap module replacement |
| Compliant Standards | IEEE 802.3z |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 1000Base-LX - LC single-mode female |
| Miscellaneous | Miscellaneous |
| Compliant Standards | FCC, Laser Class 1, MSA |
| Power | Power |
| Power Consumption Operational | 0.8 Watt |
| Dimensions & Weight | Dimensions & Weight |
| Width | 1.3 cm |
| Depth | 5.7 cm |
| Height | 1.2 cm |
| Weight | 18 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 0 - 85% (non-condensing) |
Features - Trendnet - TEG-MGBS20D5
More Details
Product Code
04:195374
EAN Code
0710931502022
Manufacturer
Trendnet
