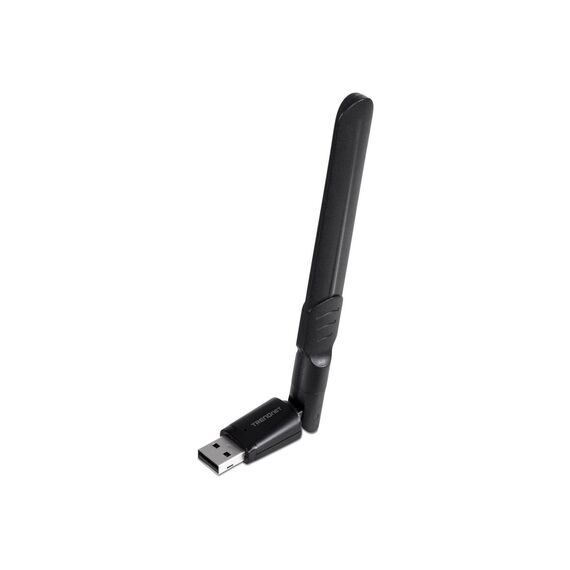

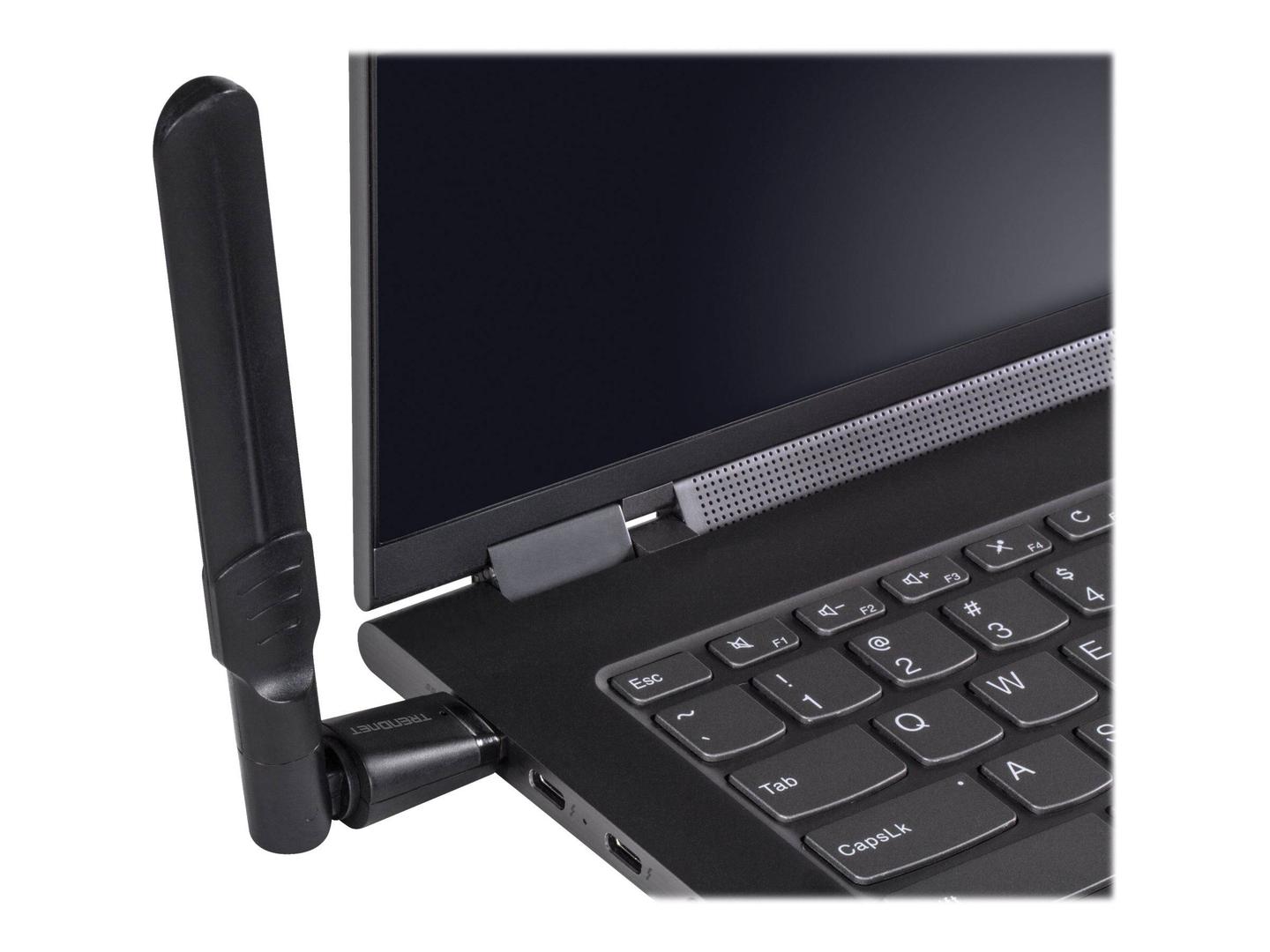

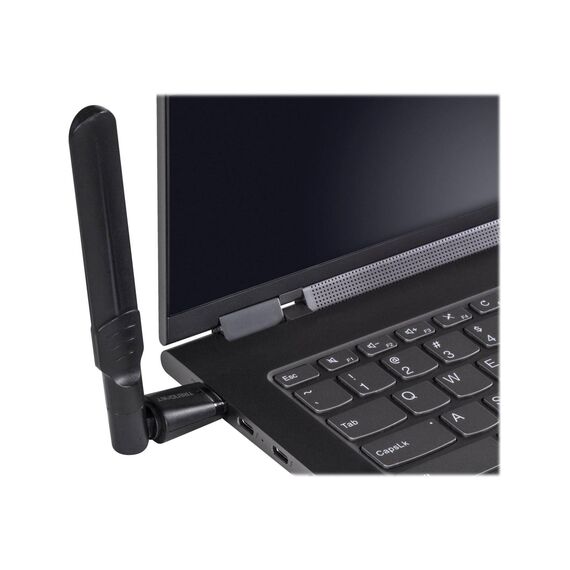

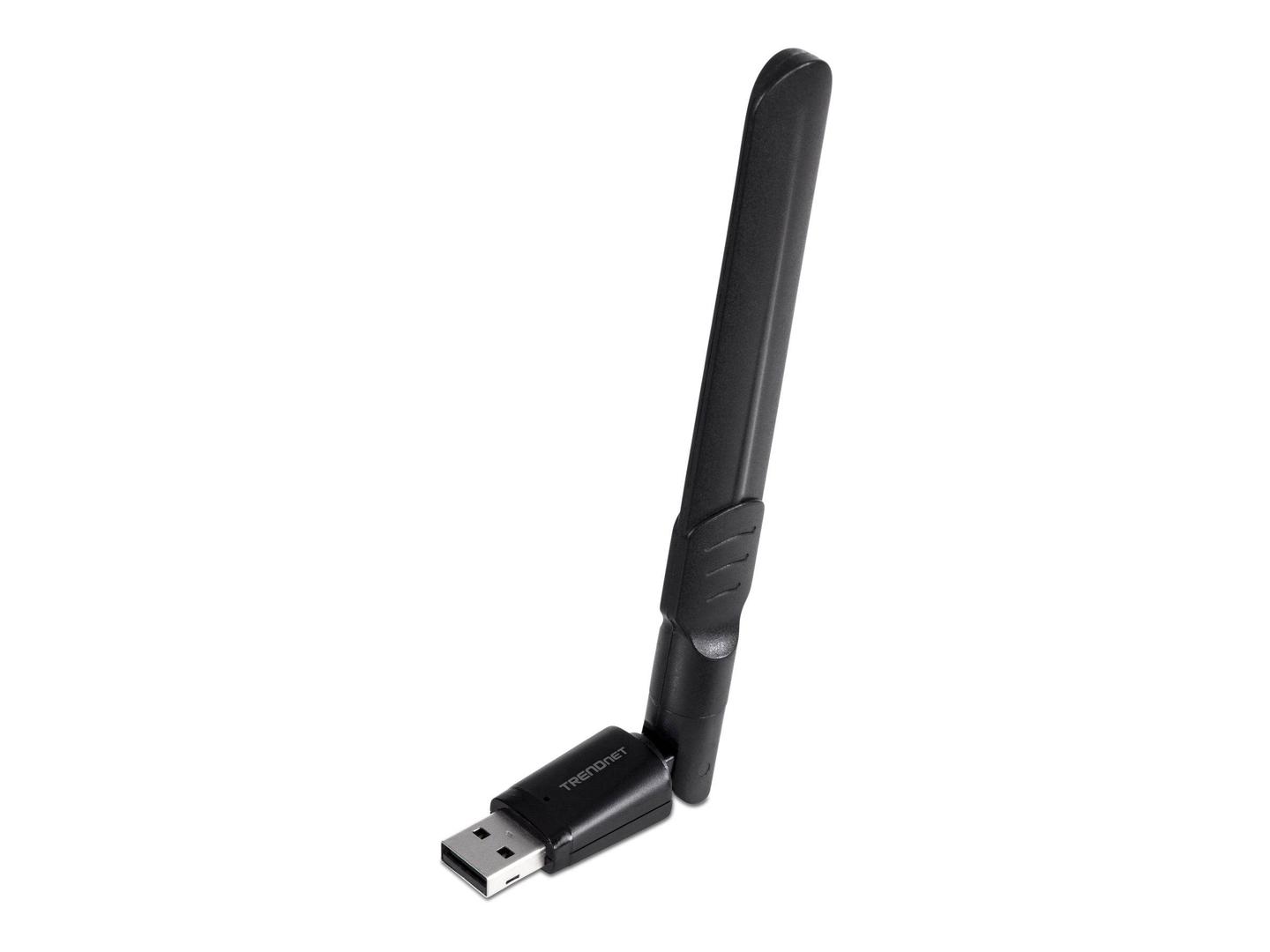

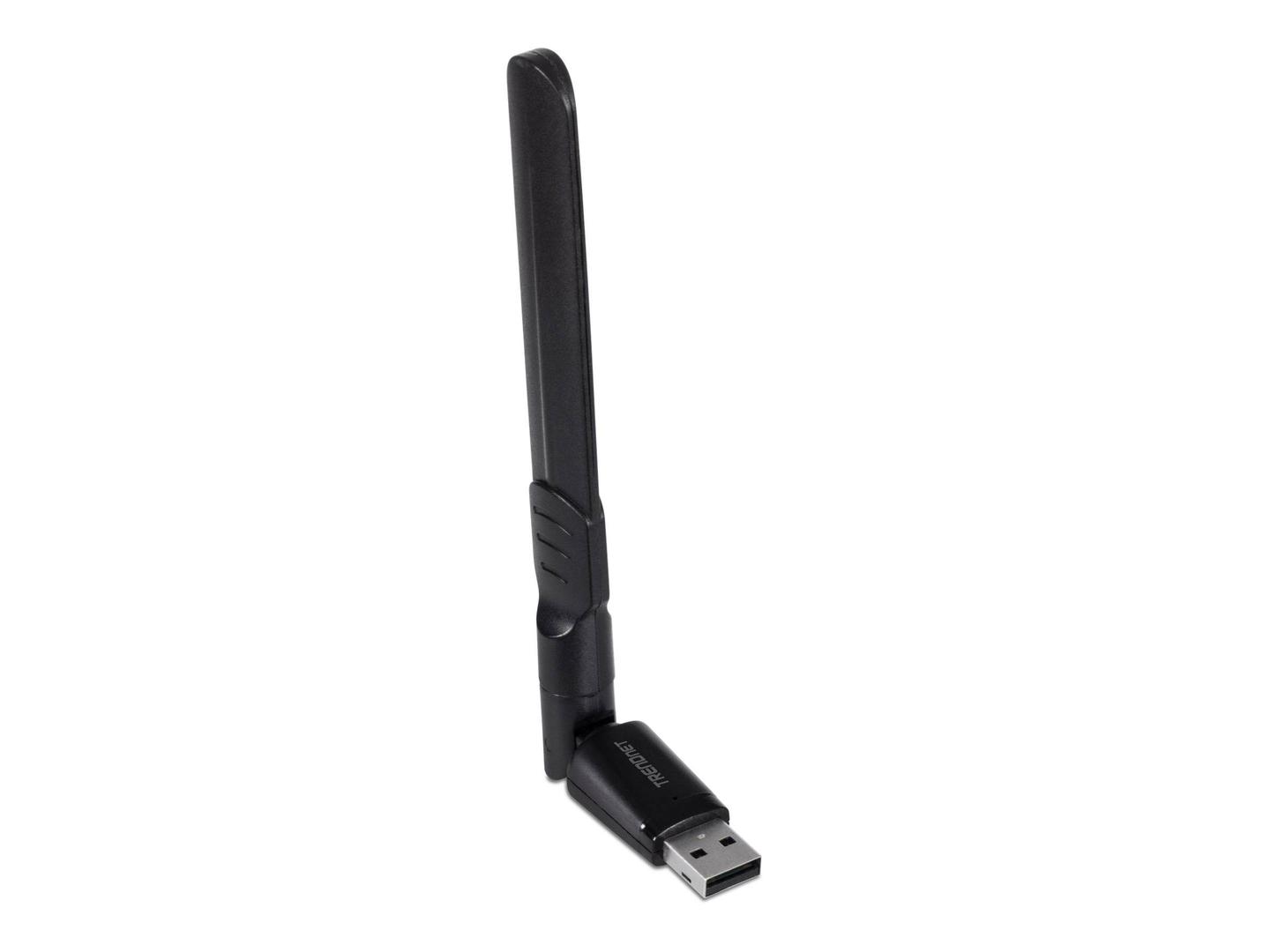

TRENDnet TEW-805UBH / Version v1.0R / network adapter / USB 3.1 Gen 1 / 802.11ac | TEW-805UBH
TEW-805UBH
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Easy setup
Get up and running in minutes with the intuitive guided setup. - AC1200 Wi-Fi
Connects a laptop or desktop computer to a high-speed Wi-Fi AC867 or Wi-Fi N300 network. - Wave 2 MU-MIMO
Seamlessly stream video, download files, and play games with this Wave 2 MU-MIMO wireless AC adapter. - High-gain antenna
Adjustable high gain antenna increases wireless coverage and performance. - Wireless encryption
Supports up to WPA2 encryption.
Special Features
- Quick and easy setup
- Adjustable high-gain external antenna
- High speed Wi-Fi AC1200 Wave 2 MU-MIMO adapter
- Selectable Wi-Fi AC (867Mbps) or Wi-Fi N (300Mbps) radios
- Dual band support for 2.4 GHz and 5 GHz Wi-Fi networks
- Physical WPS button for ease of connectivity
- Upgrade your laptop or desktop to wireless AC
- WMM Quality of Service (QoS) data prioritization
- Supports Windows and Mac operating systems
- LED indicators
Product Specification
| Device Type | Network adapter |
| Form Factor | External |
| Interface (Bus) Type | USB 3.1 Gen 1 |
| Networking | Networking |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Data Transfer Rate | 867 Mbps |
| Performance | Maximum data rate (IEEE 802.11n): 300 Mbps ¦ Maximum data rate (IEEE 802.11ac): 867 Mbps |
| Line Coding Format | 128 QAM, DBPSK, DQPSK, CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM |
| Frequency Band | 2.4 GHz, 5 GHz |
| Features | Wi-Fi Multimedia (WMM) support, 2 MU-MIMO technology, Explicit Beamforming, WPS button |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.11ac |
| Aerial | Aerial |
| Antenna | External |
| Antenna Qty | 1 |
| Miscellaneous | Miscellaneous |
| Encryption Algorithm | AES, 128-bit WEP, 64-bit WEP, TKIP, WPA, WPA2, WPA2-PSK |
| Compliant Standards | ETSI, FCC |
| Power | Power |
| Power Consumption Operational | 2.26 Watt |
| Software / System Requirements | Software / System Requirements |
| Software Included | Driver |
| OS Required | Microsoft Windows 7 / 8 / 8.1 / 10, Apple MacOS X 10.9 - 10.15 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 1.75 cm |
| Depth | 1.75 cm |
| Height | 17.5 cm |
| Weight | 16 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 90% (non-condensing) |
Features - Trendnet - TEW-805UBH
More Details
Product Code
04:378490
EAN Code
0710931130997
Manufacturer
Trendnet
