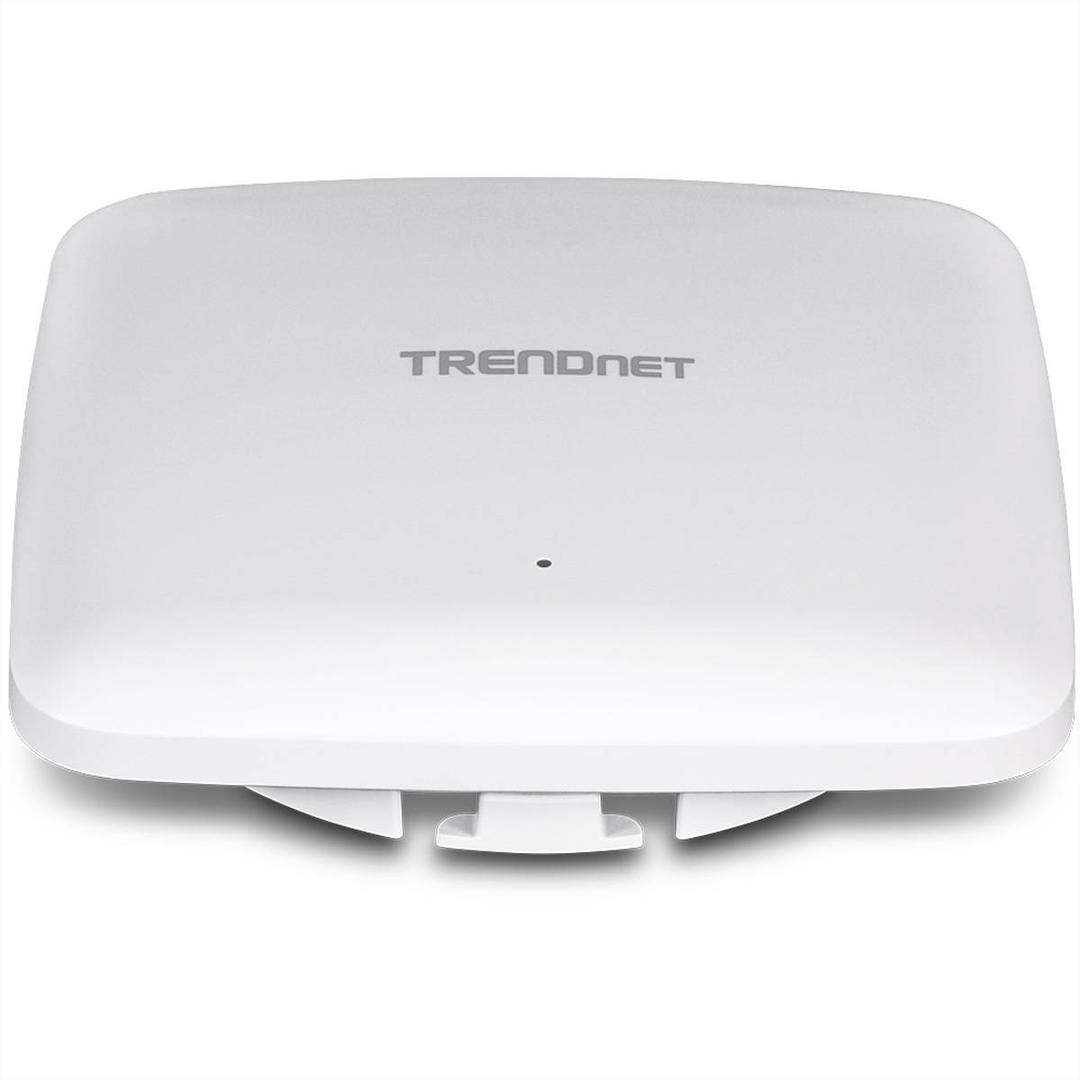

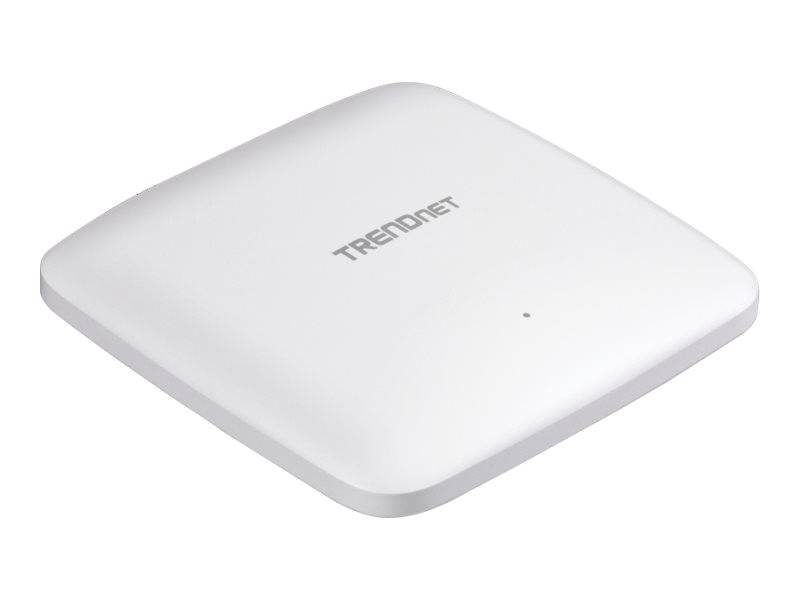

TRENDnet TEW-921DAP / Radio access point / Wi-Fi 6 / 2.4 GHz, 5 GHz / wall / ceiling mountable | TEW-921DAP
TEW-921DAP
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- AX1800 Wi-Fi 6
Two concurrent high-speed Wi-Fi 6 bands to maximize device networking speeds: 1201Mbps on 5GHz and 576Mbps on 2.4GHz. - Built for busy environments
MU-MIMO and OFDMA technologies process multiple data streams simultaneously, increasing real-time Wi-Fi performance when multiple devices access the network. - Access point flexibility
Supports Access Point, Client Bridge, WDS AP, WDS Bridge, WDS Station, and Repeater modes for multiple applications. - Band steering
Band steering alleviates network congestion by automatically directing wireless devices from the 2.4GHz band to the less congested 5GHz band. - WPA3 encryption
This Wi-Fi 6 access point supports wireless encryption of up to WPA3. - Low profile
The wireless AX access point's lowprofile housing design blends into most environments.
Special Features
- High-performance AX1800 PoE+ WiFi 6 access point
- OFDMA and MU-MIMO technology boosts performance in a busy environment
- Two concurrent Wi-Fi bands maximize device networking speeds
- AX1800 Dual Band: 1201Mbps (5GHz) + 567Mbps (2.4GHz) bands
- Access Point, Client Bridge, WDS AP, WDS Bridge, WDS Station, and Repeater modes
- Supports up to WPA3 encryption
- 1 x Gigabit PoE+ LAN port
- Captive portal for hotspot applications
- Low-profile housing blends into most environments
Product Specification
| Device Type | Radio access point |
| Width | 16 cm |
| Depth | 16 cm |
| Height | 3.4 cm |
| Weight | 486 g |
| Networking | Networking |
| Form Factor | Wall / ceiling mountable |
| Connectivity Technology | Wireless |
| Line Coding Format | DBPSK, DQPSK, CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, 1024 QAM, OFDMA, DSSS |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3 |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum throughput (5 GHz): 1201 Mbps ¦ Maximum throughput (2.4 GHz): 576 Mbps |
| Capacity | SSIDs per radio: 8 ¦ SSIDs total: 16 |
| Wi-Fi Rating | AX1800 |
| Features | VLAN support, IGMP snooping, traffic shaping, MAC address filtering, Spanning Tree Protocol (STP) support, event log, Quality of Service (QoS), Multiple SSID support, reset button, Captive Portal, MU-MIMO technology, band steering, WDS bridge, WDS access point, RSSI Threshold, bandwidth control per SSID, Air Time Fairness (ATF), WDS repeater mode, bridge mode |
| Encryption Algorithm | WPA, WPA2-PSK, WEP, WPA3 |
| Authentication Method | RADIUS, Radio Service Set ID (SSID) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3x, IEEE 802.11g, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11w, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ac Wave 2, IEEE 802.11ax |
| Aerial | Aerial |
| Antenna | Internal |
| Antenna Qty | 4 |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x 1000Base-T (PoE+) - RJ-45 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Mounting plate |
| Cables Included | 1 x network cable - 1.5 m |
| Compliant Standards | FCC |
| Power | Power |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 15 Watt |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
Features - Trendnet - TEW-921DAP
More Details
Product Code
04:399704
EAN Code
0710931131055
Manufacturer
Trendnet
