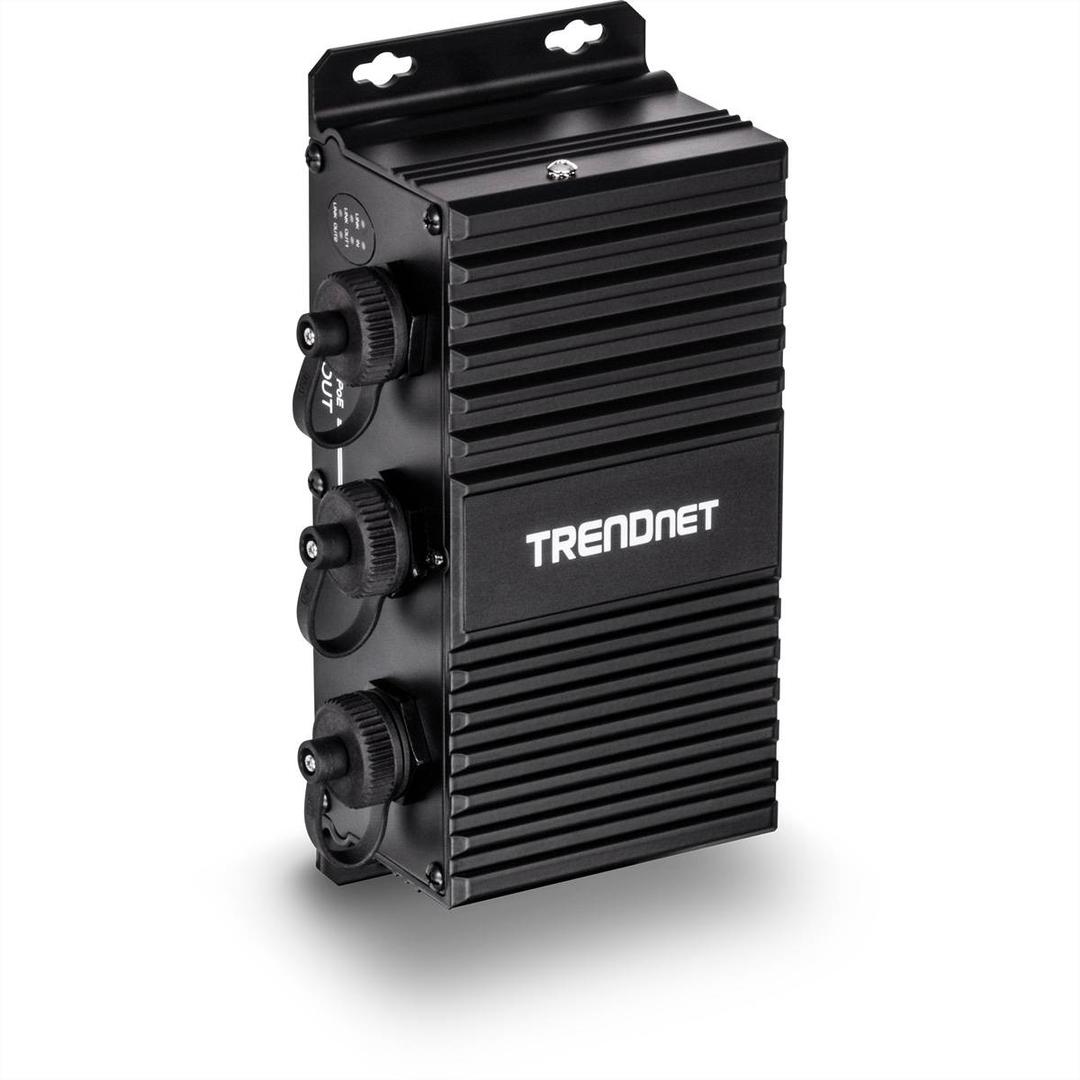

TRENDnet TI-EU120 / Network/power extender / GigE / 10Base-T, 100Base-TX, 1000Base-T | TI-EU120
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Network/power extender |
| Form Factor | Wall mountable |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Data Transfer Rate | 2 Gbps |
| MAC Address Table Size | 8K entries |
| Features | Full duplex mode, wall mountable, 1Mbit packet buffer, daisy-chaining support, 10 KB Jumbo Frame |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3bt (draft) |
| Expansion / Connectivity | Expansion / Connectivity |

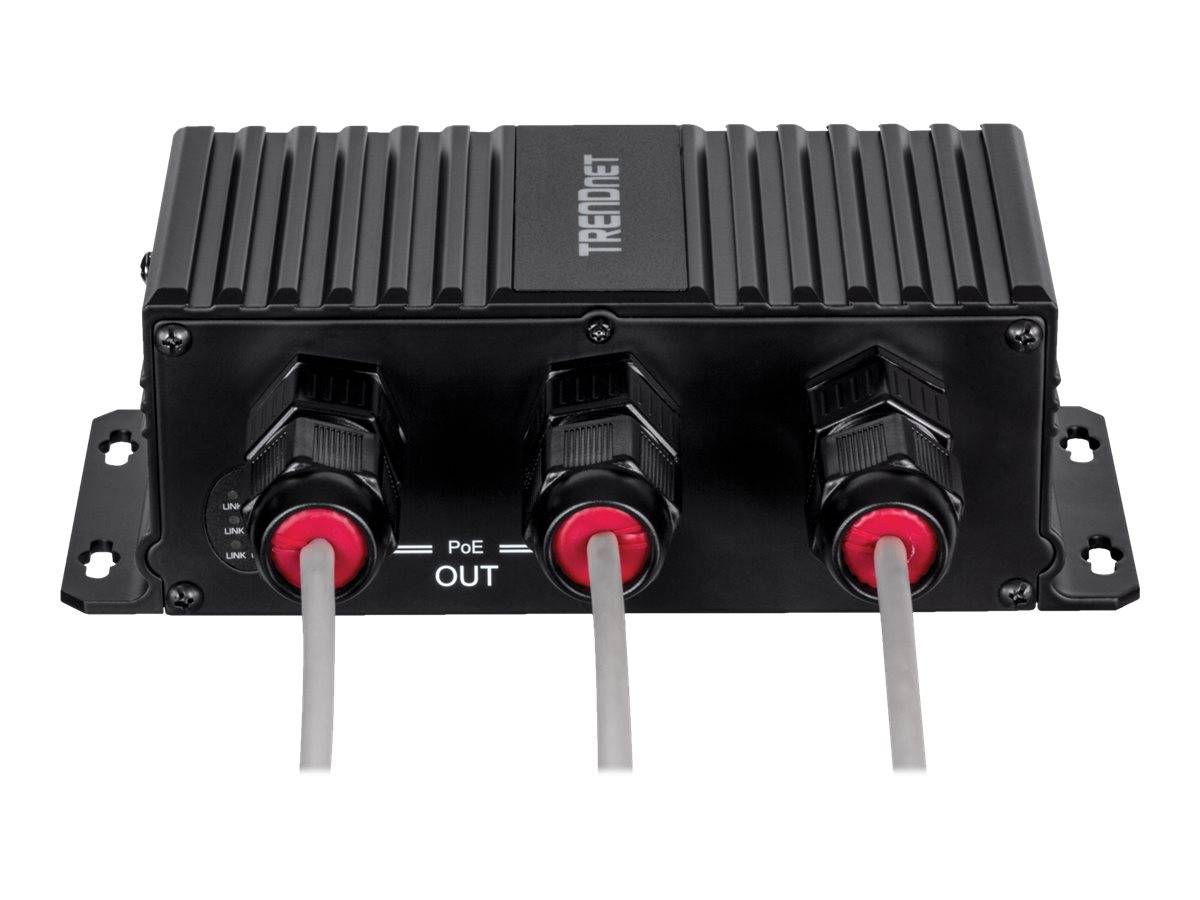

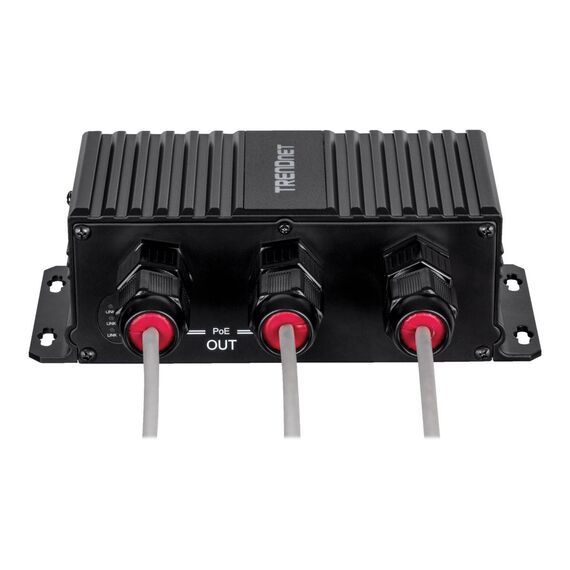

| Interfaces | 2 x Ethernet 1000Base-T (UPOE output) - RJ-45 female ¦ 1 x Ethernet 1000Base-T (UPOE input) - RJ-45 female |
| Miscellaneous | Miscellaneous |
| Included Accessories | Wall mounting kit |
| Mounting Kit | Included |
| Compliant Standards | FCC, EN 60950-1, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP67 |
| Power | Power |
| Power Over Ethernet (PoE) | UPOE |
| Dimensions & Weight | Dimensions & Weight |
| Width | 16.5 cm |
| Depth | 11.2 cm |
| Height | 6.2 cm |
| Weight | 834 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 95% (non-condensing) |
Features - Trendnet - TI-EU120
More Details
Product Code
04:253897
EAN Code
0710931161212
Manufacturer
Trendnet
