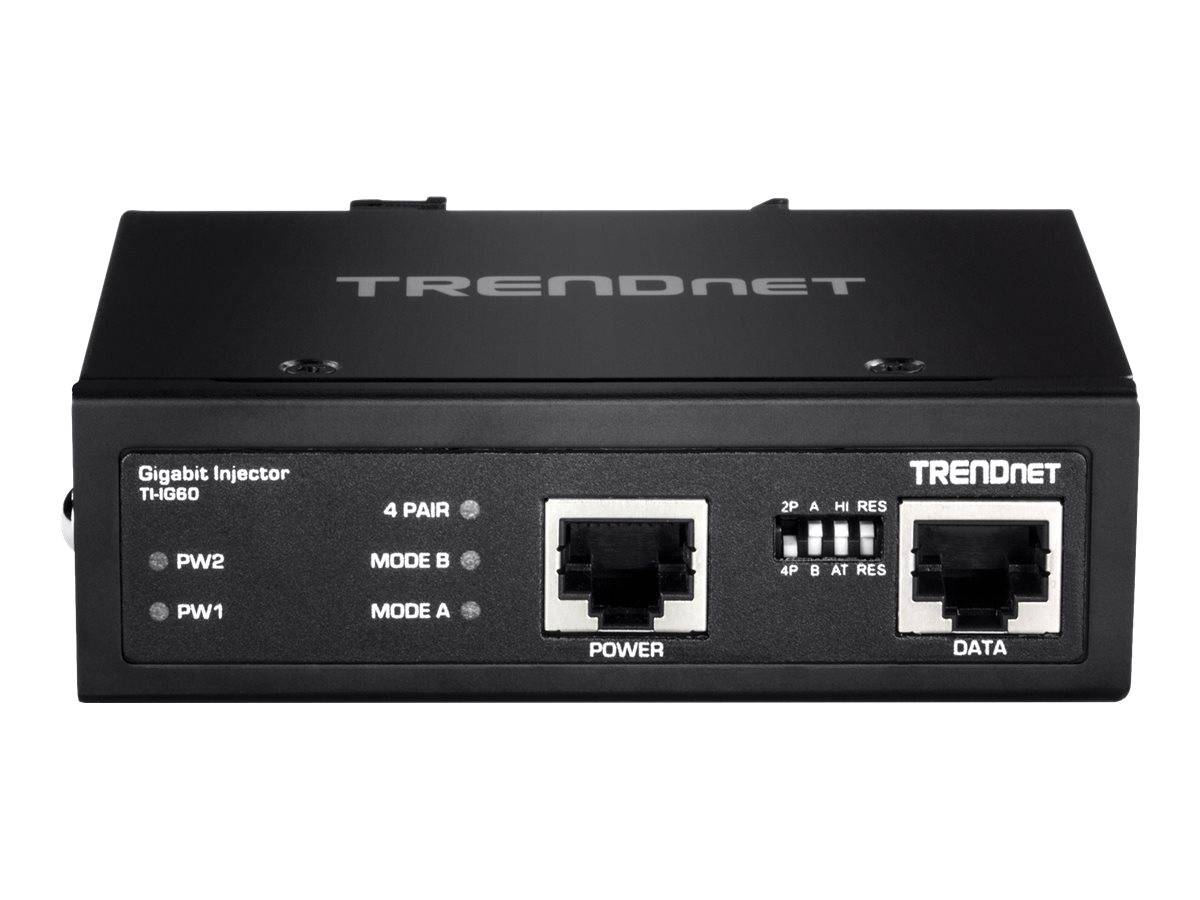

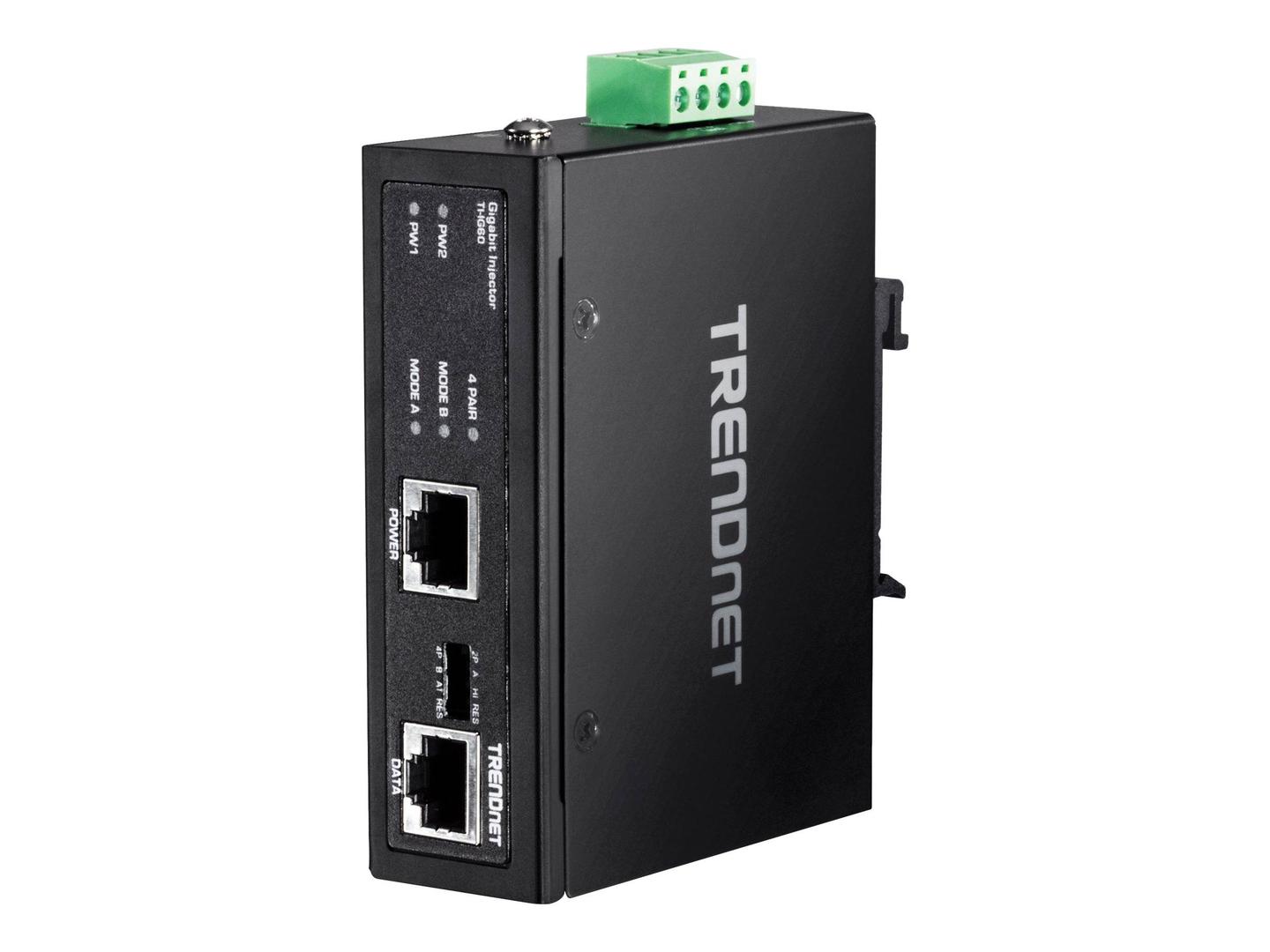

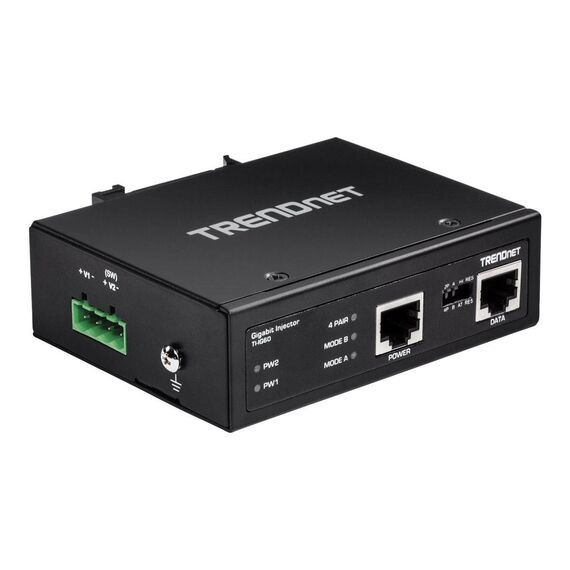

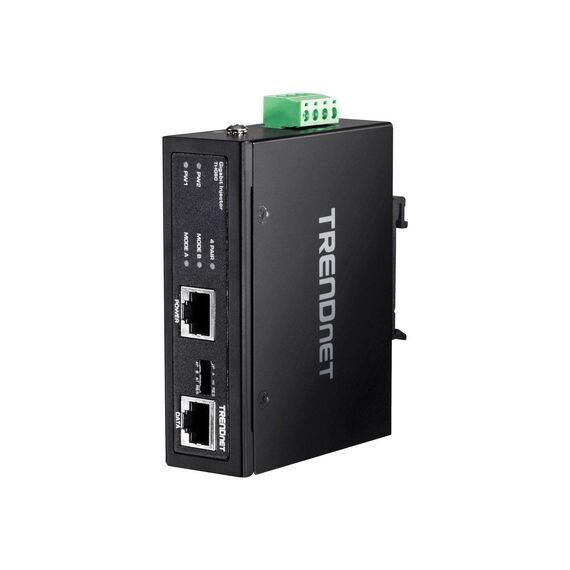

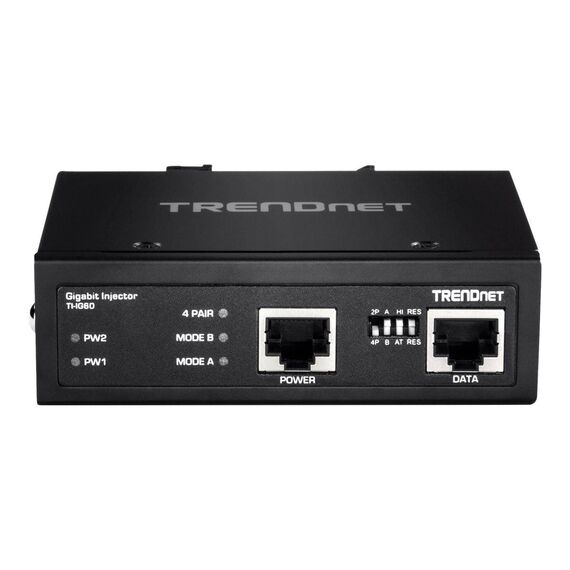

TRENDnet TI-IG60 / PoE injector (DIN rail mountable) / 60 Watt / output connectors: 1 | TI-IG60
Please sign in so that we can notify you about a reply
Special Features
- Hardened IP30 rated Gigabit PoE Injector
- Supplies PoE (15 W), PoE + (30 W), high power PoE+ (36 W), or 60 Watt PoE power
- Network a PoE device located up to 100 meters (328 ft.) away
- Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
- Dual redundant power inputs with overload current protection
Product Specification
| Device Type | PoE injector - DIN rail mountable |
| Power Over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Power Device | Power Device |
| Input Voltage Range | DC 48 - 56 V |
| Input Connectors | 1 x 4 pin terminal block |
| Power Consumption Operational | 72 Watt |
| Power Output Connectors Details | 1 x RJ-45 |
| Power Capacity | 60 Watt |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Gigabit LAN - RJ-45 |
| Miscellaneous | Miscellaneous |

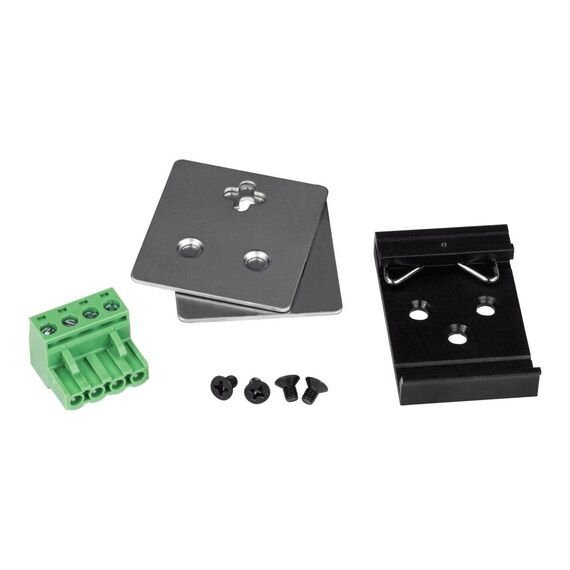

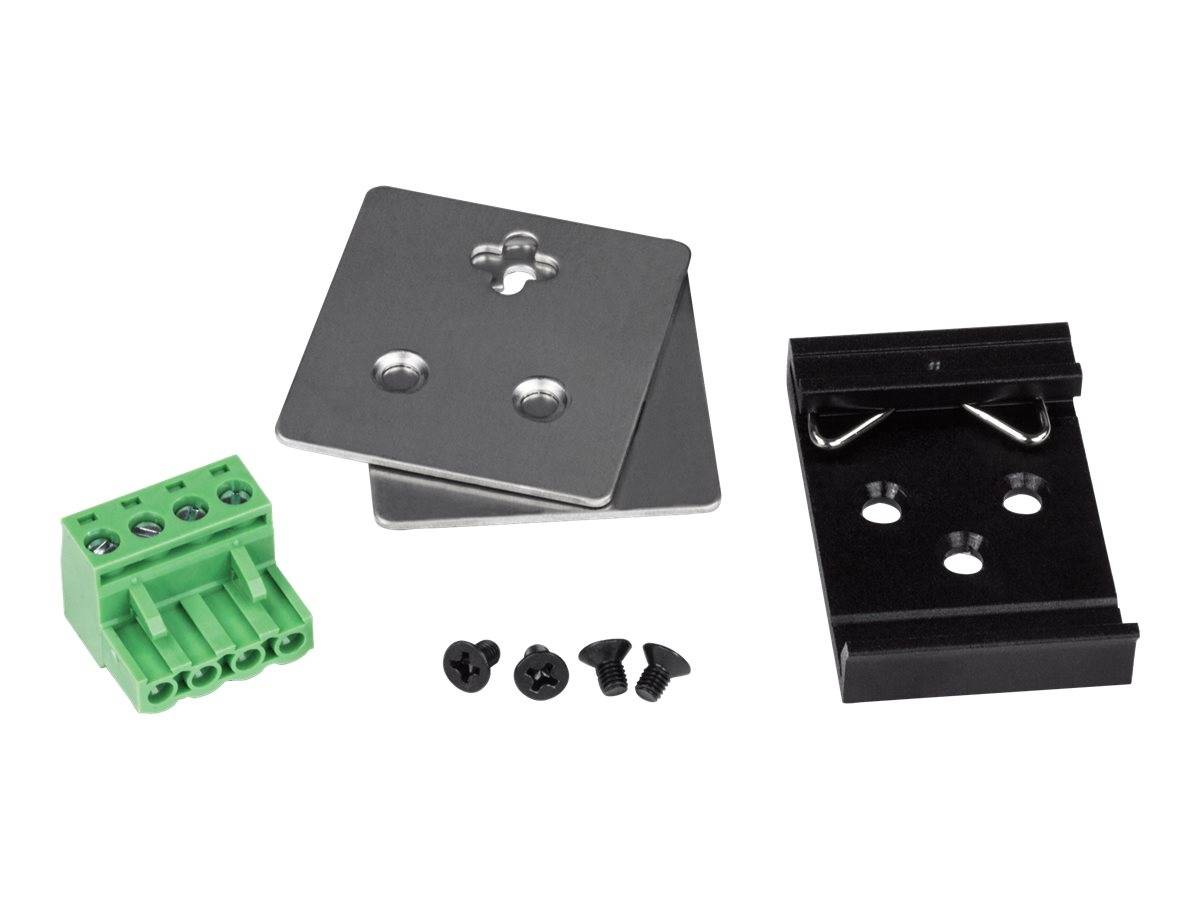

| Included Accessories | Wall mounting bracket |
| MTBF | 510,304 hours |
| Features | Wall mountable, full duplex support, over current protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, EN55024, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, EN 55011, FCC Part 15 B Class A, IP30, EN 55022 Class A |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 10.4 cm |
| Depth | 8.2 cm |
| Height | 3.2 cm |
| Weight | 138 g |
Features - Trendnet - TI-IG60
More Details
Product Code
04:190438
EAN Code
0710931160444
Manufacturer
Trendnet
