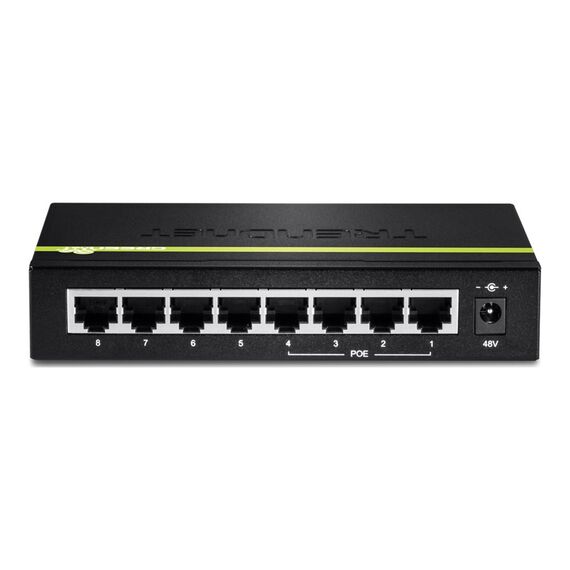

TRENDnet TPE-S44 / Switch / 4 x 10/100 (PoE) + 4 x 10/100 / desktop / PoE | TPE-S44

Special Features

Reduces equipment cost by delivering data and power over existing network cables

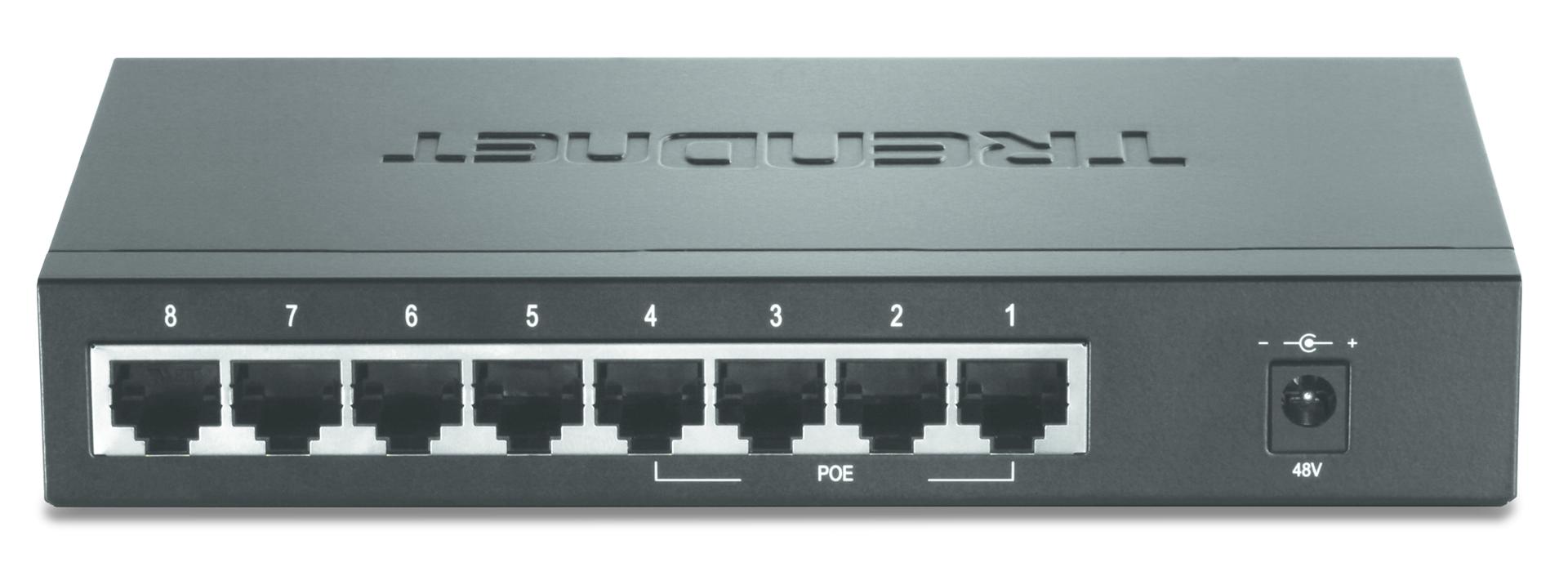

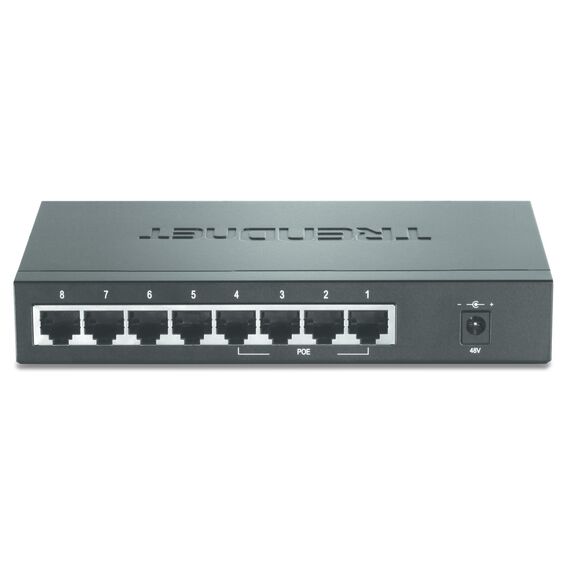

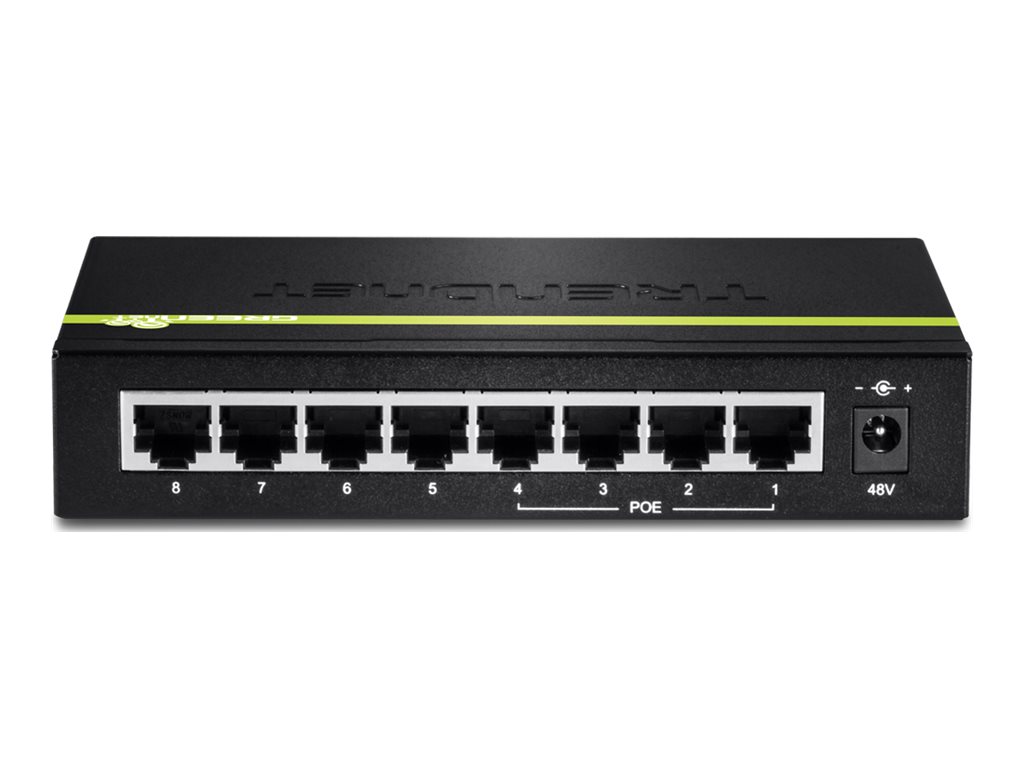

4 PoE (Port 1 ~ Port 4) and 4 standard 10/100Mbps ports
Flow Control for Full-Duplex mode
IEEE 802.3af Power over Ethernet (PoE) Standard Compliant
Supports PoE Power Maximum 15.4 watts for each POE port
Supports PoE Powered Device (PD) classification identify
Full Wire-Speed Non-Blocking Reception and Transmission
Store and Forward Switching Method
96Kbytes RAM Data Buffer and 1K entries MAC Address Table

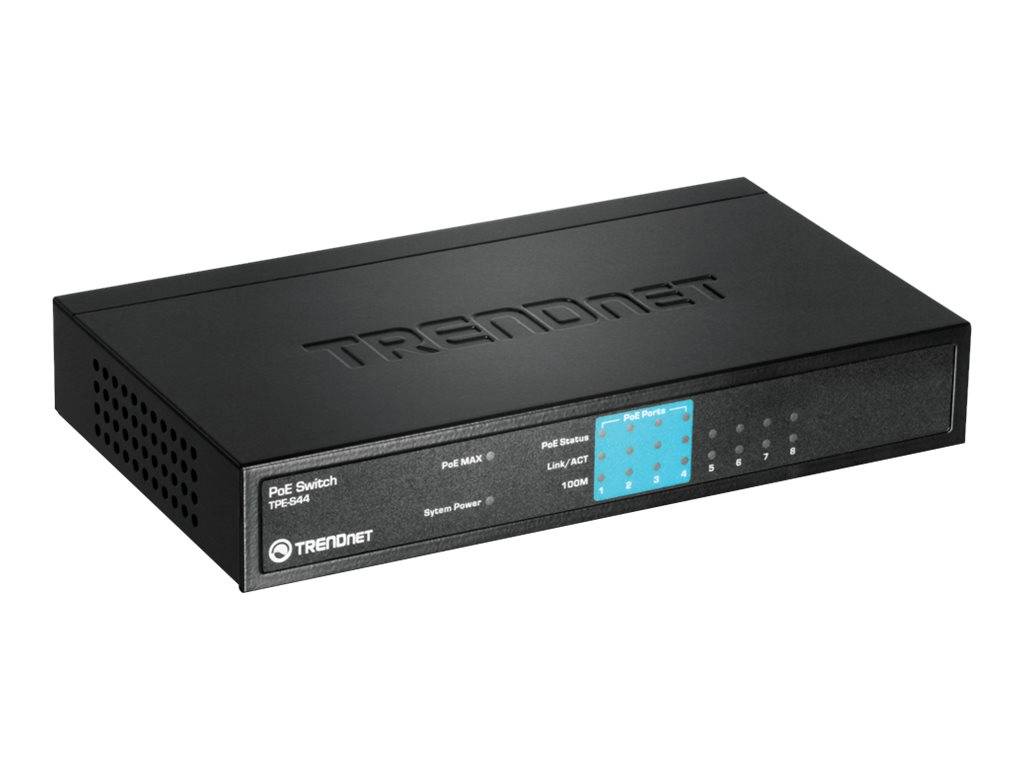

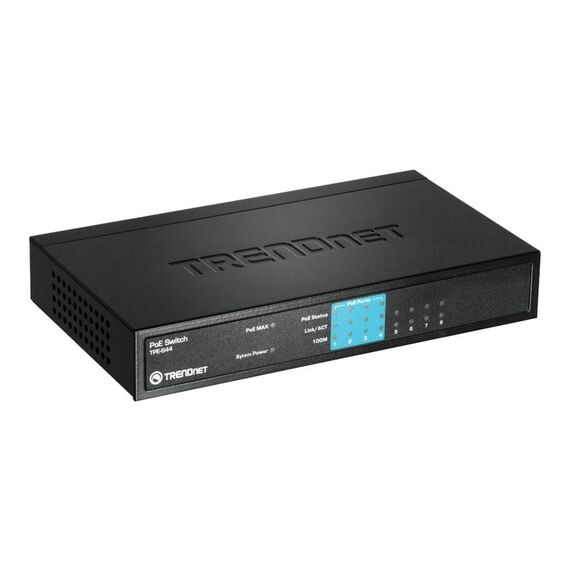

Extensive Diagnostic LEDs on the Front Panel
IEEE 802.3x Flow Control for Full-Duplex Mode; Back Pressure Flow Control for Half-Duplex Mode

Product Specification

Device Type	Switch - 8 ports
Enclosure Type	Desktop
Subtype	Fast Ethernet
Ports	4 x 10/100 (PoE) + 4 x 10/100
Power Over Ethernet (PoE)	PoE
Performance	Switching capacity: 1.6 Gbps
MAC Address Table Size	1K entries
Features	Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, PoE overcurrent protection, PoE circuit sorting protection
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3x

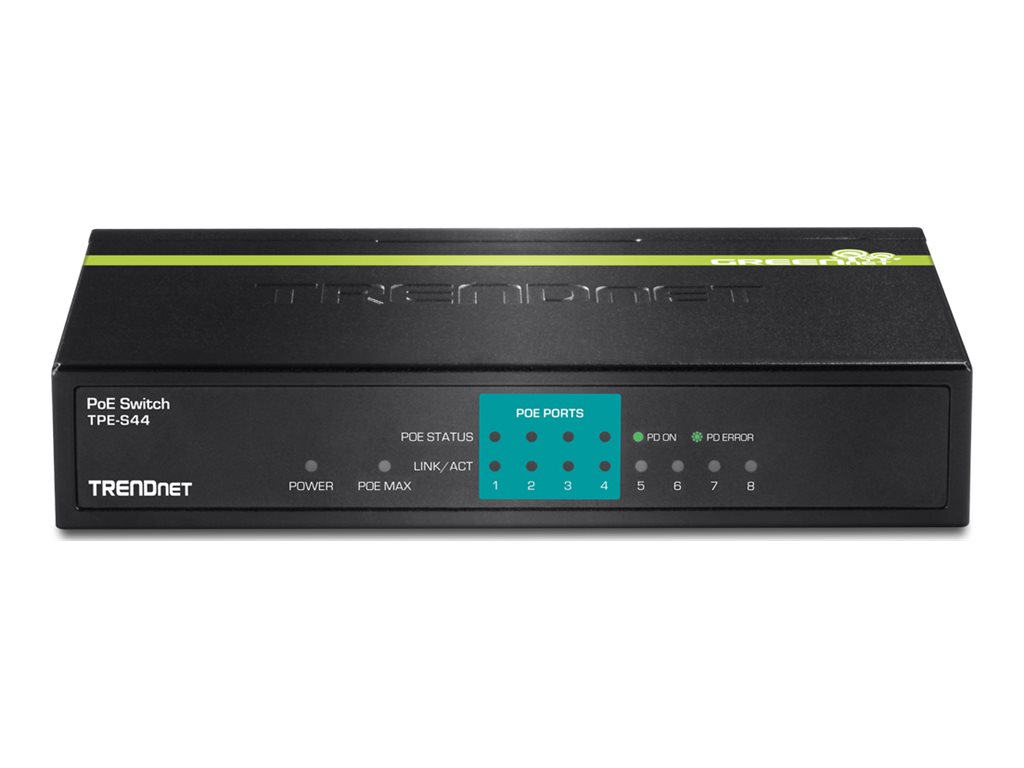

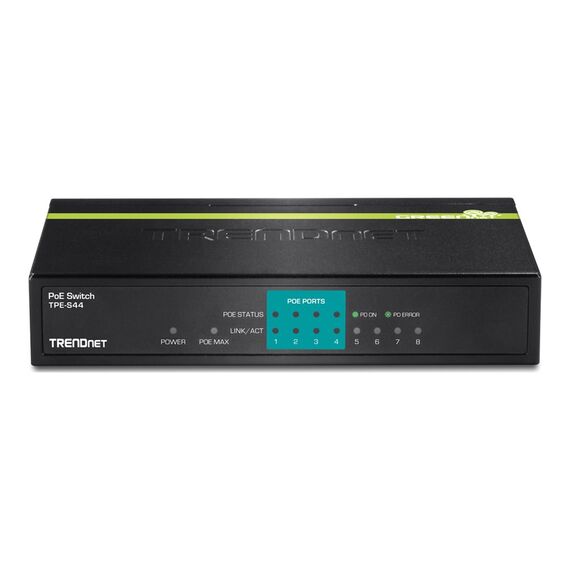

Status Indicators	Port status, power, link/activity
Expansion / Connectivity	Expansion / Connectivity
Interfaces	4 x 100Base-TX RJ-45 Â¦ 4 x 100Base-TX RJ-45 PoE - 15.4 W
Power	Power
Power Device	External power adapter
Power Consumption Operational	36.3 Watt
Miscellaneous	Miscellaneous
Compliant Standards	FCC
Dimensions & Weight	Dimensions & Weight
Width	17.1 cm
Depth	9.8 cm
Height	2.9 cm
Weight	430 g
Manufacturer Warranty	Manufacturer Warranty
Service & Support	Limited warranty - 3 years
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 Â°C
Max Operating Temperature	40 Â°C
Humidity Range Operating	10 - 90% (non-condensing)
Min Storage Temperature	-10 Â°C
Max Storage Temperature	70 Â°C
